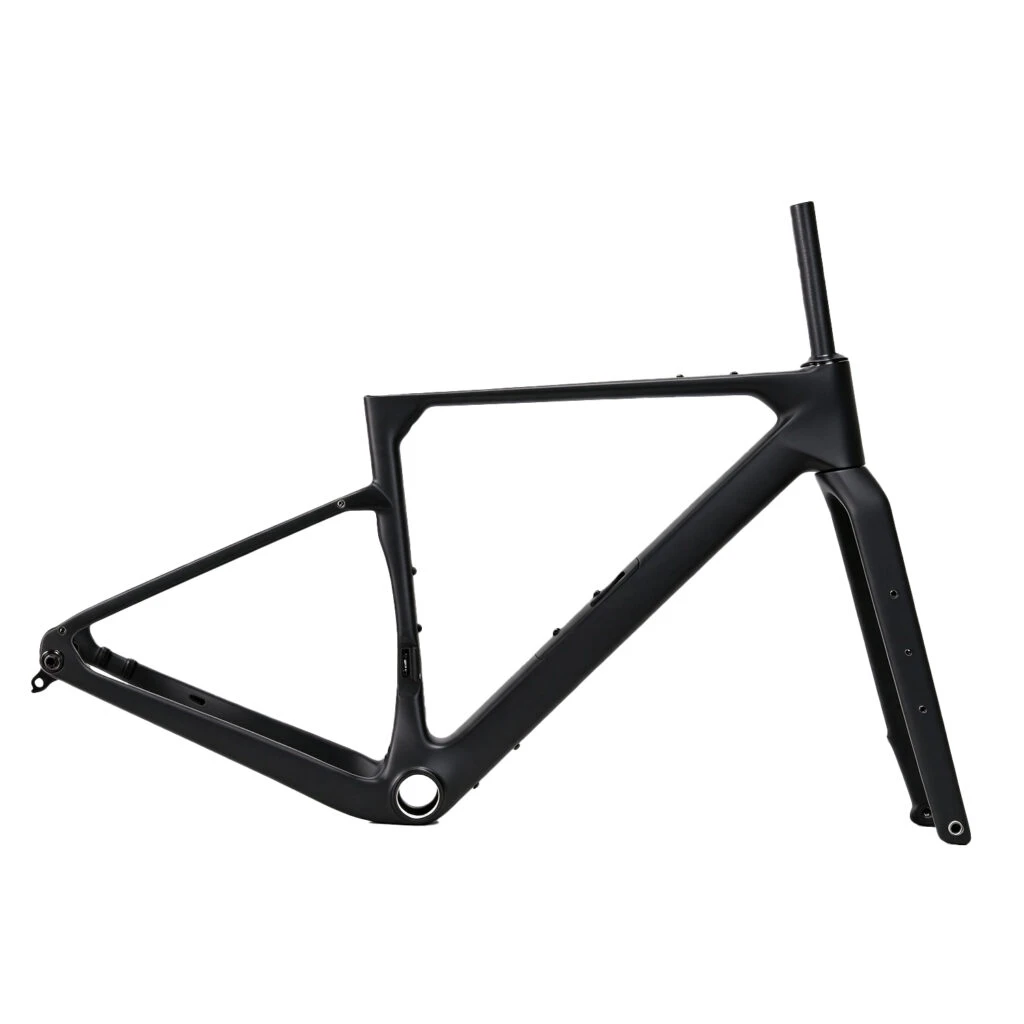

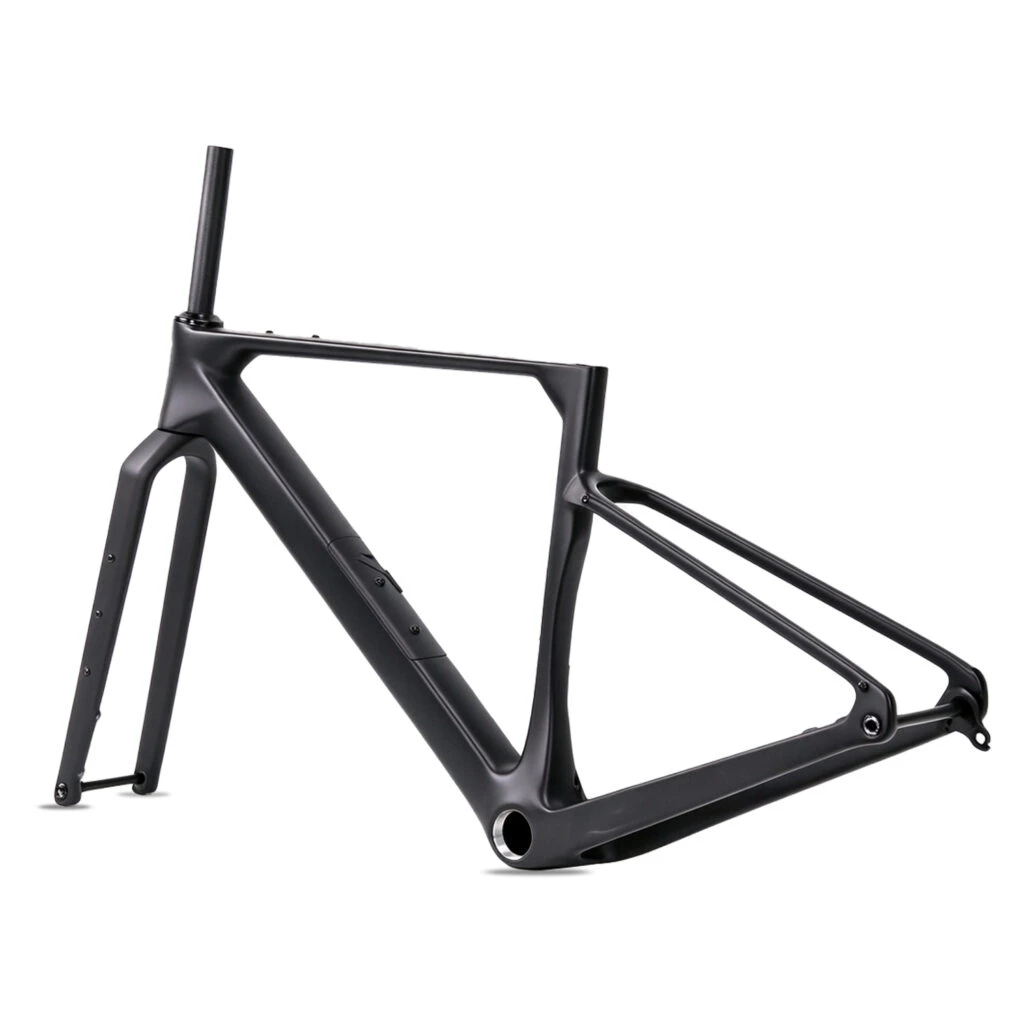

Carbon Gravel Bike Frameset
Heavy-Duty Carbon Construction: Engineered with full carbon fiber for heavy loads. Built for long-haul bikepacking and stable off-road adventures.
Reinforced Endurance Geometry: Delivers optimal frame stiffness and vibration damping. Ensures long-ride comfort on rugged gravel trails.
Versatile Cargo & Tire Compatibility: Fits ultra-wide gravel tires and multiple rack systems. Ready for off-road touring, gravel racing, and all-day exploration.
| Specification | Details |
| Carbon Material: | T1000 + T1100 Carbon Fiber |
| Model Number: | FM-GV208 |
| Available Sizes: | S / M / L / XL |
| Seatpost Diameter: | 27.2 mm |
| Headset Standard: | Top 1-1/2″ (52 mm) / Bottom 1-1/2″ (52 mm) |
| Bottom Bracket: | T47 Threaded, 85.5 mm Shell Width |
| Finish Options: | Glossy or Matte. |
| Cable Routing: | Fully Internal Cable Routing |
| Brake Type: | Flat-Mount Disc Brake, 160 mm Rotor |
| Thru-Axle Specifications: | Front 100 × 12 mm / Rear 142 × 12 mm |
| Rear Derailleur Hanger: | UDH (Universal Derailleur Hanger) |
| Maximum Tire Clearance: | 700 × 57C or 29 × 2.25″ |
| Drivetrain Compatibility: | Electronic Di2 and Mechanical Drivetrains |
| Weight: | Frame:1100±60g, Fork:460±15g |
| Note: | Weights are based on the matte black finish and exclude all accessories! |

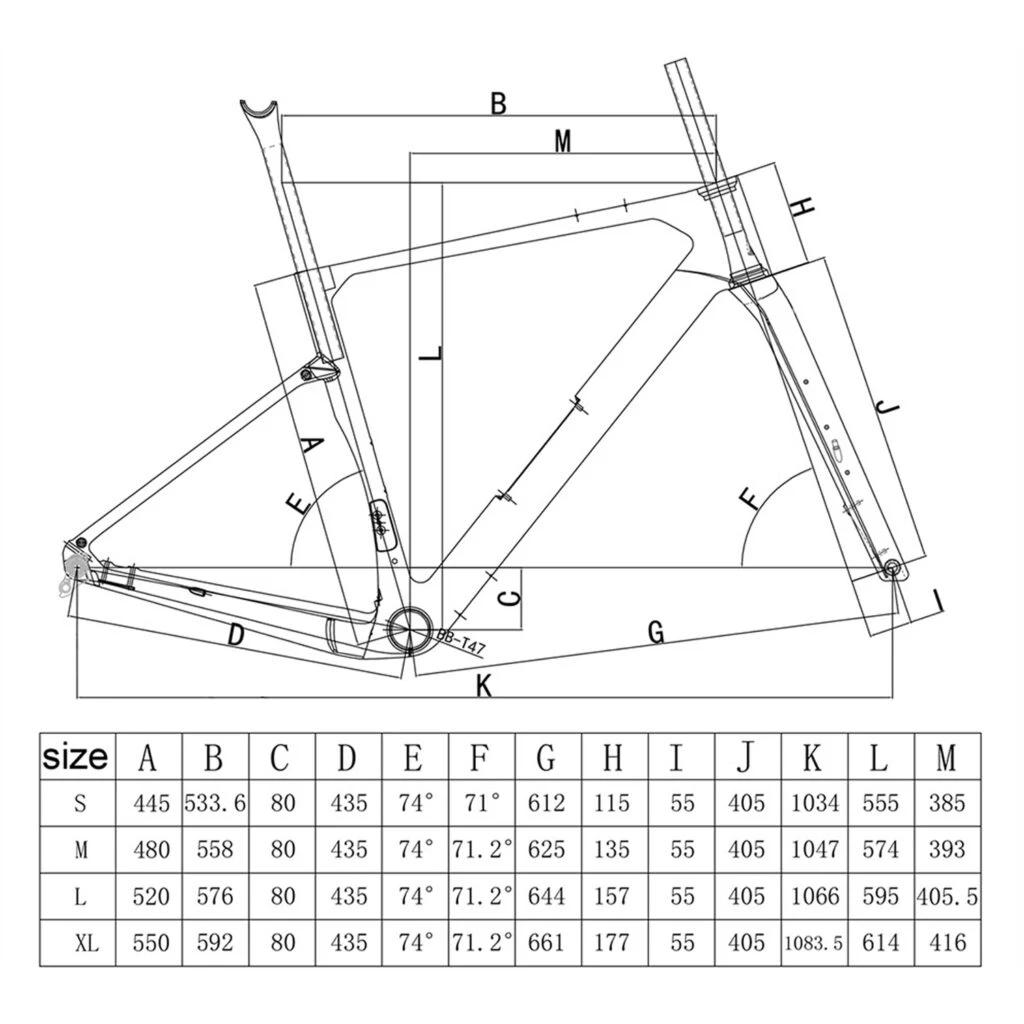

GV208 Aero Gravel Bike Frame Size
Aero-Optimized Gravel Geometry: Engineered across multiple sizes for maximum aerodynamic efficiency. Delivers a stable balance of straight-line speed and technical control on mixed terrain.
Lightweight High-Performance Construction: Features an ultralight carbon frameset built for endurance. Provides race-ready rigidity and all-terrain stability on rugged courses.

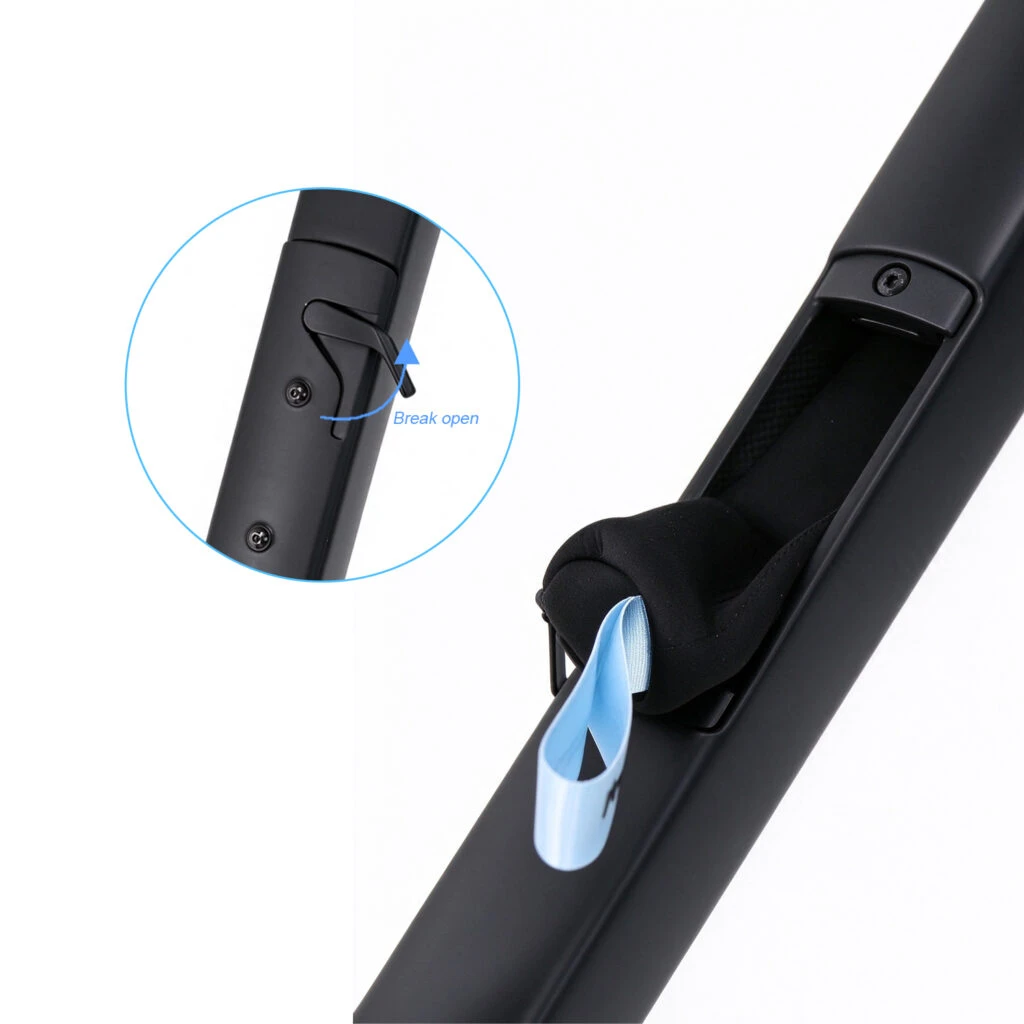

Down Tube Storage Box – Thoughtful design
Quick-Release Sealed Hatch: Features a one-handed latch mechanism for instant access. Includes a dedicated, shock-absorbing internal storage pouch.
Low Center of Gravity: Positions heavy tools near the bottom bracket. Lowers the overall center of gravity for improved handling and stability on rough terrain.
700*57C / 29er×2.25” Maximum Tire Clearance
Maximum Tire Clearance: Accommodates up to 700×57C or 29×2.25″ tires. Delivers superior traction and vibration damping on rugged gravel routes.
Enhanced Mud Clearance: Features generous frame spacing to prevent mud buildup. Maintains rolling efficiency and handling stability in severe off-road conditions.

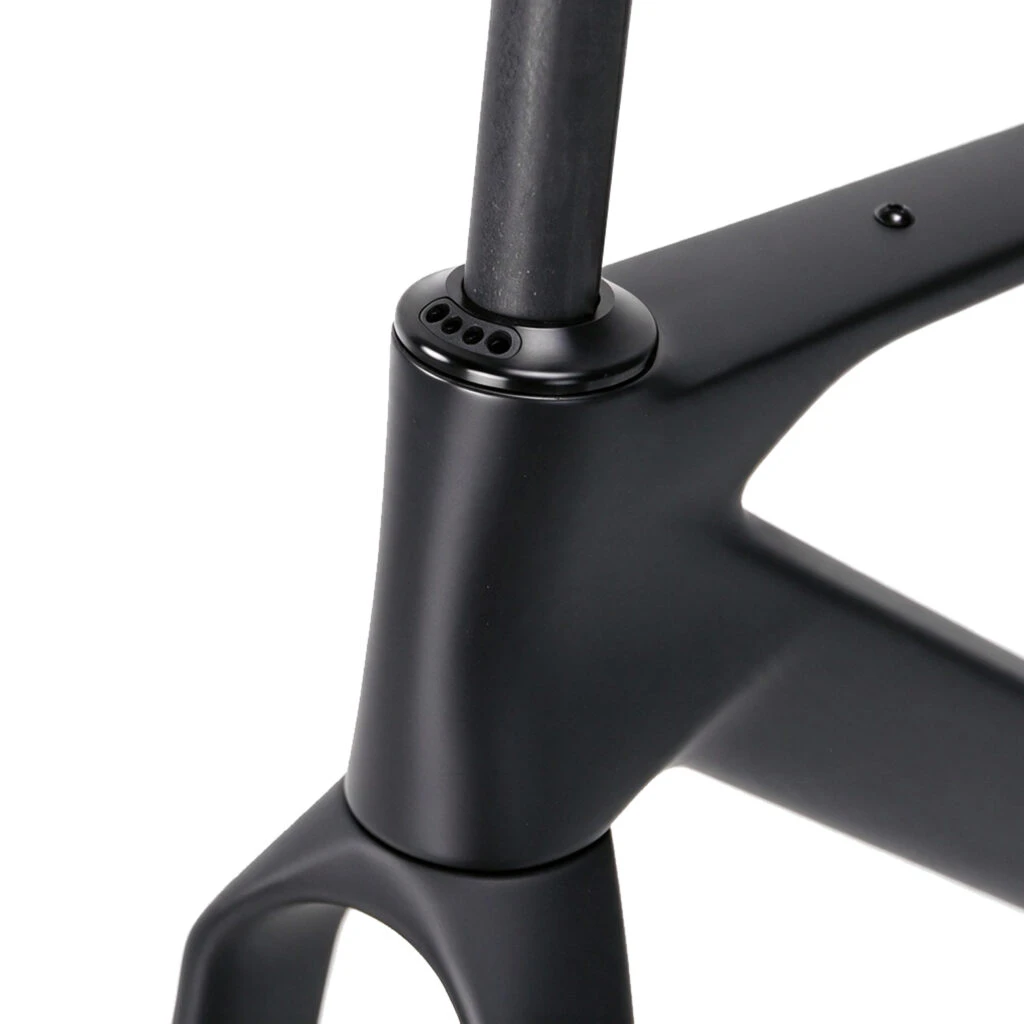

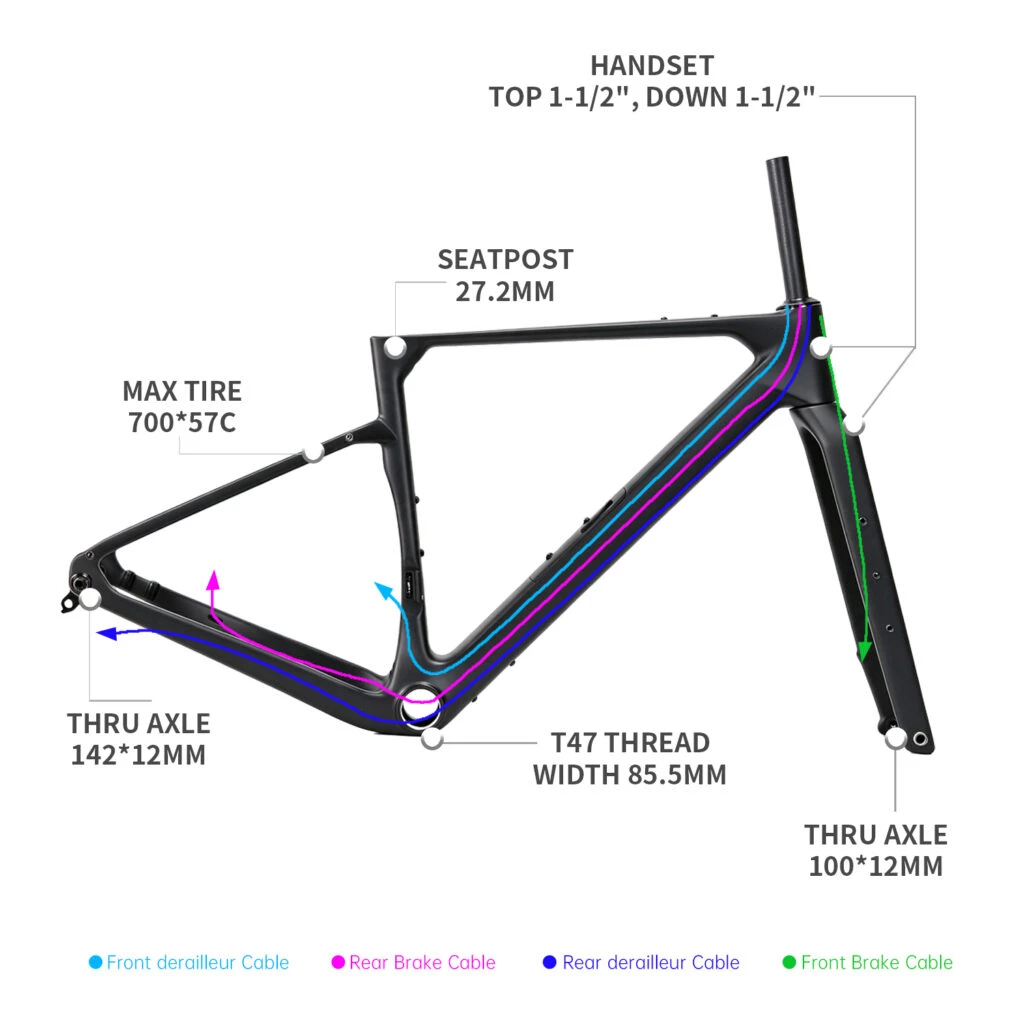

Internal Cable Routing Gravel Bicycle Frame
Fully Integrated Cable Routing: Conceals all cables inside the frame for a clean aesthetic. Significantly reduces aerodynamic drag and cockpit clutter.
Environmental Protection: Shields housing and hoses from mud, grit, and impact. Ensures consistent shifting and braking performance in extreme conditions.

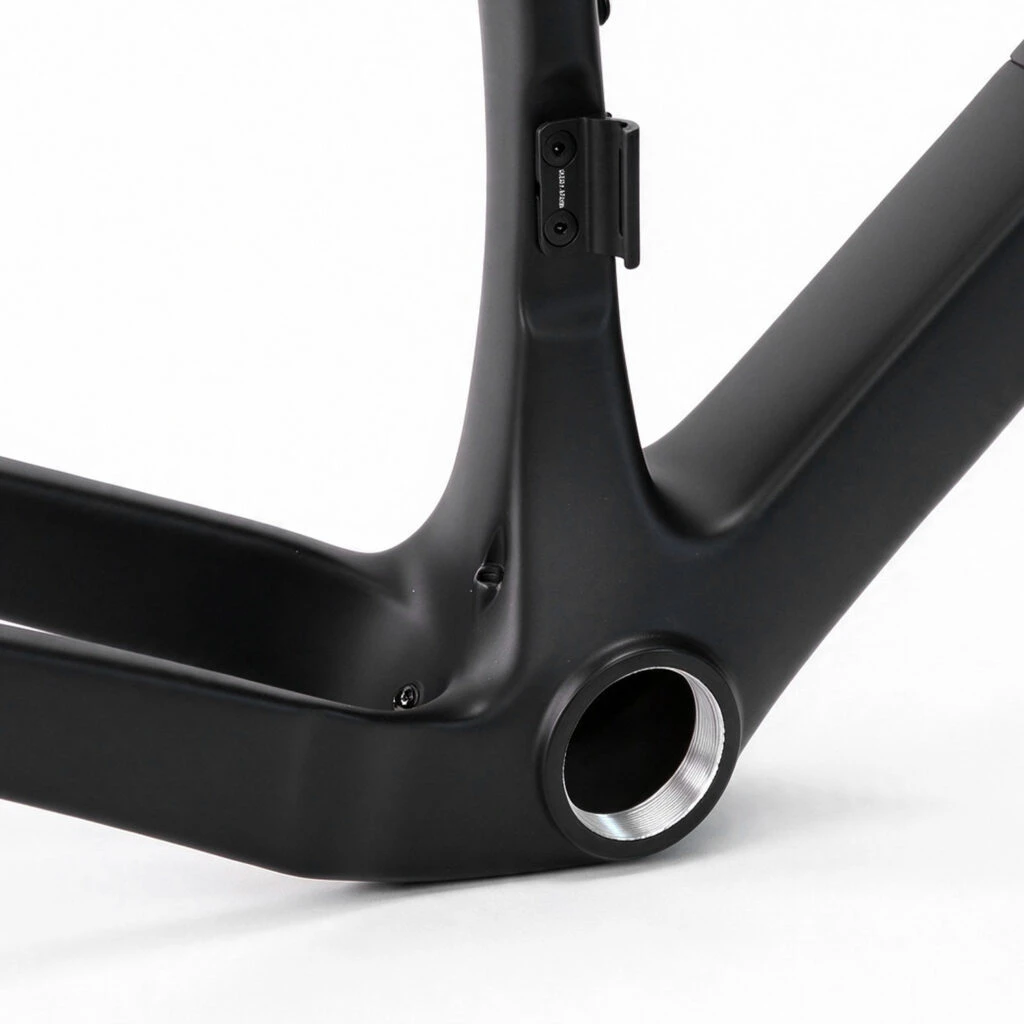

T47 Bottom Bracket
T47 Threaded Bottom Bracket: Combines the stiffness of oversized shells with threaded durability. Eliminates creaking under heavy pedaling loads.
Efficient Power Transfer: Ensures a precise bearing interface for maximum drivetrain efficiency. Compatible with standard spindle designs for long-ride reliability.

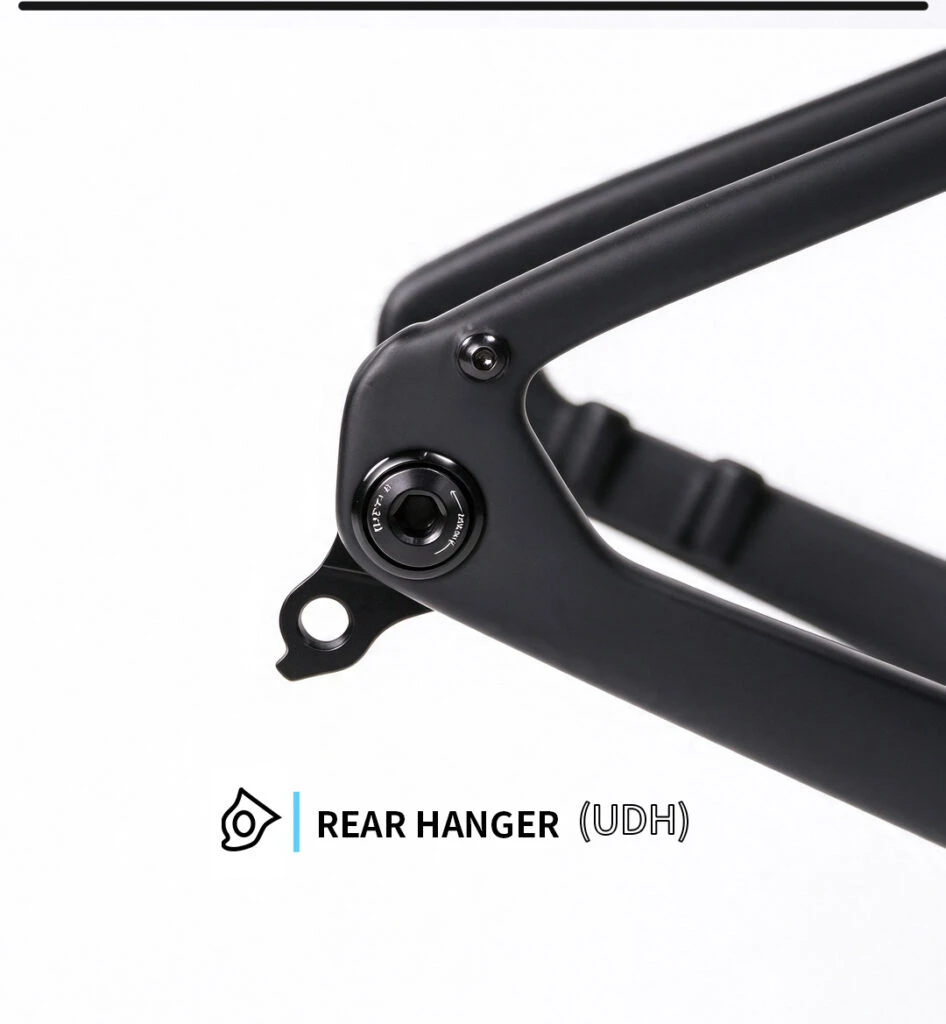

UDH Rear Hanger
UDH Derailleur Hanger: Features the SRAM Universal Derailleur Hanger standard. Ensures broad drivetrain compatibility and hassle-free global replacement.
Impact-Resistant Protection: Rotates backward under impact to protect the rear derailleur. Prevents chain drops and frame damage on rugged terrain.
Haidelibikes Factory
- Lead Time: Efficient production and on-time deliver.
- Custom Painting: Yes, fully customizable designs.
- OEM & ODM: Welcome-your brand, our support.
- MOQ: Starting from just 5 sets.
- Sample Policy: Samples available on request.
Advanced Production Facilities
- ISO-certified testing lab ensuring compliance with global standards.
- Exclusive Infrared Detection System – Our proprietary technology for internal defect inspection, ensuring every frame meets the highest safety and durability standards.
Manufacturing Techniques
- Blow molding: for lightweight frames and high-strength frame structures.
- EPS/latex molding: ensures precision interiors shaping.
Full-Service Capabilities–One-Stop Solution
- Design → Prototyping → Mass production → Custom Painting
- Masterful Painting Craftsmanship–Our expert painters, with 10+ years of experience, deliver flawless custom finishes, ensuring both durability and aesthetic excellence.
