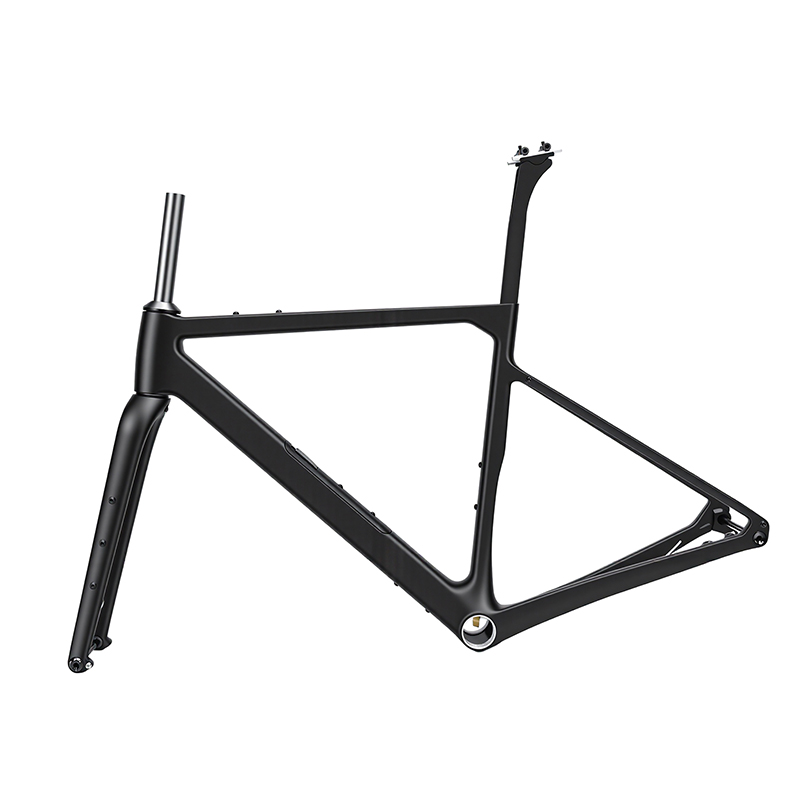

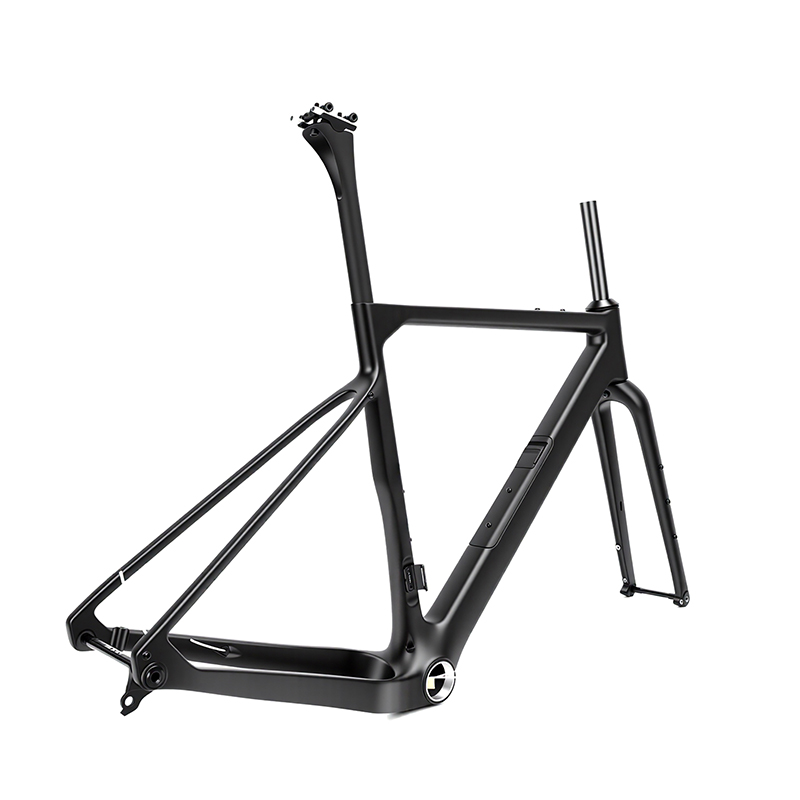

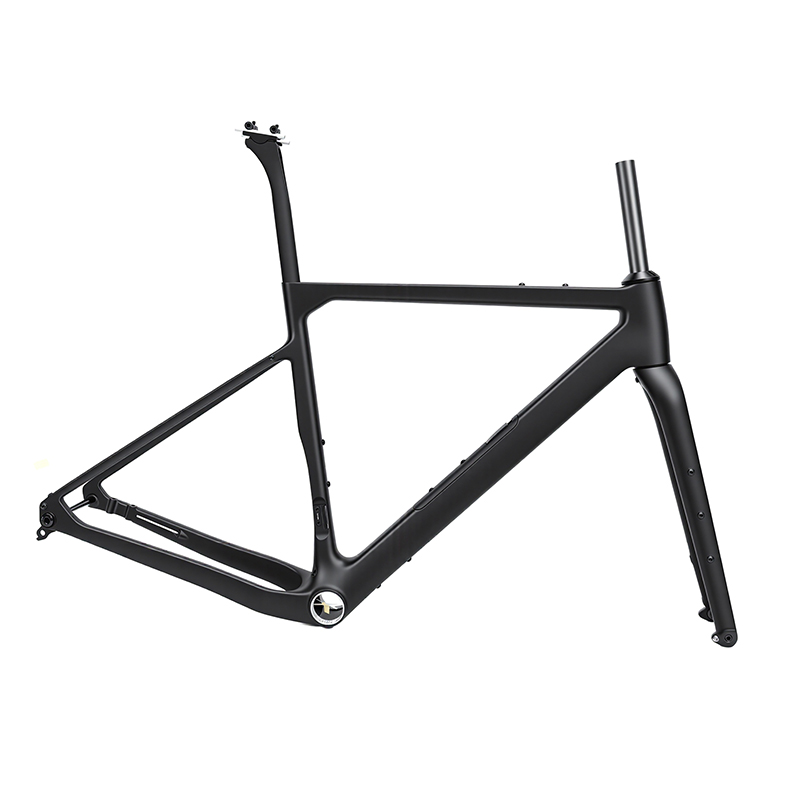

CR060 UDH Hanger Carbon Gravel Frame

carbon frame gravel bike

Carbon Gravel Bike Frame

  • Optimized gravel geometry offers stable handling and comfort on rough terrain—ideal for endurance and bikepacking riders.

  • Lightweight carbon construction enhances climbing efficiency and reduces fatigue over long distances.

  • Designed for adventure cyclists seeking a responsive, all-road frame with wide tire clearance and mounting options.

udh gravel frame carbon
gravel bike frames
carbon fiber gravel frame

Frameset: CR060
Axle: front 100*12mm, rear 142*12mm
Material: full carbon T1000
Seatpost: 27.2mm, offset 15mm
Stem angle: -7°
Frame Size: 49/52/54/56/59cm
Handlebar: 90/100/110/120*500/520/540mm

Handlebar Data: Drop 130mm, Reach 95mm
Weave: UD
Headtube: 1-1/2″ to 1-1/2″ straight
Bottom Bracket: BB86
Max Tire: 700*47C or 650B*2.1″ tires
Suitable Crankset: 42T

Brake Type: flat mount, 140mm and 160mm Disc Rotor compatible
Weight: frame 1080g+/-30g (54cm), fork 380g+/-30g, seatpost 190g+/-20g
Including:frame*1+fork*1+seatpost*1+handlebar*1+clamp*1+front&rear thru axle shaft*1

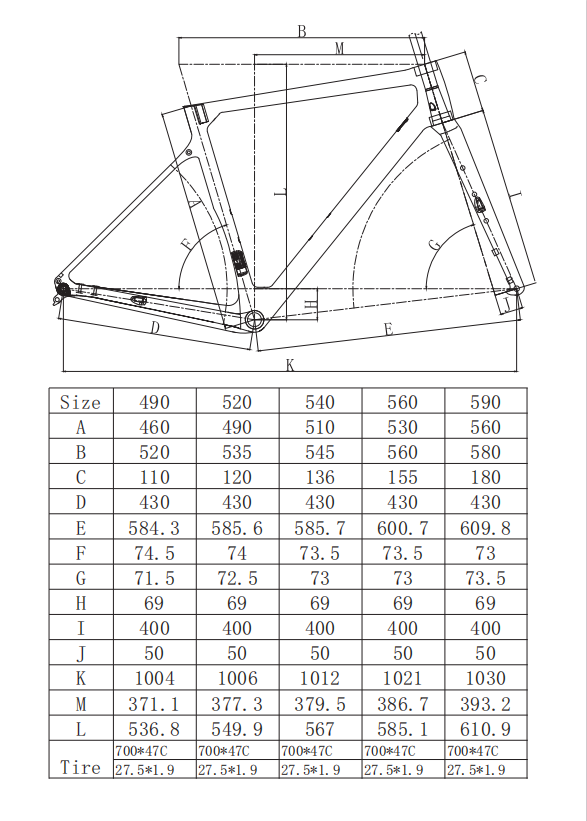

CR060 Gravel Bike Frame Geometry

  • It offers stable handling, relaxed angles, and comfort for long rides—perfect for bikepacking, endurance riders, and mixed-terrain adventures.
gravel bike frame size chart

Internal Cable Routing  Gravel Frame

  • Internal cable routing provides a clean look, reduces wind resistance, and protects cables from dirt and wear—ideal for gravel bikes, enhancing aerodynamics and long-term performance.

Integrated Gravel Handlebar

  • Carbon fiber integrated gravel handlebar enhances control, reduces weight, and improves aerodynamics.
  • Carbon handlebar Drop 130mm, Reach 95mm
gravel bike frames for sale

Thru Axle 100×12mm Straight Tube  Fork

  • Front 100×12 mm thru-axle fork boosts lateral stiffness, precise steering, and secure disc-brake alignment—ideal for gravel racing, bikepacking, and all-terrain control.

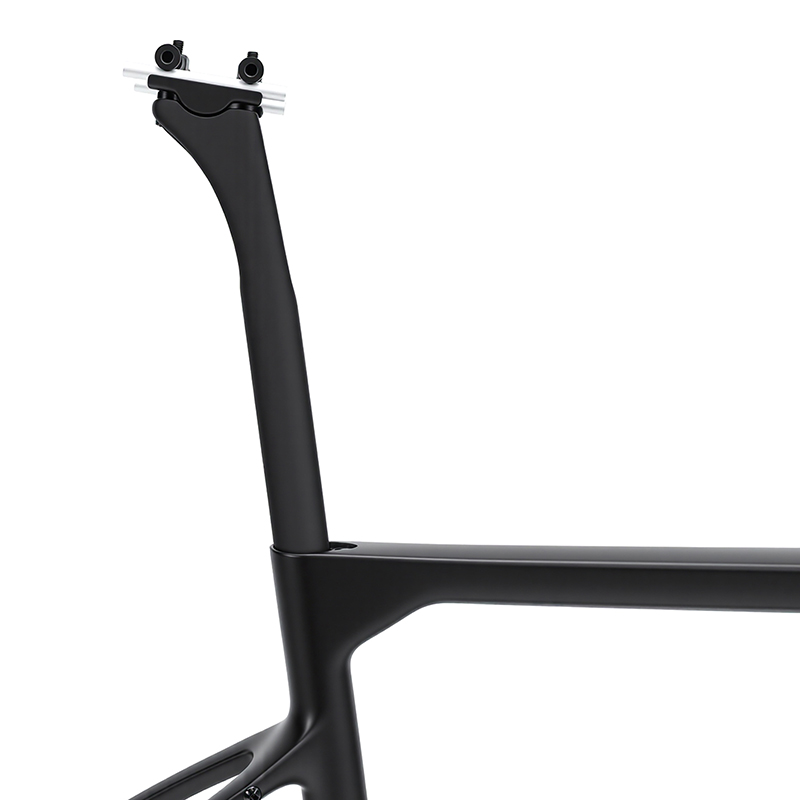

Aero Seatpost 15mm Offset

  • 27.2mm seatpost offers enhanced flex and vibration damping—ideal for long gravel and endurance rides.
  • 15mm offset improves rider position and comfort, boosting stability and pedaling efficiency on mixed terrain.

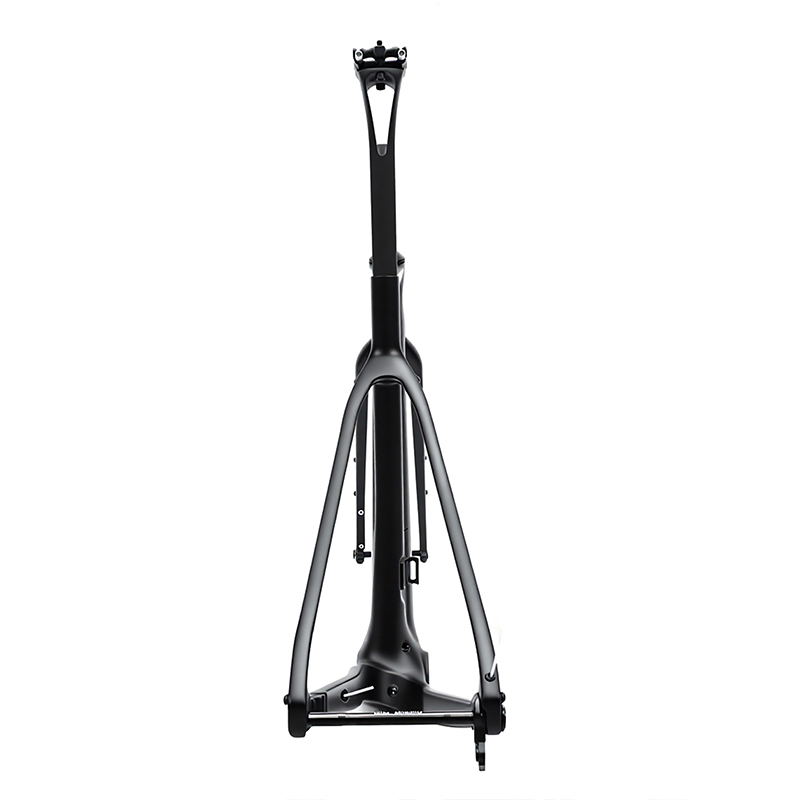

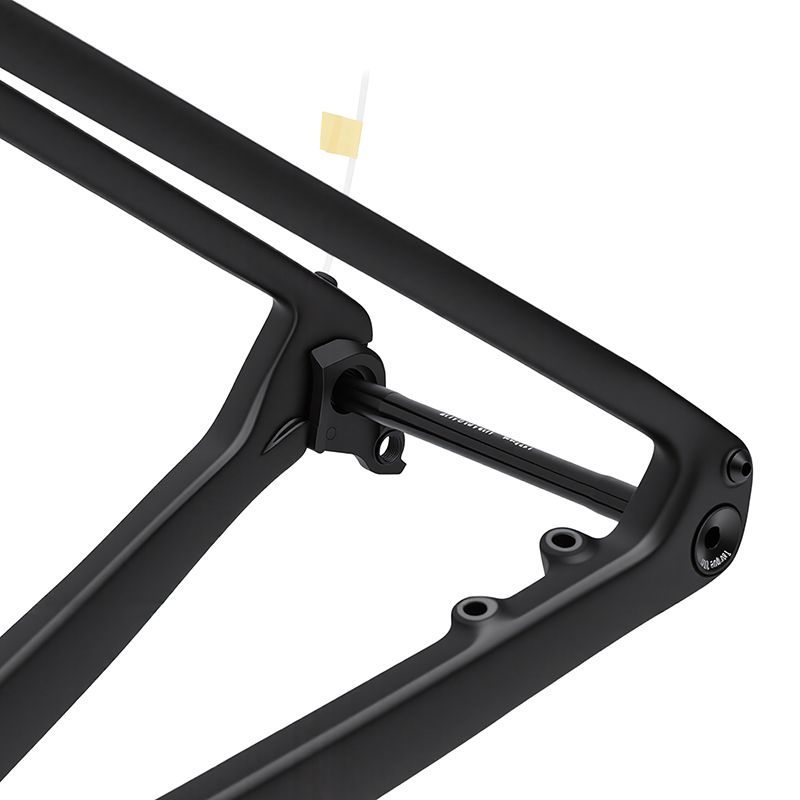

Rear Thru Axle 142*12mm

  • 142×12mm rear thru axle enhances frame stiffness, power transfer, and wheel alignment—perfect for a gravel bike frame, delivering stability, control, and responsiveness on mixed terrain.

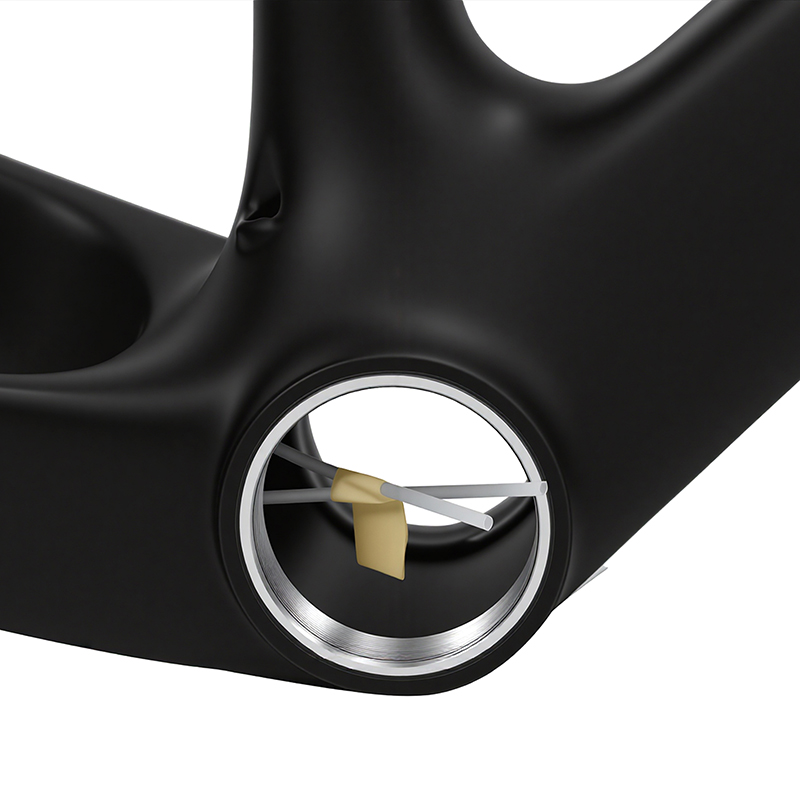

BB86 Bottom Bracket

  • It provides increased stiffness and efficient power transfer for gravel bicycle frames, boosting pedaling efficiency, stability, and performance on rough, mixed terrains.
gravel bike frame

Max 700*47C or 650B*2.1″ Tires

Max 42T Crankset

  • Supports max 700×47C or 650B×2.1″ tires, delivering great traction, comfort, and control for gravel bicycle frames used in adventure rides.

  • Compatible with up to a 42T crankset, providing powerful gearing range for climbing and long-distance gravel cycling



Haidelibikes Factory

  • Lead Time: Efficient production and on-time deliver.
  • Custom Painting: Yes, fully customizable designs.
  • OEM & ODM: Welcome-your brand, our support.
  • MOQ: Starting from just 5 sets.
  • Sample Policy: Samples available on request.





Advanced Production Facilities

  • ISO-certified testing lab ensuring compliance with global standards.
  • Exclusive Infrared Detection System – Our proprietary technology for internal defect inspection, ensuring every frame meets the highest safety and durability standards.





Manufacturing Techniques

  • Blow molding: for lightweight frames and high-strength frame structures.
  • EPS/latex molding: ensures precision interiors shaping.





Full-Service Capabilities–One-Stop Solution

  • Design → Prototyping → Mass production → Custom Painting
  • Masterful Painting Craftsmanship–Our expert painters, with 10+ years of experience, deliver flawless custom finishes, ensuring both durability and aesthetic excellence.
