GV202 Full Suspension Carbon Gravel Bike Frame

suspension gravel bike frame



Carbon Fiber Gravel Frameset

Dedicated new carbon gravel suspension frame have landed on the Haidelibikes. Discover how the Collection is revolutionising gravel now.

  • Full carbon gravel frame, built for heavy loads—perfect for long-haul bikepacking & stable off-road adventures.
  • Reinforced geometry offers max stiffness & comfort for endurance gravel rides.
  • Compatible with wide tires & racks, ideal for off-road touring, gravel racing, and all-day adventure cycling.
gravel bike frame
carbon frame gravel bike
carbon gravel bike frame

Mold: GV202
Max Crankset: 46T
Max Tires: 700*50C/27.5er*2.1 inch
Frame travel: 50mm
Suggest fork travel: 40-60mm
Frame Size: 47/49/52/54/56/58cm (XXS/XS/S/M/L/XL)
Fits fork: gravel fork/support suspension fork

Seatpost: 27.2mm support dropper seatpsot
Rear shock: 165*38mm (support remote lockout)
Bottom Bracket: T47
Rear hanger: UDH (Universal Derailleur Hanger)
Axle: rear 142*12mm, front 12*100mm
Axle to Crown(fork): 446

Chainstay length: 440
Disc brake: 160mm
Weight: 1600g+/-50g
Reach: 364/371/379/388/401
Stack: 571/578/588/604/620
Includes: frame+clamp+headset+thru axle+magnetic storage box with free storage bag
(excludes rear shock,fork,seatpost)

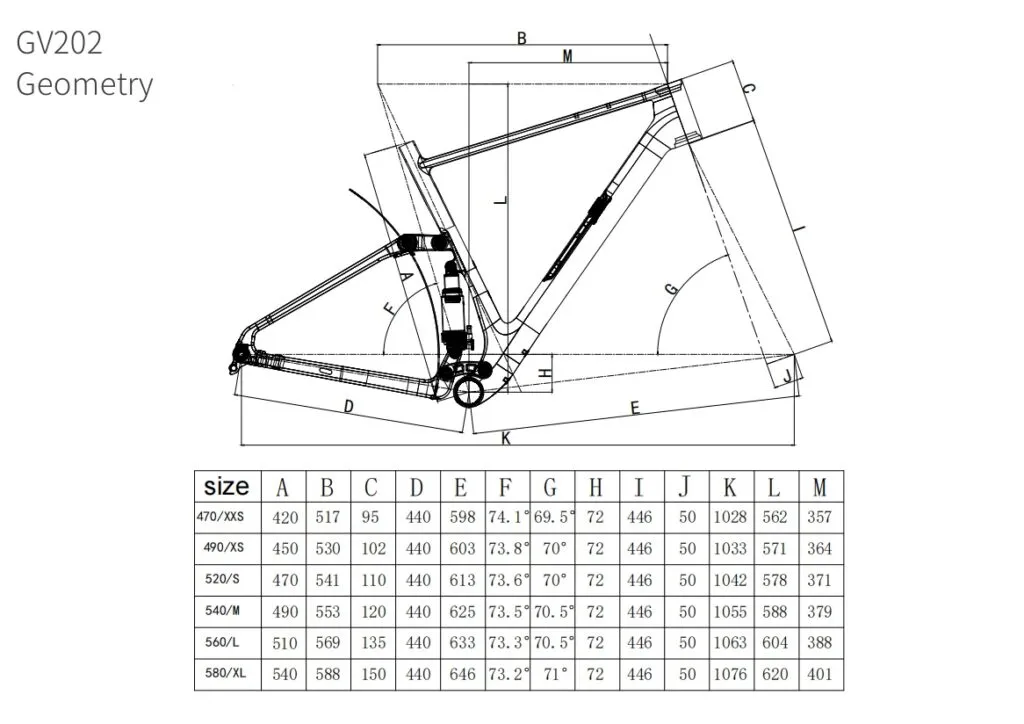

GV202 Suspension Gravel Bike Frame Size Chart

  • It is an advanced carbon gravel bike frame built for versatility and performance.
  • With 50mm rear travel, support for 700×50C or 27.5×2.1” tires, and a T47 bottom bracket, it handles any terrain with ease.
  • UDH hanger, dropper post, and remote-lockout shock compatibility make it a top choice for adventure riders seeking a high-performance suspension gravel bike frame.
gravel bike frame size chart
gravel bike frame

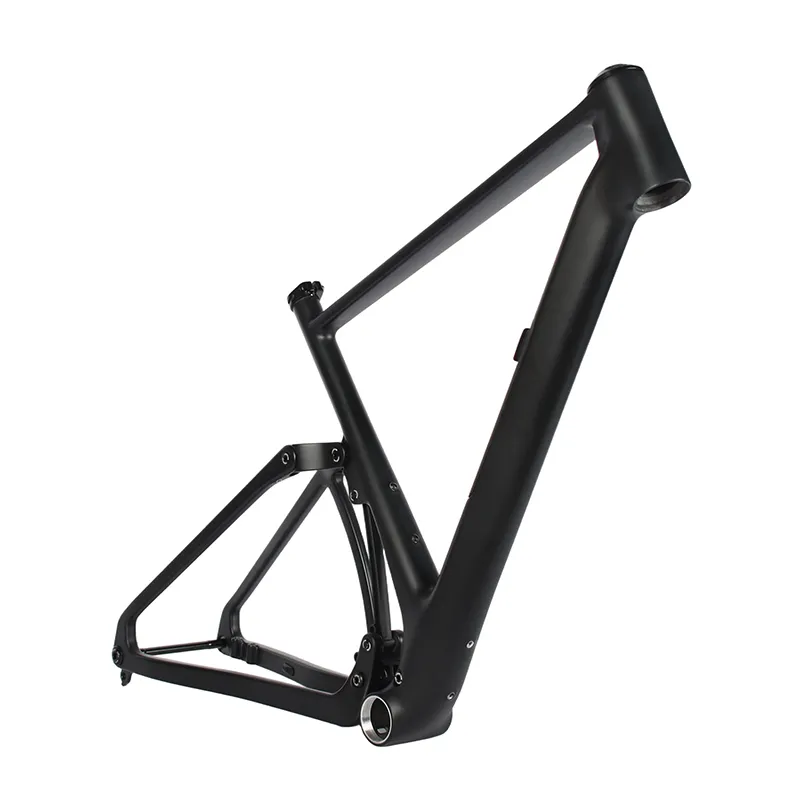

Full Suspension Gravel Bike Frame

  • We call it “fast, capable & surprising.” We deem it the natural evolution in all-terrain capability. Specific Suspension gravel geometry meets 40 to 60mm of travel up front. Carbon fiber construction throughout. For those who want to freely and comfortably take their gravel riding to the edge and back.

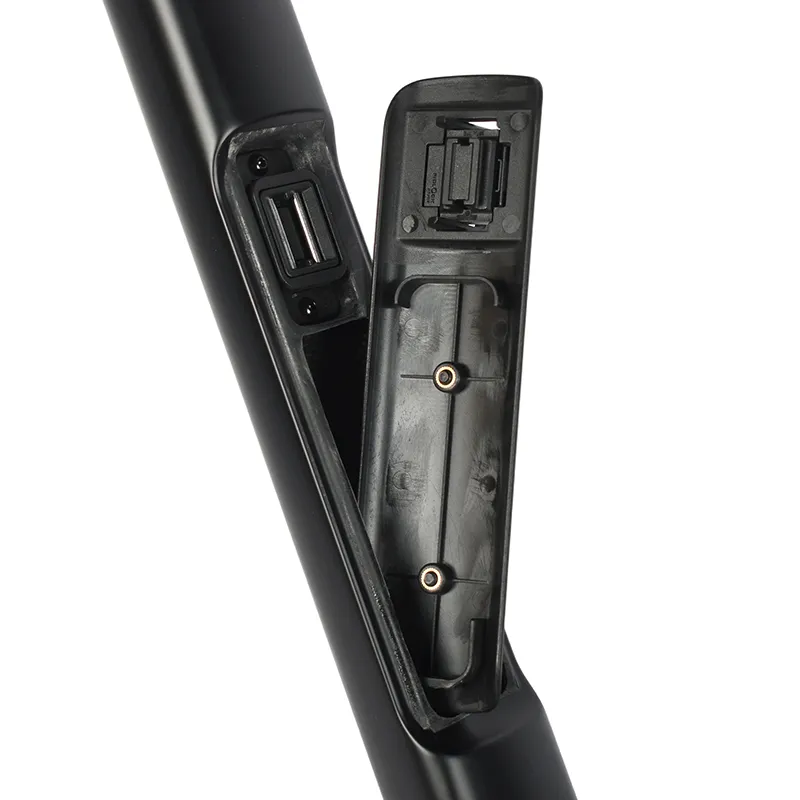

Magnetic Storage Box Design with Free Storage Bag

  • Ideal for suspension gravel bicycle frames. Offers secure, tool-free access to gear, enhancing convenience and storage on tough terrain.



suspension gravel frame
carbon frame gravel bike



T47 Bottom Bracket

  • Blending classic threading with modern performance, the T47 bottom bracket brings whisper-quiet pedaling and rock-solid crank stability to gravel frame—built for riders who push limits, not bolts.

27.2mm Seatpost with Dropper Compatibility

  • This offers gravel bicycle suspension frame enhanced control and comfort on descents, technical trails, or varied terrain transitions.



Support Suspension Fork

  • Supports suspension fork for improved shock absorption, control, and comfort on rough gravel roads—ideal for bikepacking, adventure riding, and long-distance endurance routes.
gravel bicycle frames

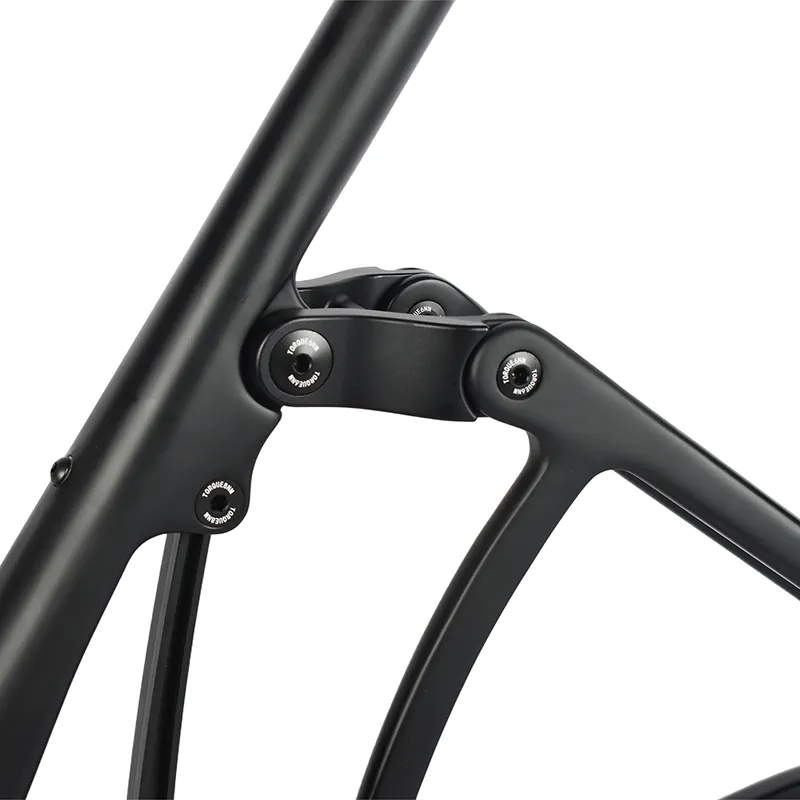

Rear Shock 165×38mm Compatibility

  • It supports 165×38mm shock with remote lockout delivers on-demand suspension control—smooths out gravel trails while boosting efficiency on climbs and hardpack sections.

Max 700×50C / 27.5×2.1″ Tires

  • Supports up to 700×50C or 27.5×2.1” tires, giving carbon gravel bike frame excellent traction, comfort, and versatility across mixed terrain—from city roads to technical trails.

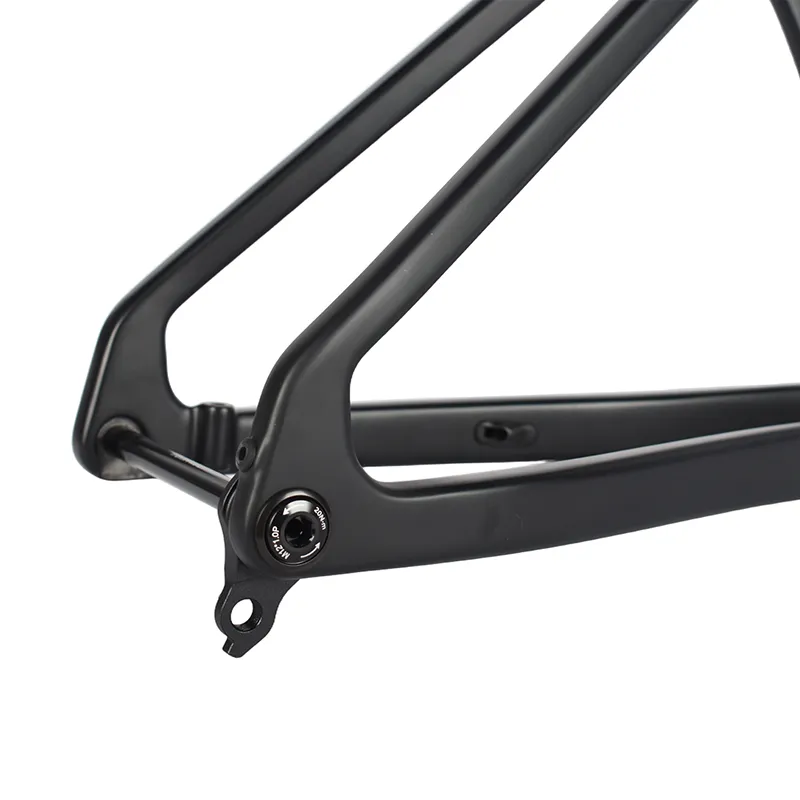

UDH(Universal Derailleur Hanger)

  • Equipped with UDH for maximum drivetrain compatibility, easier replacements, and future-proof performance—ready for SRAM T-Type and the latest gravel drivetrain innovations.
gravel frames carbon



Haidelibikes Factory

  • Lead Time: Efficient production and on-time deliver.
  • Custom Painting: Yes, fully customizable designs.
  • OEM & ODM: Welcome-your brand, our support.
  • MOQ: Starting from just 5 sets.
  • Sample Policy: Samples available on request.





Advanced Production Facilities

  • ISO-certified testing lab ensuring compliance with global standards.
  • Exclusive Infrared Detection System – Our proprietary technology for internal defect inspection, ensuring every frame meets the highest safety and durability standards.





Manufacturing Techniques

  • Blow molding: for lightweight frames and high-strength frame structures.
  • EPS/latex molding: ensures precision interiors shaping.





Full-Service Capabilities–One-Stop Solution

  • Design → Prototyping → Mass production → Custom Painting
  • Masterful Painting Craftsmanship–Our expert painters, with 10+ years of experience, deliver flawless custom finishes, ensuring both durability and aesthetic excellence.
