In the past five years, the gravel bicycle frame market has grown at an annual rate of over 18%, becoming a vital segment connecting road and mountain cycling. More and more brands and riders are turning to custom gravel frames to achieve personalized geometry, material structure, and component compatibility tailored to specific riding needs.
The Unique Appeal of Custom Gravel Frames
Why Choose Custom Gravel Frames
Custom gravel frames allow users to optimize configurations based on their riding style.
While many high-end brands offer carbon gravel frames with excellent performance, they are often expensive, come in fixed sizes, and lack flexibility. Customization offers better cost control and enables the frame to align perfectly with the rider’s body and terrain requirements.
Perfect Fit: The Essence of a Custom Gravel Frame
The core advantage of a custom gravel frame lies in its personalized geometry. You can precisely set critical parameters such as seat tube angle, head tube length, stack, and chainstay length to fully match your riding posture, pedaling habits, and body structure. This minimizes the risk of injury and significantly boosts riding efficiency.
Multi-Scenario Adaptability: Commuting, Light Off-Road, Long-Distance Touring
A high-quality bicycle frame gravel must be robust and adaptable to various scenarios. For more practical insights, check out our gravel frameset riding experience sharing, where real riders tested different builds across diverse terrains. Modern gravel frames are compatible with 28–50mm tires, rack mounts, multi-point bottle cage holes, and fender mounts, making them suitable for urban commuting, weekend off-road rides, and long-distance tours.
Comparing Common Materials: Carbon vs Aluminum vs Titanium
When customizing gravel bicycle frames, the material directly influences performance and application. The main materials used are carbon fiber, aluminum, and titanium. Each has distinct characteristics in terms of weight, stiffness, comfort, cost, and suitability, making material selection the first key step in crafting a custom gravel frame.
Lightweight and Performance: Carbon Gravel Frames
Carbon gravel frames are among the most popular options in the mid-to-high-end market. Using laminated structure and vacuum molding technology, carbon fiber achieves exceptional stiffness and low weight (usually 950–1100g), along with excellent vibration damping—ideal for rough surfaces and long rides.
Made with high-modulus carbon fabric, carbon gravel bicycle frames offer design flexibility for complex geometries and internal routing. For riders seeking a balance of light weight and high performance, carbon remains a top choice.
For tips on finding the right model, see our guide: how to choose a light carbon gravel bike frame.
Cost-Performance Comparison: Carbon, Aluminum, and Titanium
For budget-conscious or durability-seeking users, aluminum gravel frames remain a strong market option. Modern alloys (e.g., 6061 or 7005) offer sufficient strength and stiffness for gravel rides at 40–60% lower cost than carbon, ideal for OEM bicycle frame gravel batch development.
Titanium gravel frames (e.g., 3AL-2.5V) are favored by high-end users for their corrosion resistance and excellent fatigue life. Though titanium is costly and challenging to weld, it’s considered a “lifetime” material—3–5x more expensive than aluminum.
Carbon fiber gravel frames appeal to performance-oriented users for racing and endurance riding. Despite their higher cost, custom lay-up options enable a better balance between weight and comfort, making carbon the mainstay in the premium market.
For a more in-depth analysis, see Carbon Fiber Bicycle Frames Advantages and Disadvantages, which explores both the strengths and trade-offs of this material in detail.

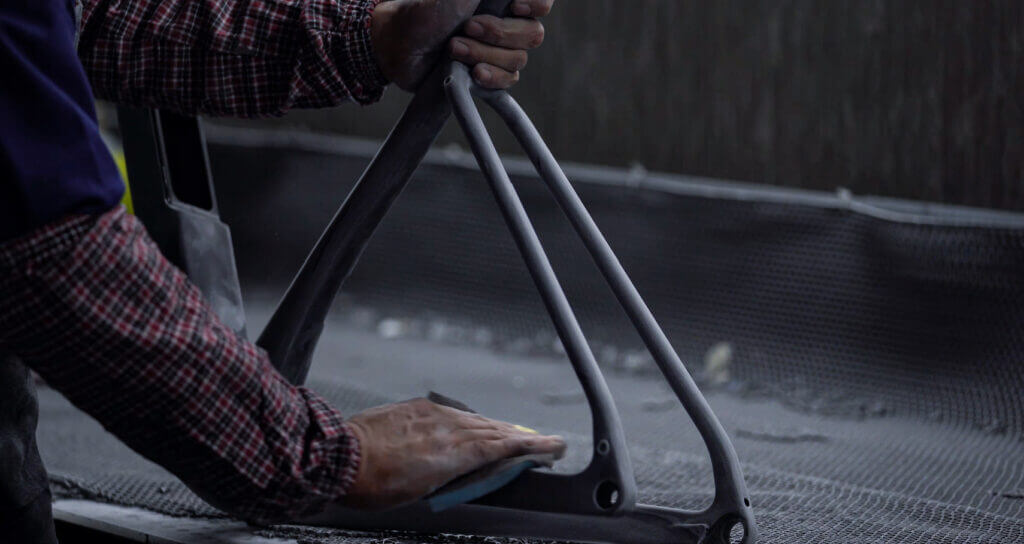

Behind the Build: From Design to Finished Product
Precision Geometry Calculation and UDH Compatibility
Geometry is crucial to riding experience. When customizing a bicycle frame gravel, engineers calculate key specs—head tube angle, top tube length, bottom bracket height, wheelbase—based on height, inseam, riding style, and use case (e.g., touring, off-road, commuting).
To enhance drivetrain compatibility, most high-end frames now support the UDH gravel frame (Universal Derailleur Hanger), allowing a wider range of drivetrain options like SRAM UDH or Shimano 12-speed systems, and leaving room for future upgrades.

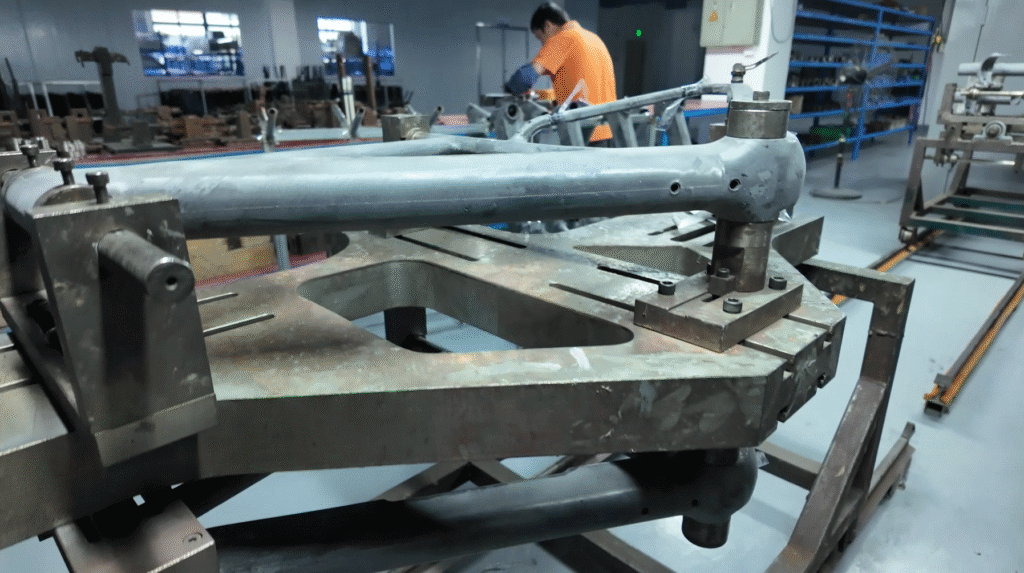

Carbon Lay-Up and Vacuum Compression Molding
For a carbon gravel frame, performance is largely dictated by carbon lay-up design and molding. We use high-modulus T700/T800 carbon sheets layered in directions (0°/45°/90°) to balance stiffness, vibration damping, and durability. Stress-concentrated zones (bottom bracket, downtube intersections) receive extra reinforcement.
EPS internal molding and VARTM vacuum compression remove excess resin and bubbles, making the structure denser and lighter. Frame molding precision is controlled within ±0.2mm.
Internal Cable Routing, Fender Mounts, Magnetic Storage Box, and More
Modern gravel bicycle frames are increasingly integrated and multifunctional. Internal routing enhances aesthetics and protects cables.
Mounting holes for bottle cages are typically positioned in the main triangle, with extra mounts beneath the downtube for a third bottle or tool kit—vital for long rides.
Fender mounts accommodate mainstream systems for all-weather versatility, a key detail for bikepacking riders.

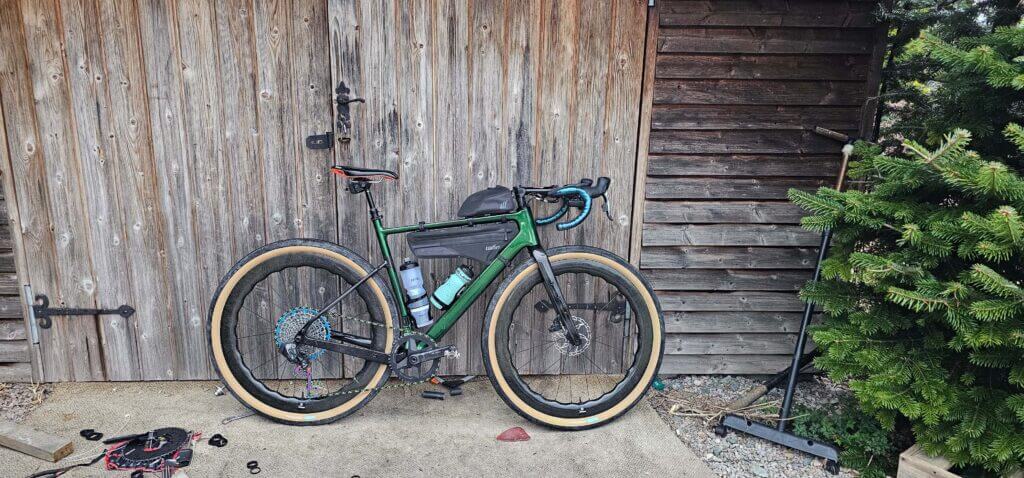

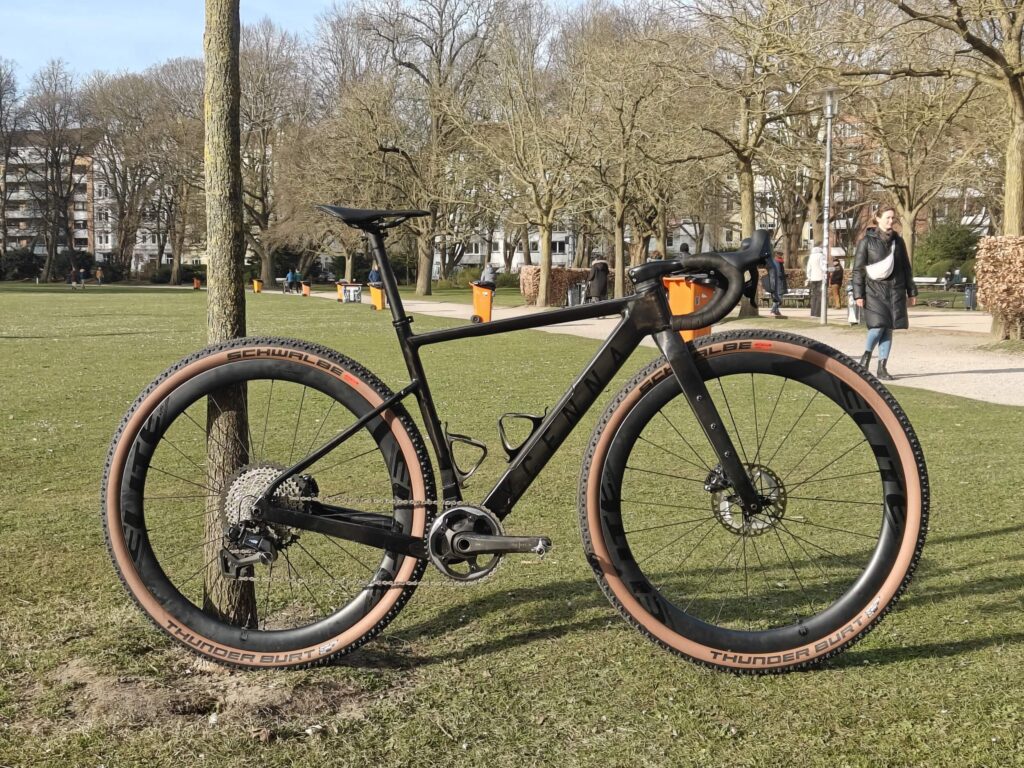

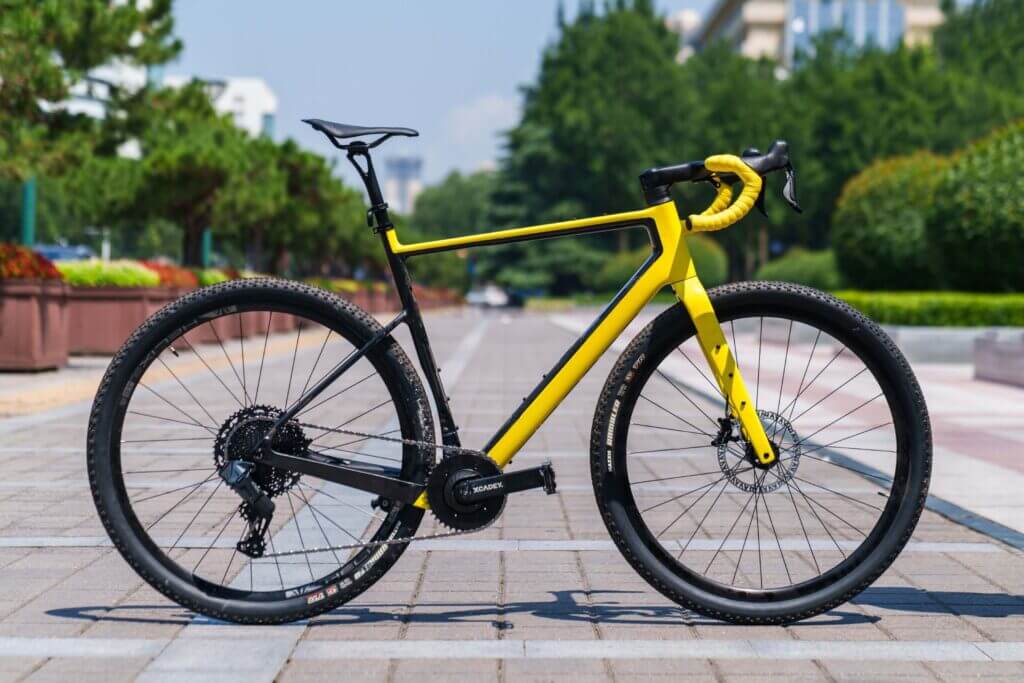

Notably, some high-end frames like our GV201 gravel bike frame feature a patented magnetic storage box, attached under the downtube using magnets. It’s ideal for tools, repair kits, or energy gels—offering better waterproofing, ease of use, and aesthetics than traditional straps or bolts. We invited three experienced riders to test our GV201 carbon gravel frameset, and their feedback highlighted the storage system’s reliability and convenience during long-distance rides.
Custom vs OEM: Which Customization Service Suits You?
Advantages of OEM Bicycle Frame Gravel: Cost, Flexibility, Small Batches
The OEM (Original Equipment Manufacturing) model suits brand owners without in-house factories. For small to mid-size brands looking to enter the market affordably, OEM gravel bicycle frames offer:
-
Cost control: Integrated raw materials and standardized processes reduce costs by 30–50% compared to local production, with comparable performance.
-
Small-batch customization: MOQ starting at 50–100 units minimizes inventory risk and supports pilot runs and iteration.
-
Flexible specifications: OEM allows custom molds, paint schemes, internal/external routing, and UDH design.
As demand grows for multifunctional frames in Europe and North America, Chinese OEM factories can deliver samples within 1–2 months.
Customization Process: From Design Consultation to Mass Production
For clients focused on branding, premium experience, and accurate geometry, custom gravel frames are key to differentiation. Our 10+ years of export experience ensures a transparent and efficient customization process:
-
Design Consultation (Geometry + Aesthetics):
Submit geometry drawings or key parameters (head tube angle, reach, stack, tire width compatibility). We analyze and optimize for ergonomic fit. -
Prototyping & Testing:
First samples made with CNC molds and carbon lay-up, delivered in 21–30 working days with EN/ISO testing available. -
Mass Production:
Stable lead times (usually 45–60 days). Our monthly capacity exceeds 1,000 gravel frames and supports complete bike assembly (OEM + ODM). -
Brand Packaging:
Custom logo decals, water transfers, and packaging solutions, compliant with international regulations.
Haidelibikes: 10+ Years of Factory Expertise
As a factory with over a decade of experience in carbon fiber bicycle parts, we understand what global clients value most: consistency, lead time, and after-sales service.
-
Quality Control: All carbon components exceed ISO 4210 standards.
-
Tolerance Control: Key dimensions (BB width, fork spacing, headset size) are accurate within ±0.2mm for smooth assembly.
-
Export Strength: Extensive experience with clients from EU, US, Japan, and Korea. We support DAP/DDP/DDU shipping and small airfreight orders for fast market entry.
Choosing the right manufacturing model saves time and costs while delivering market-ready gravel bicycle frames built on professional manufacturing.
Case Study: Integrating Suspension + UDH in Gravel Frames
As gravel cycling extends into rugged terrain, frame design evolves. A new wave of carbon gravel frames integrates small suspension travel with UDH dropout systems. Here’s how the two innovations enhance riding performance and user experience.
Carbon Fiber Suspension Gravel Frame: Comfort in Practice

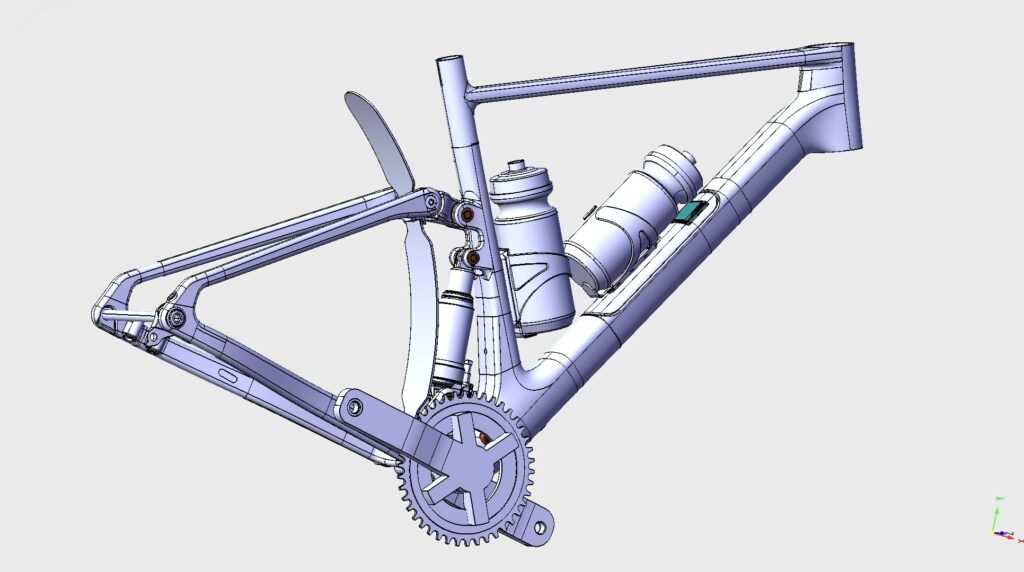

Unlike rigid designs, the GV202 carbon fiber suspension gravel frame from haidelibikes features flexible seatstays or micro-suspension structures to absorb high-frequency vibration from rough trails. Carbon’s natural damping, combined with lightweight and stiffness, makes it ideal for high-end gravel use.
The frame maintains efficient pedaling while improving stability and comfort. It also supports water bottle cages and rack mounts for diverse cycling needs.
UDH Gravel Frame Compatibility: Optimizing Drivetrains and Durability
UDH (Universal Derailleur Hanger) by SRAM is now standard on many high-end gravel frames. Compared to custom hangers, UDH offers:
-
Drivetrain Compatibility: Works with SRAM UDH, T-Type e-shifting, Shimano 12-speed, Eagle Transmission, and more.
-
Impact Protection: Rotational design disperses sho ck to prevent derailleur damage.
-
Ease of Replacement: Standardized interface simplifies global maintenance—ideal for export OEM/ODM projects.
Over 80% of our China bicycle frame gravel clients now request UDH, especially for exports to Europe, enhancing end-user satisfaction and brand credibility.
Interactive Guide: How to Customize Your Perfect Bicycle Frame Gravel
Self-Assessment Checklist: Body, Tactics, Terrain
Start your custom bicycle frame gravel project with a clear understanding of your needs. Use this checklist:
-
Body Fit: Height, inseam, arm length, riding posture—inform geometry (reach, stack, head tube length).
-
Riding Tactics: Prefer endurance cruising, commuting, or off-road speed? This determines aero vs wide tire designs.
-
Terrain Type: Gravel trails, city outskirts, mountain paths? Choose between 650B gravel frames (more comfort) or 700C setups.
-
Drivetrain Compatibility: SRAM T-Type or Shimano GRX? Need UDH? These define dropout specs.
Material, Paint, Branding, and OEM Customization
-
Material Options: UD, 1K, 3K, 12K carbon weaves to match strength, budget, and aesthetics.
-

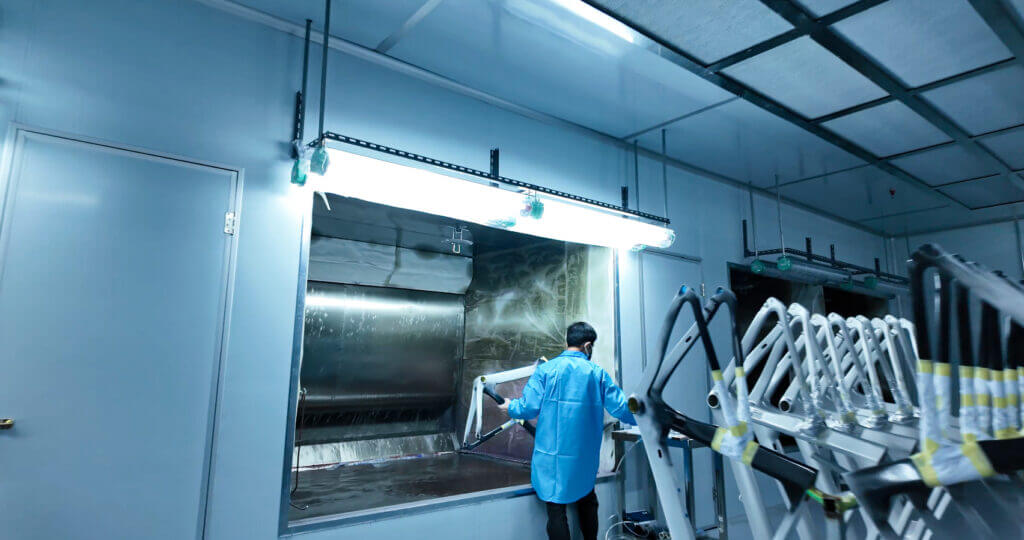

Paint & Finish: Dozens of options—solid colors, gradients, UV gloss, water transfer—for unique brand identity.
-
Branding: For individuals or brands, full OEM customization—decals, laser logos, packaging—available.
-
Geometry Reference: Support for customer CAD files, sketches, or sample frames.
Quotation & Lead Time
| Customization Type | Estimated Price | Lead Time |
|---|---|---|
| Basic Custom (single color + std geometry) | ¥3,800–4,800 per frame | 30–40 working days |
| Premium Custom (geometry + paint + UDH + internal routing) | ¥4,500–6,000 per frame | 45–60 working days (excl. mold) |
| Mold Development (for new geometry) | ¥6,000–10,000 | 20–30 days |
| Export Shipping (air/sea) | ¥300–600 per frame | 5–20 days depending on region |
Conclusion
Customizing your Gravel Bicycle Frame is not just a form of personal expression—it’s key to optimizing performance. With over 10 years of experience as a China-based gravel frame manufacturer, we offer flexible OEM bicycle frame gravel services, from personalized design to mass production.
Backed by rigorous craftsmanship and global logistics, we are committed to delivering a tailor-made bicycle frame gravel that empowers your journey with efficiency, comfort, and character.
