How Carbon Fiber Bike Frames Are Made (Step-by-Step Guide)

In the modern bicycle industry, carbon fiber frame manufacturing has become a benchmark of performance and technology. According to CyclingTips, carbon fiber holds over 60% of the global high-end bicycle market and exceeds 85% penetration in carbon fiber road bike frames.

🔗 Source: CyclingTips – Why carbon fiber dominates modern road bikes

With a high strength-to-weight ratio (up to 600 GPa/1.6g/cm³), carbon is about 25% lighter and 30% stiffer than aluminum. Top manufacturers use aerospace-grade T800/T1000 prepregs with multidirectional layups to enhance rigidity in key zones like the bottom bracket—techniques often seen in custom bicycle frames.

In the bicycle frame painting process, leading brands adopt UV-cured or ceramic coatings to improve scratch and impact resistance. “the quality of a carbon frame depends on how ugly it is before painting,” underscoring the importance of pre-finish work like carbon frame repair.

🔗 Source: Pinkbike Forum – Carbon Frame Finishing

Moreover, many brands now include a bicycle frame serial number chart for registration, anti-theft, and after-sales tracking—especially common in the EU and U.S.

In short, a real carbon fiber bicycle frame is a fusion of materials science, engineering, and craftsmanship. The following sections will break down its production, testing, and customization processes—from prepreg cloth to finished frame.

Full Manufacturing Process of Making Carbon Fiber Frame

 Design and Modeling (Custom Bicycle Frame Design Stage)

To manufacture a high-performance custom bicycle frame, the first step is 3D modeling combined with mechanical simulation. Designers input rider parameters such as height, stride, and seat height based on ergonomic bike fit geometry. Using Finite Element Analysis (FEA), they simulate stress on different carbon bike frames and bike frame components to optimize tube shape and angles. For example, at Haidelibikes, designers often start by determining the head tube rigidity index, then reverse-engineer the carbon fiber layup for the top and down tubes—a process jokingly called “reverse anatomy.”

 Carbon Cloth Cutting and Prepreg Preparation

The choice of carbon cloth sets the upper limit for frame performance. Common types include:

• UD (Unidirectional) Cloth: Used mainly in load-bearing areas like the top and down tubes.

• 3K Woven Cloth: Used for impact resistance and aesthetic enhancement.

• 12K High-Strength Cloth: Used to reinforce critical points like the rear dropout and bottom bracket.

Prepreg materials must be stored at -18°C to preserve quality. Haidelibikes uses Toray T700/T800 series prepreg with resin content controlled between 38-40% to balance fluidity and structural integrity. Carbon layers are precision-cut with laser systems to keep size and fiber orientation errors within ±0.5mm—a critical factor in custom carbon frames.

 Mold Laying and Vacuum Forming

The mold system consists of an inner mold (silicone airbag or EPS foam) and an outer mold (steel or aluminum alloy). Operators “lay up” carbon cloth layers in precise orientations and sequences inside the mold. This layup process is highly skill-dependent; incorrect layering can cause defects like delamination or fiber breakage.

Common molding methods include:

 High-Temperature Curing: The Key to Frame Structural Strength

Curing completes the resin cross-linking under controlled heat and pressure, bonding carbon fiber layers into a solid structure. Typical curing parameters are:

• Temperature: 120–140°C

• Time: 90–120 minutes

• Internal mold pressure: 6–8 bar

The autoclave’s temperature control system ensures less than ±3°C variance across the frame, directly affecting the fatigue life and durability confirmed in frame testing.

 Deburring and Surface Grinding (Preparation for Painting Bicycle Frame)

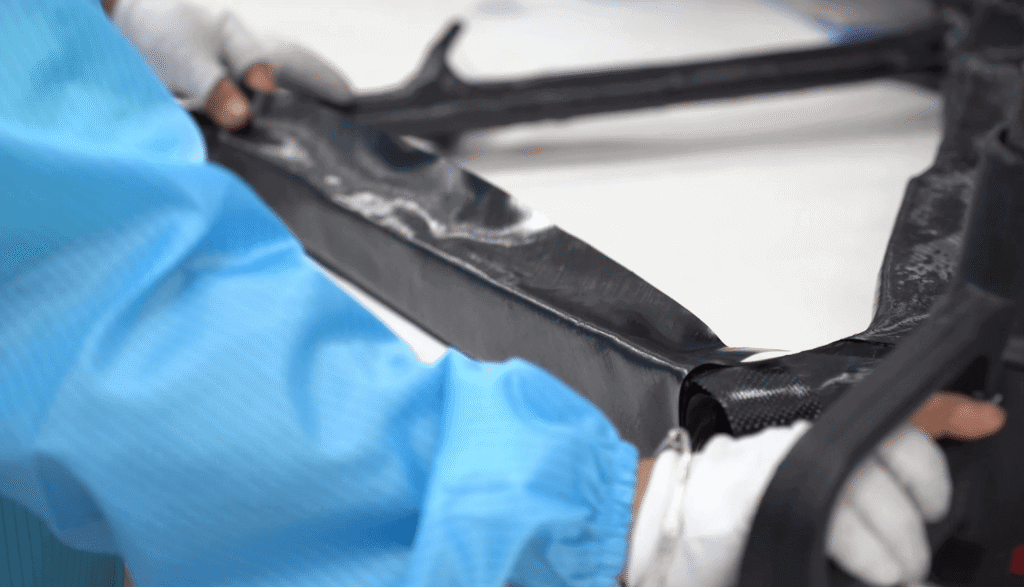

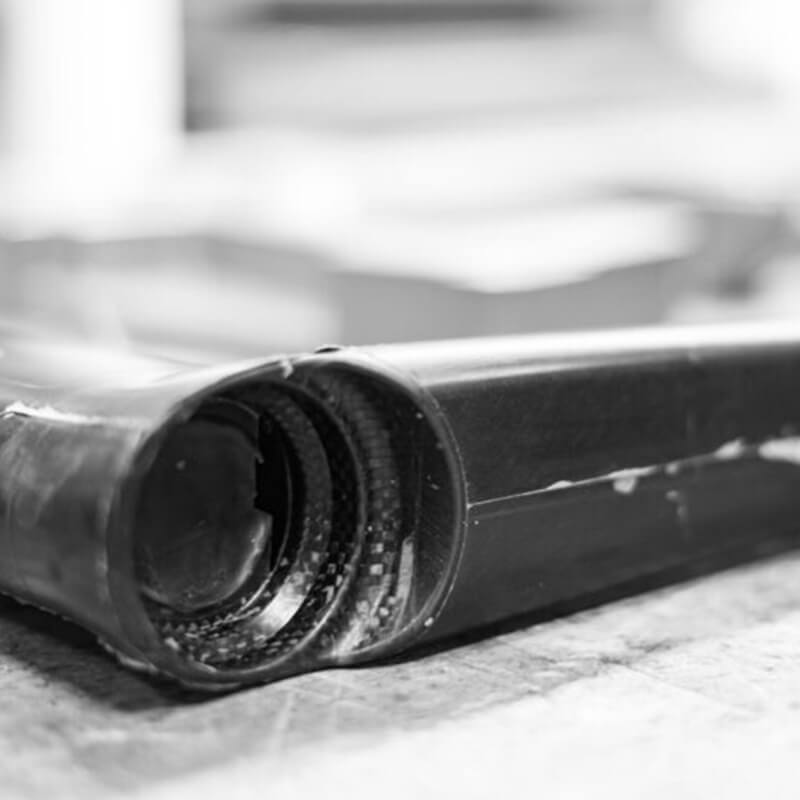

After curing, excess resin, burrs, and surface irregularities on the raw bike frame must be removed manually with precision grinders. This process, known as “opening the surface,” also includes thorough inspection for defects like bubbles or delamination.

Haidelibikes incorporates laser profile measurement instruments during this stage to detect frame deformation early, ensuring optimal paint adhesion and finish quality.

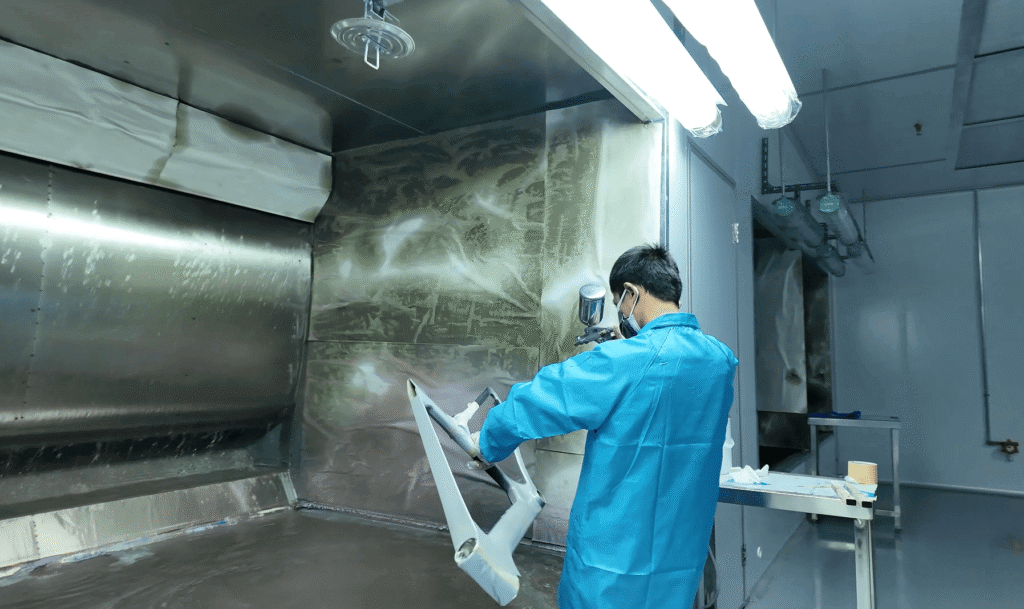

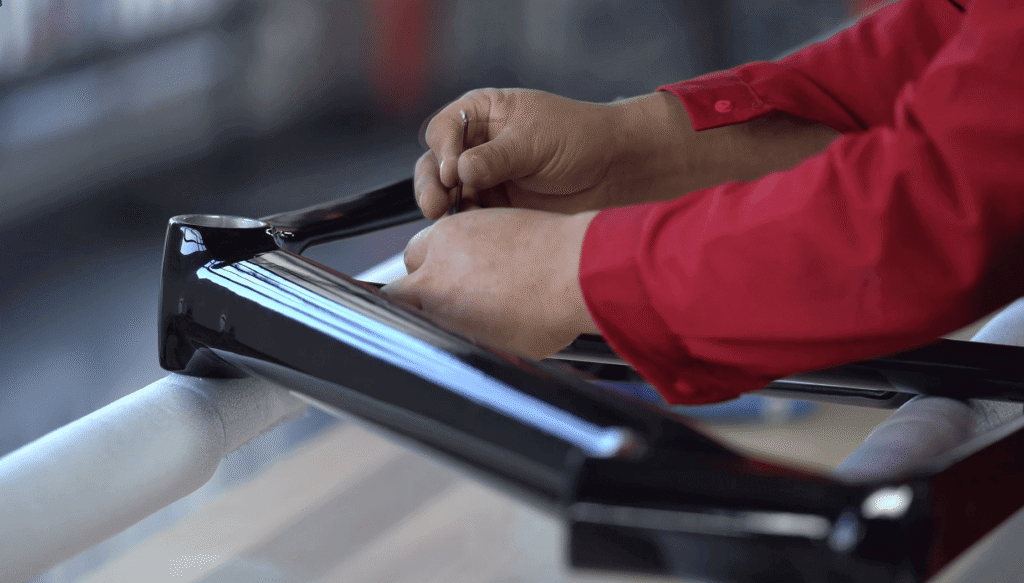

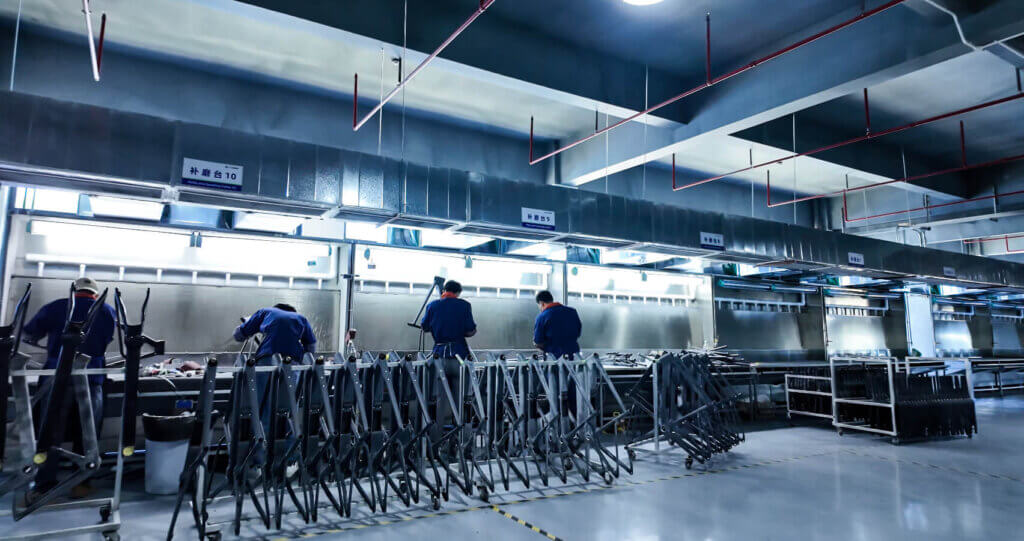

 Painting and Surface Treatment (Detailed Process of Painting Bicycle Frame)

Painting determines the frame’s appearance and long-term durability. The typical sequence is:

• Primer Coat: Fills pores and smooths the surface.

• Mid-Coat: Applies logos and custom graphics.

• Topcoat: Provides UV protection and finishes like gloss or matte.

High-end OEM bicycle frames often use nano-ceramic coatings for enhanced stone-chip resistance. Custom paint jobs have become a trend in the European and American markets, with brands like Canyon and Factor offering PPS (paint personalization systems). Haidelibikes also offers RGB color matching to meet the aesthetic and functional demands of professional riders.

 Inspection and Numbering Before Assembly (Bike Frame Serial Number Chart Function)

Before shipping, each frame undergoes strict ISO 4210 and EN 14766 tests, including static compression, fatigue vibration, and impact resistance. The test bench simulates 100,000 pedaling cycles to detect potential cracks or layer separation. Additionally, our advanced X-ray infrared detection equipment ensures internal defects—such as voids or delamination—are identified early, providing an extra layer of quality assurance beyond standard surface checks.

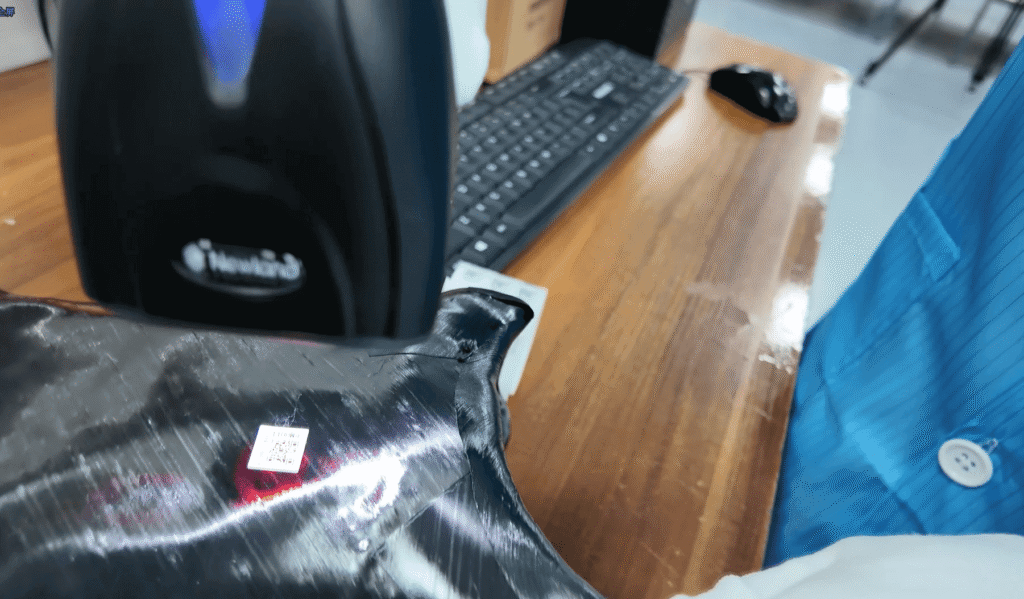

After passing inspection, the bicycle frame serial number is laser-engraved inside the bottom bracket shell. A factory warranty card accompanies the frame, facilitating after-sales traceability and serving as a form of “identity authentication” in Western markets, boosting brand credibility.

Customized Carbon Fiber Bicycle Frame: Where Personalization Meets Performance

 How to Achieve a Bicycle Frame Custom

A true bicycle frame custom process begins with a rider consultation and dynamic fitting. Engineers select different carbon fiber grades (e.g., T700, T1000) and mold types based on riding discipline—such as gravel, road, or TT—and factors like terrain (mountain, city, endurance) and riding intensity.

For example, in a custom carbon road bike frame, a shaped down tube and integrated seat post are often added to enhance rigidity and aerodynamic efficiency.

As the industry puts it:

“Customization isn’t random—it’s the most efficient structure, backed by science.”

In gravel bicycle frame design, achieving both lightweight and durability requires understanding every millimeter—rear fork length, BB drop, trail—because each one affects control and comfort. That’s why experienced riders study “What to Know Before You Customize a Gravel Bicycle Frame.”

 Analyzing Rider Body Shape and Riding Habits

High-end brands like Parlee or Argonaut start with rider data modeling. This includes:

• Body geometry: height, inseam, torso length, shoulder width

• Performance metrics: FTP, average ride duration, power distribution

• Preferred riding posture: upright, race, aero, downhill control

So how to get perfect fit and design? It’s all about converting data into frame geometry and carbon layup structure. Key parameters like reach, stack, and trail directly impact both efficiency and comfort.

We often say:

“You don’t choose the frame—the data chooses you.”

Custom Paint Bicycle Frame Options and Current Design Trends

Today’s custom bicycle frames often include:

• Tube shapes: oval, wing-shaped, or aero-profiled

• Electronic drivetrain integration: Shimano Di2, SRAM AXS with internal routing

• Custom paint: gradients, metallic finishes, UV/ceramic coating

• Structural reinforcement: layered ply at high-stress zones (e.g., BB, rear fork)

• Expanded compatibility: fender mounts, tire pressure sensors, dual bottle cages

In gravel frame customization, riders often choose wider tire clearance (up to 45C) and a lower front triangle for better stability and ride comfort.

At this level, a bike frame is no longer just “fit for riding”—it’s a direct extension of your body, riding style, and terrain demands.

Bicycle Frame Testing for Strength and Durability

Whether it’s a high-performance carbon road bike frame or a rugged gravel bicycle frame, strength and reliability start with rigorous factory testing. Before hitting the market, each frame must prove its integrity through both lab simulations and real-world rides.

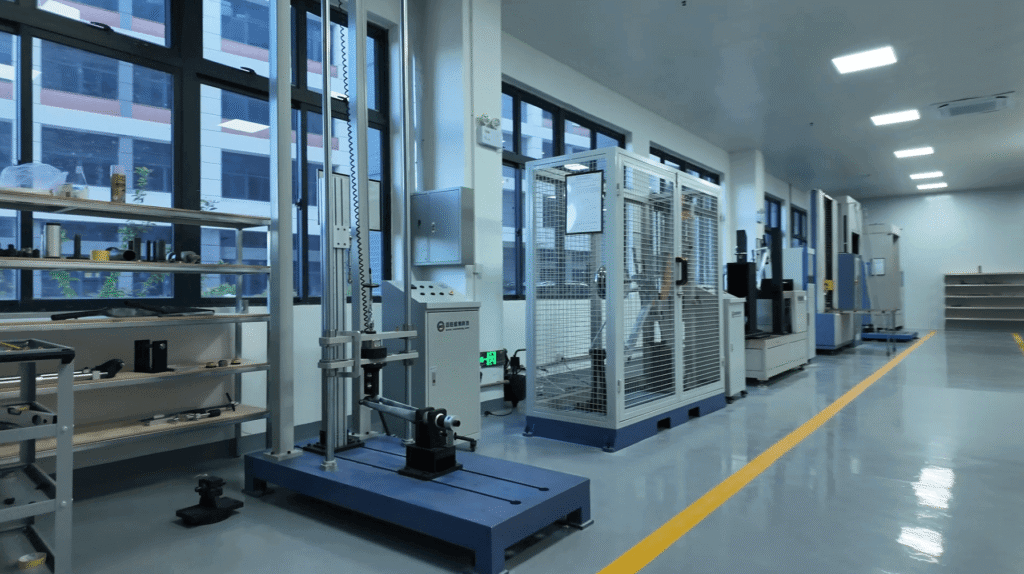

 Laboratory Testing: Fatigue, Impact, and Stiffness

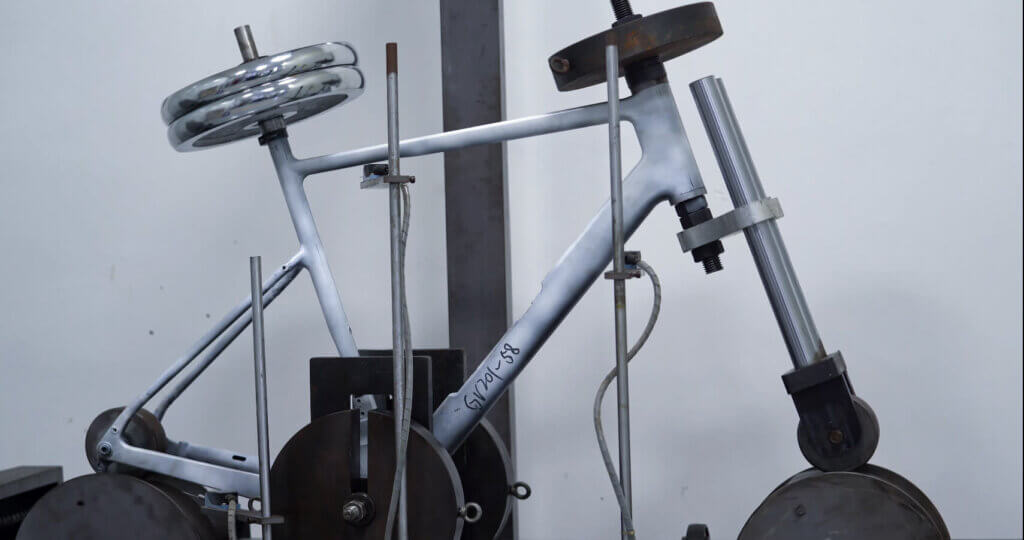

All major manufacturers follow global standards such as ISO 4210 and EN 14766 to ensure structural reliability. Key tests include:

• Fatigue Test: Simulates 100,000+ pedal cycles to test the endurance of carbon fiber layers.

• Impact Test: Mimics crash-like forces at stress points (e.g., head tube, down tube).

• Stiffness Test: Measures frame deformation under load, especially at the bottom bracket and fork crown.

As industry insiders say:

“A frame isn’t truly born until it passes the lab.”

 Field Testing and Competitive Feedback

Top carbon bicycle frame manufacturers often conduct field validation using pro riders in real race conditions. Testing on gravel trails, cyclocross, and UCI-sanctioned events provides invaluable feedback. A frame that performs in harsh terrain earns the unofficial title of battle-ready.

 How Is Each Carbon Frame’s Safety Ensured?

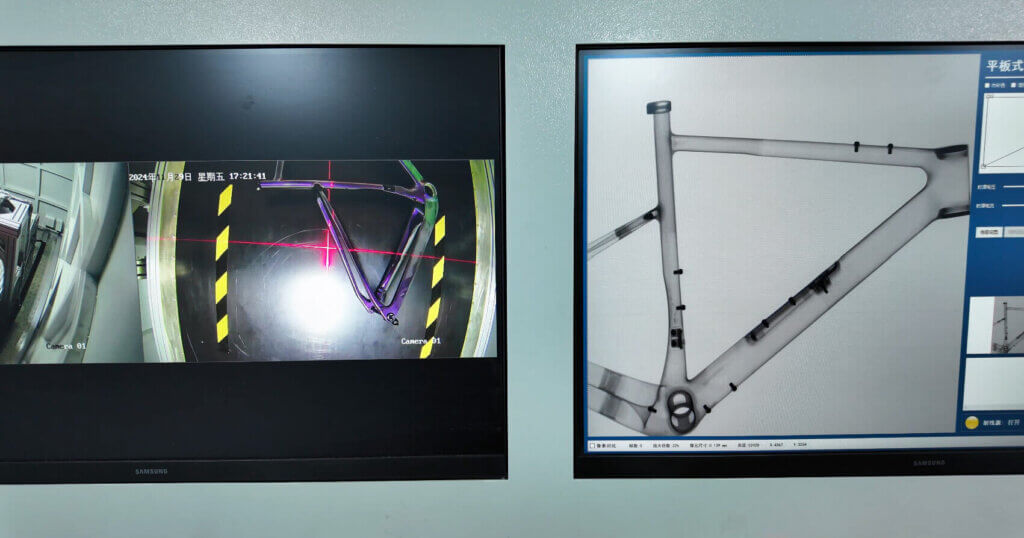

In production, manufacturers scan and sample each frame for structural issues using ultrasonic or infrared testing. These detect internal voids or delamination that aren’t visible to the eye.

Every high-end carbon frame includes:

• A bicycle frame serial number chart engraved near the bottom bracket

• Factory batch info and test records for after-sales traceability

Among premium brands, a formal test report is not just documentation—it’s a trust symbol for consumers.

Global Landscape of Carbon Fiber Bicycle Frame Manufacturers

The global carbon fiber bicycle frame market is divided between Asian production hubs and Western design brands. Whether you’re seeking a white-label OEM frame or a fully custom model, a manufacturer’s R&D capacity, mold library, and testing system are key indicators of reliability.

 Leading Carbon Bicycle Frame Manufacturers in China

China is home to the world’s most concentrated carbon frame manufacturing base. Top Chinese bicycle frame manufacturers include:

• XDS, Hongfu, HaideliBikes,Velobuild

These companies offer:

• Independent mold development

• OEM services for global brands (often referred to internally as mold-sharing platforms)

• Support for custom bicycle frame orders and small-batch runs

Most use a hybrid of compression molding and RTM (Resin Transfer Molding)—a balance of cost and performance ideal for mid-to-high-end frames, including gravel and aero road bike frames.

 European and American Brand Features

Brands like Cervélo, Specialized, Cannondale, Look, and TIME focus on engineering and rider feedback while outsourcing production. Their technical advantages include:

• Deep bike-fit geometry databases for personalized frame modeling

• Full fatigue and impact test compliance (ISO + internal protocols)

• Use of innovative materials—e.g., TIME’s in-house woven carbon fiber

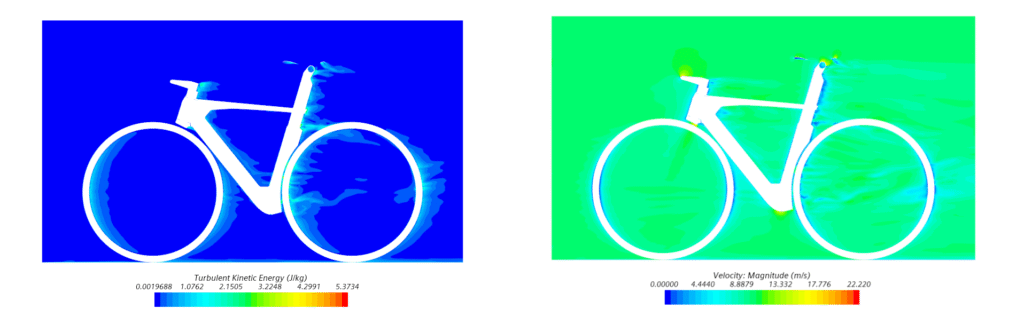

They also integrate CFD aerodynamic simulation and wind tunnel testing to create performance-optimized designs for Western riders.

 How to Choose a Reliable Carbon Frame Manufacturer

Whether you’re a brand, bike shop, or enthusiast seeking a custom carbon frame, consider these criteria:

• Certifications and test reports: ISO, EN, third-party audits

• Customization flexibility: Does the bicycle frame factory support small batches or unique designs?

• Process transparency: Are carbon grades, curing parameters, and prepreg specs disclosed?

• Proven customer cases: Are there examples of successful collaborations and documented testing?

Many boutique bike shops in the West are now choosing flexible, transparent manufacturing partners over large, rigid OEMs.

How to Choose a Carbon Fiber Bicycle Frame That Suits You?

The essence of purchasing a carbon fiber bicycle frame lies in balancing your riding needs, budget, and technical understanding. Whether your focus is commuting, endurance rides, or competitive racing, your intended use will guide whether to select a standard mold product or pursue a custom bicycle frame.

If ultimate performance and brand prestige are priorities, European and American brands such as Cervélo and TIME excel in structural tuning and aerodynamic design.

Don’t overlook after-sales support: compatibility with standard components, ease of carbon fiber bicycle frame repair, and availability of frame repainting services all affect whether a frame becomes a long-term riding partner.

In summary, a good carbon fiber frame depends on three essentials: solid structure, verified data, and dependable service.
