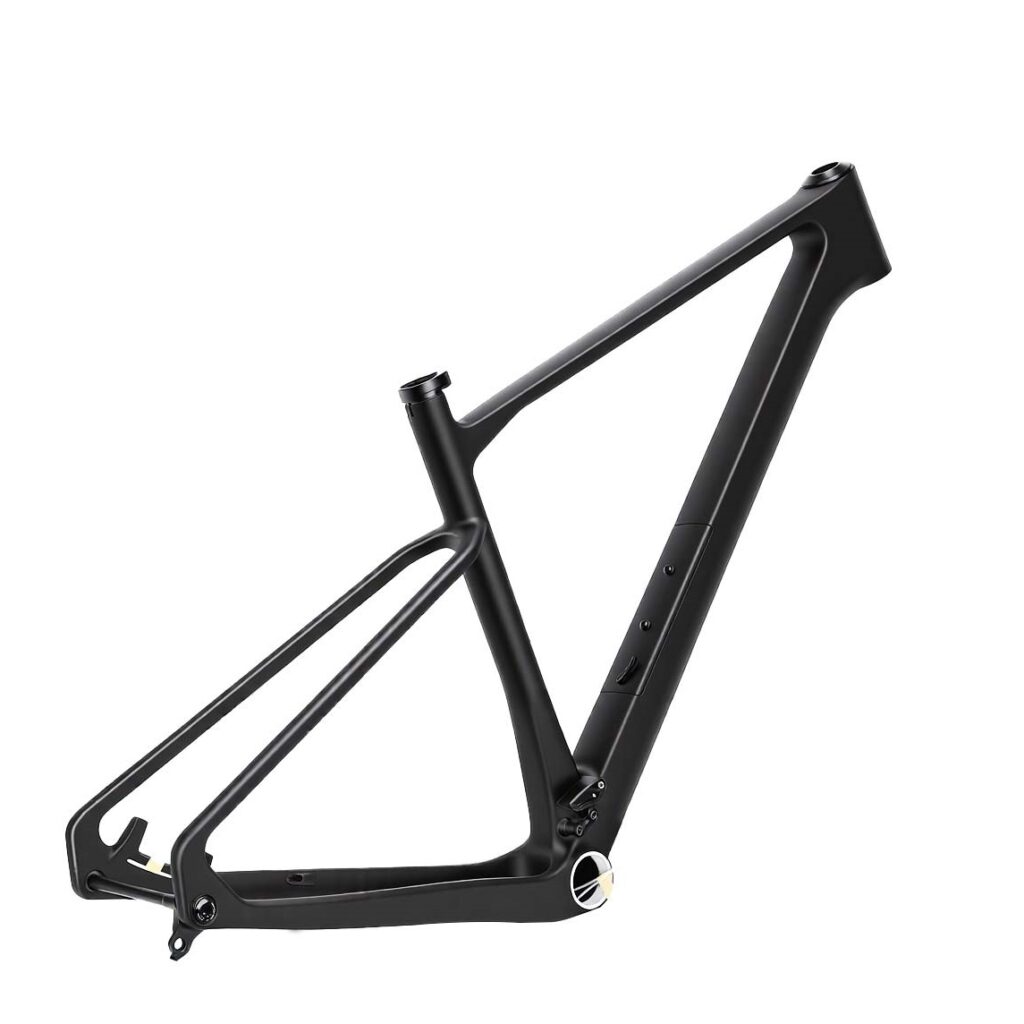

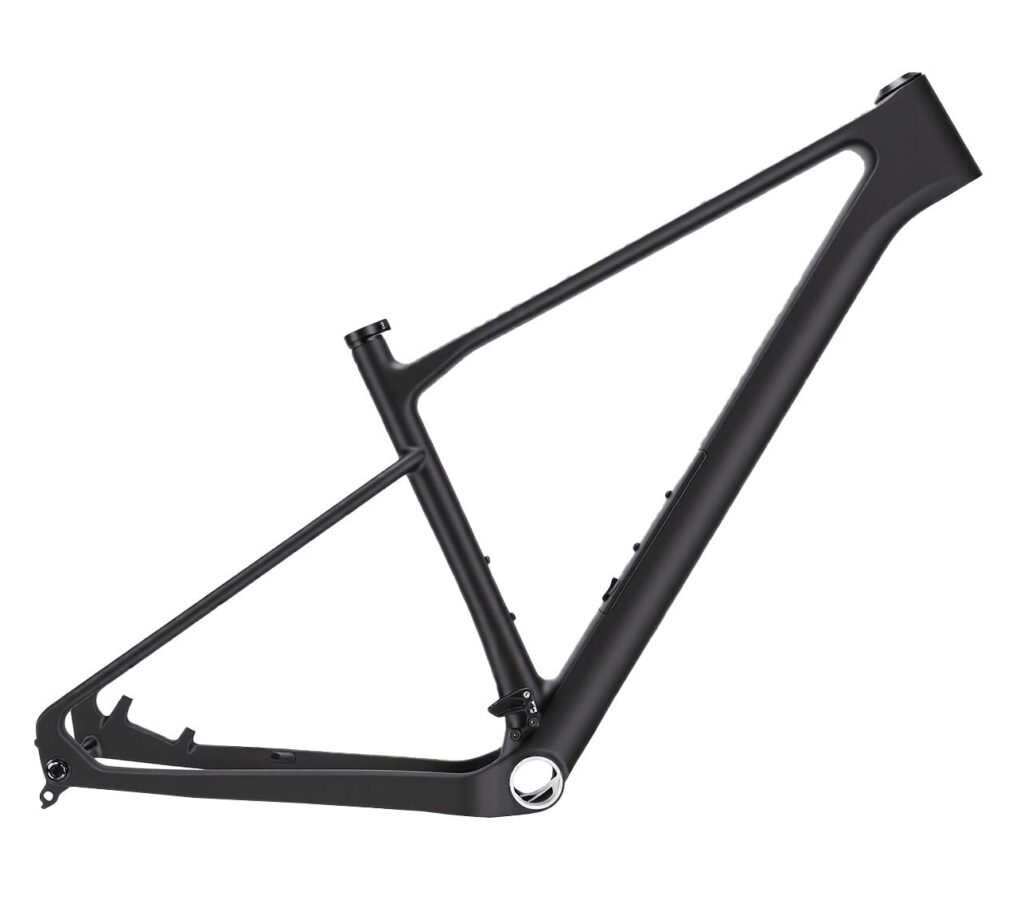

Carbon 32er MTB Frame
We kept all the performance advantages of 32er MTB frames: exceptional stability, smooth rollover, and unbeatable efficiency. And made improvements where it counts.
- A lower standover height for added on-trail confidence.
- A reworked rear triangle for increased stiffness and optimized tire clearance.
- Redesigned geometry for quicker, more agile handling and precise cornering.
| Item | Specification |
| Model | XC832 |
| Size | M/L/XL |
| Material | T1000 Full Carbon Fiber |
| Max tires | 32erx2.4” |
| Headset | 1 1/2”-1 1/2″ (52-52MM) |
| Suitable Fork | axle 110x15mm, suspension fork travel 100-110mm，Fork Offset 46 mm |
| Rear Axle | boost 157x12mm |
| Seatpost | 31.6mm(compatible for dropper seatpost） |
| Rear Hanger | UDH hanger |
| Bottom Bracket | T47(73mm) |
| Brake | disc brake 180m(max 203mm） |
| Max Crankset | max 36T |
| Package Includes | frame +accessories |

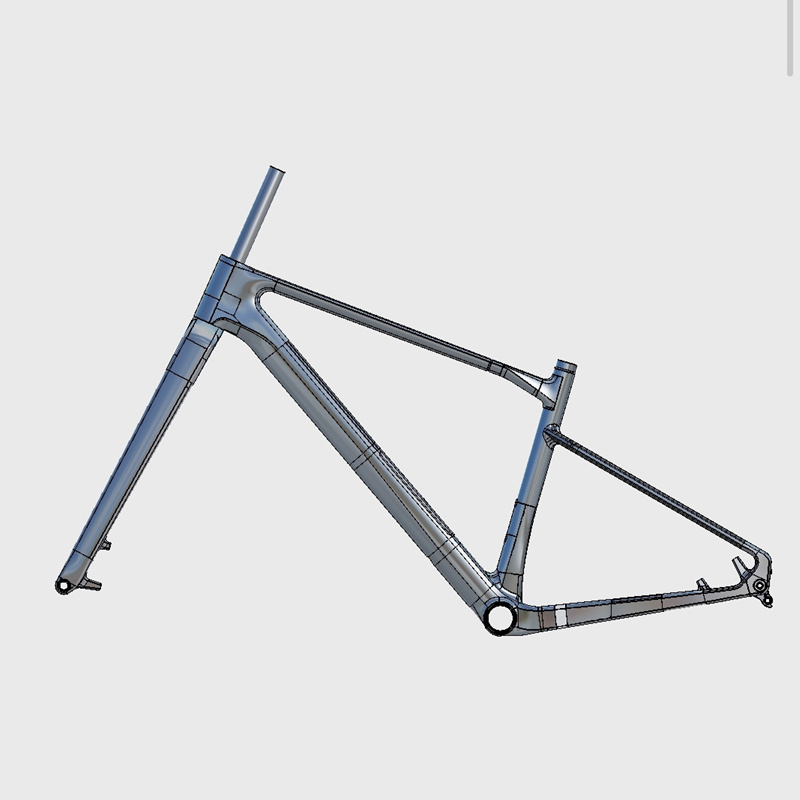

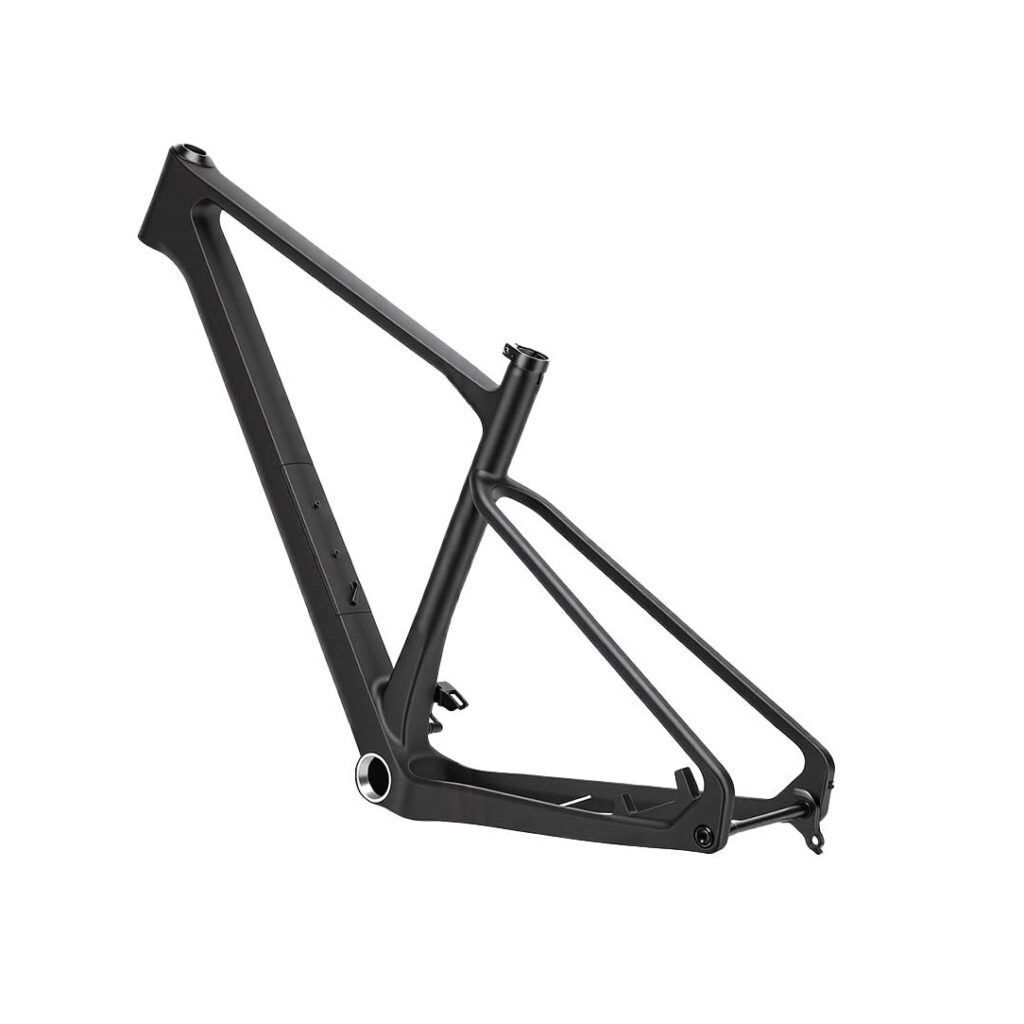

XC832 32ER MTB Frame

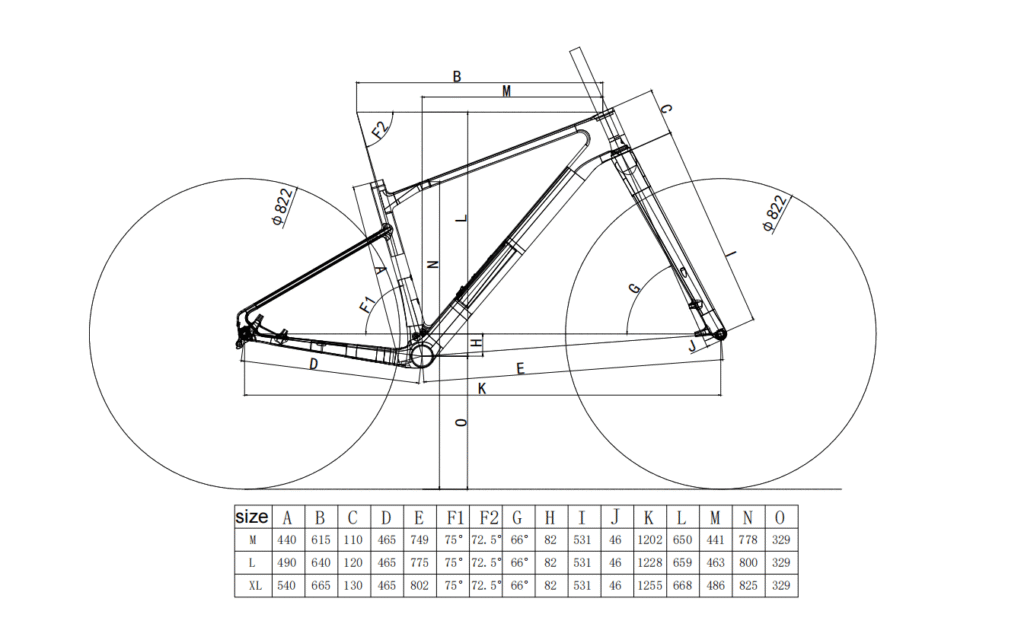

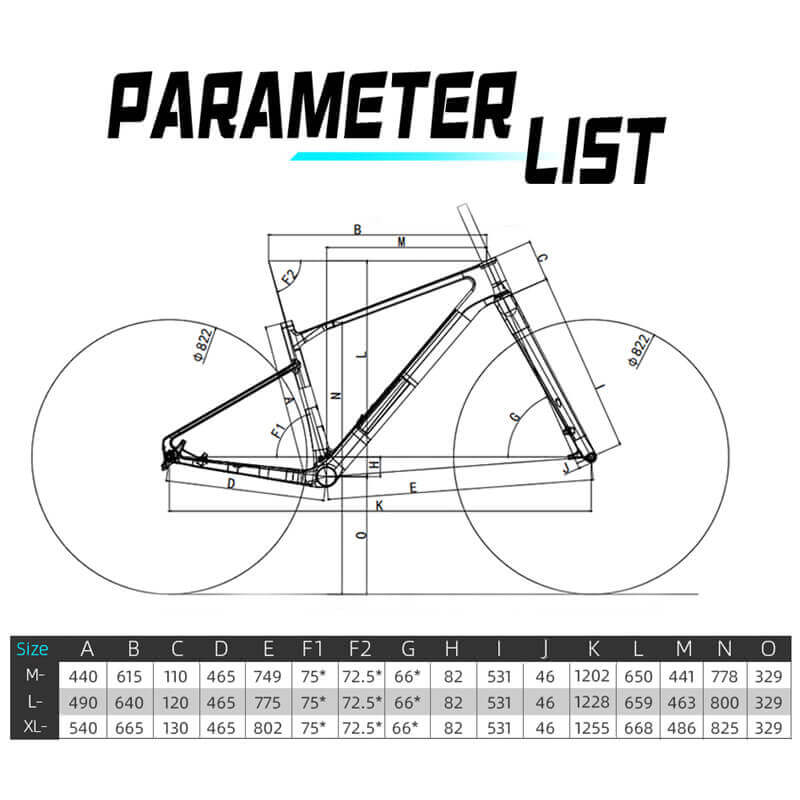

- With a 32er wheel size, the axle height is increased by 30mm compared to a 29er, making this a true frame geometry upgrade, not just a minor tweak.
- It maintains an ideal Reach/Stack ratio, ensuring a balanced, agile ride without unnecessarily elongating the front end or creating “boat-like” steering.

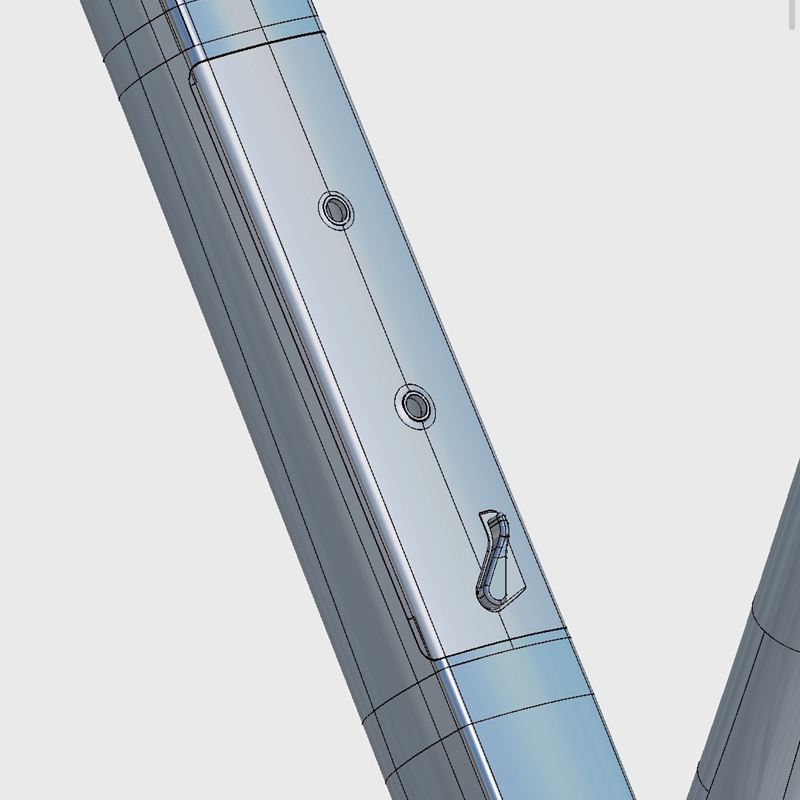

With Magnetic Storege Box
- The integrated down tube storage box in the frame provides convenient storage for tools and essentials, keeping your setup clean and efficient for long rides and rugged trails.

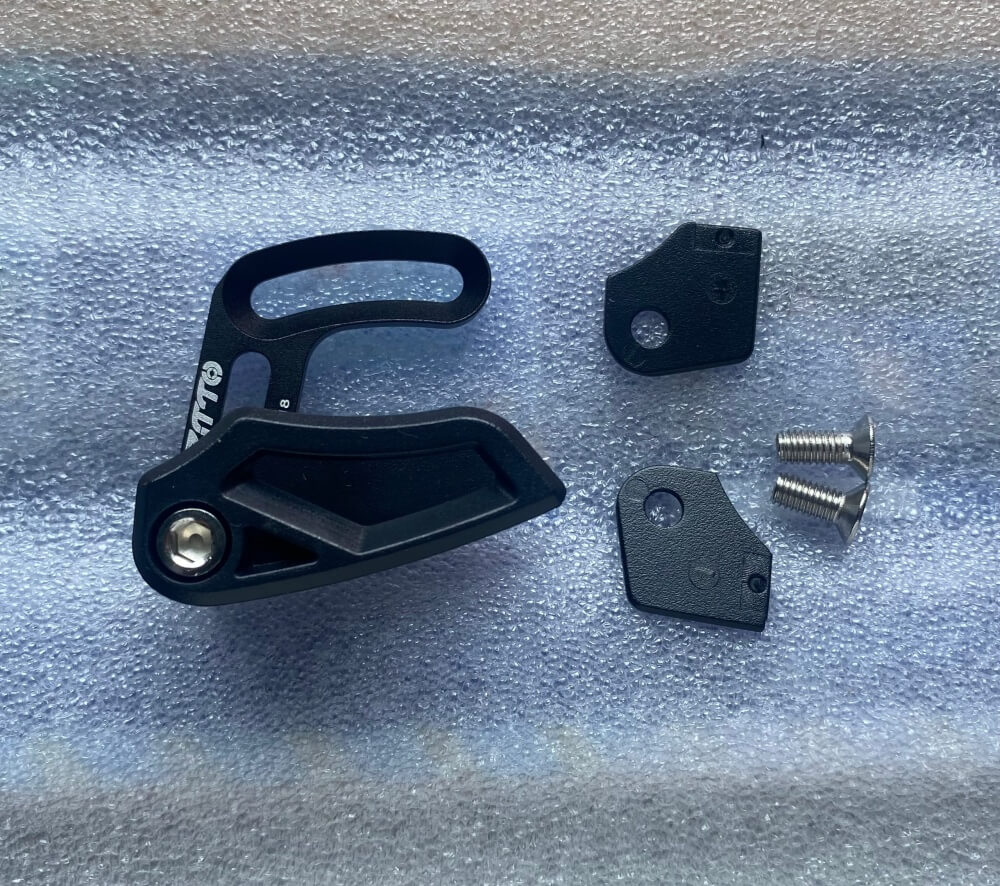

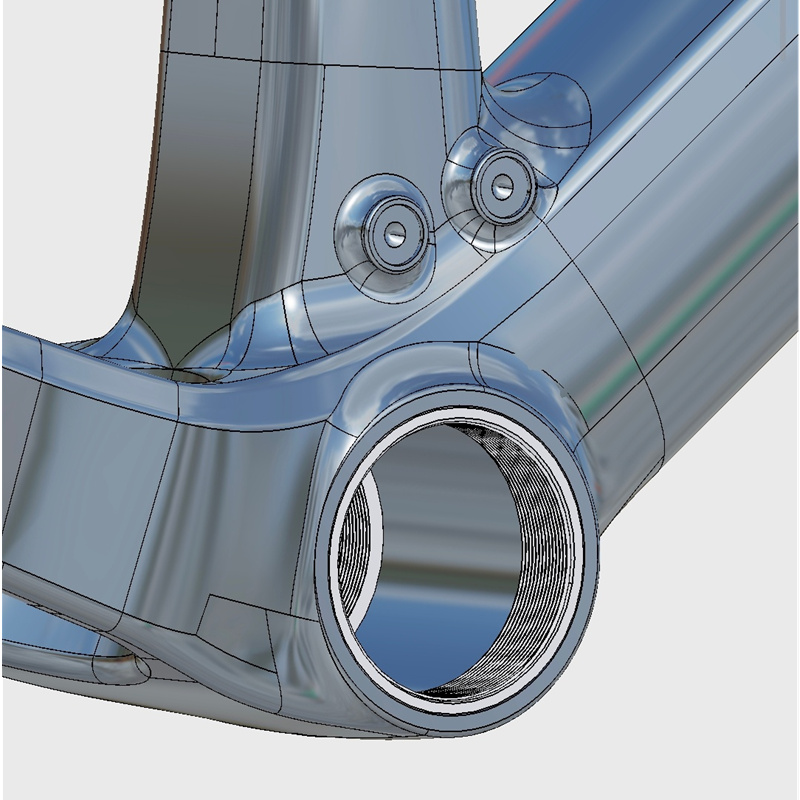

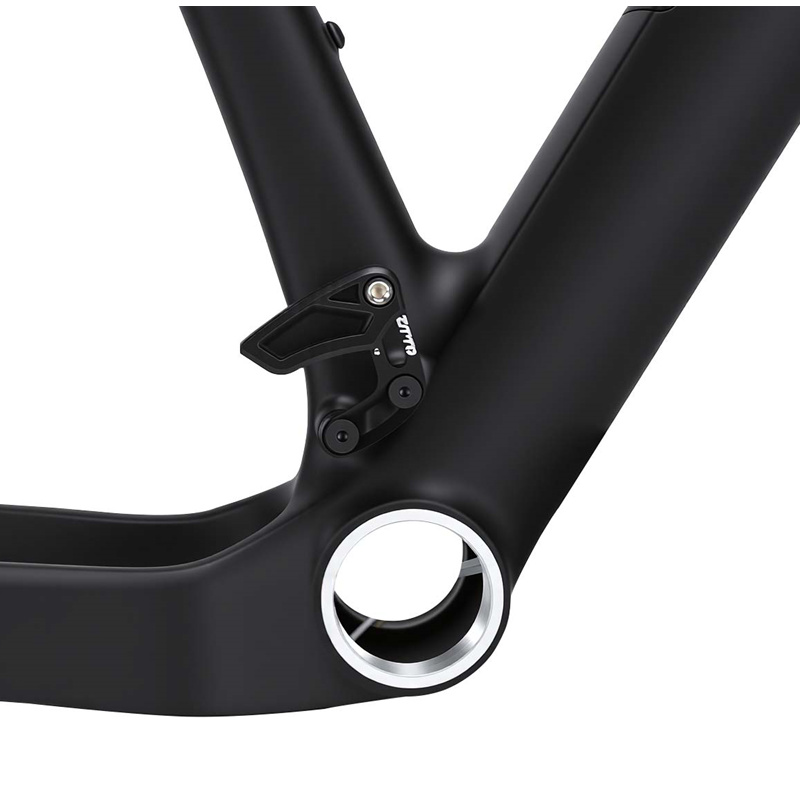

T47 BB & With Derailleur Chain Tensioner
- Carbon 32er MTB frame features a self-contained front derailleur chain tensioner, ensuring smooth gear shifts and reducing chain drops on rough terrain.
- Enhanced drivetrain performance and secure chain retention improve ride reliability and efficiency.

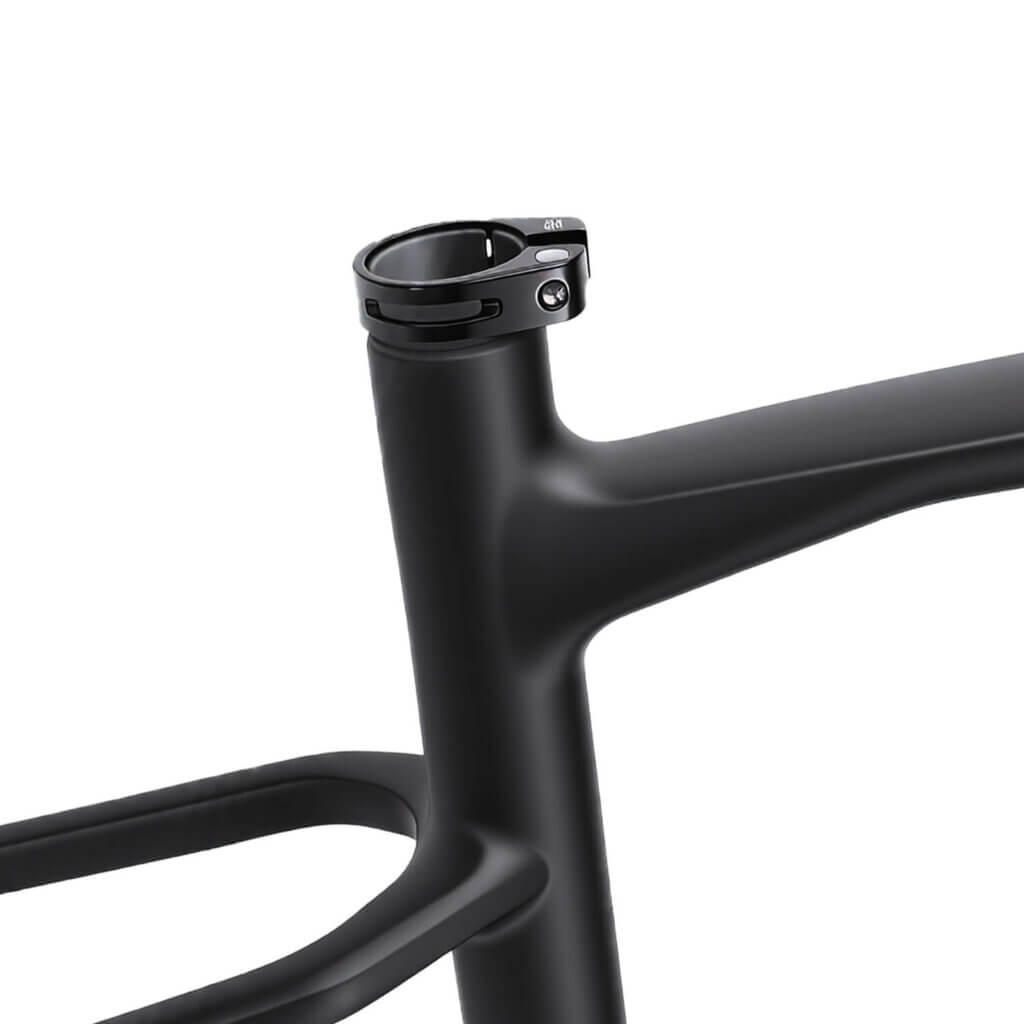

Compatible for 31.6mm Dropper Seatpost
- Compatible with dropper seatposts, allowing for quick and smooth saddle adjustments.
Max 32erx2.4”’ Tire Clearance
- With a maximum tire clearance of 32er×2.4”, this frame allows for optimal traction and stability on demanding trails, making it perfect for riders who push the limits in all conditions.

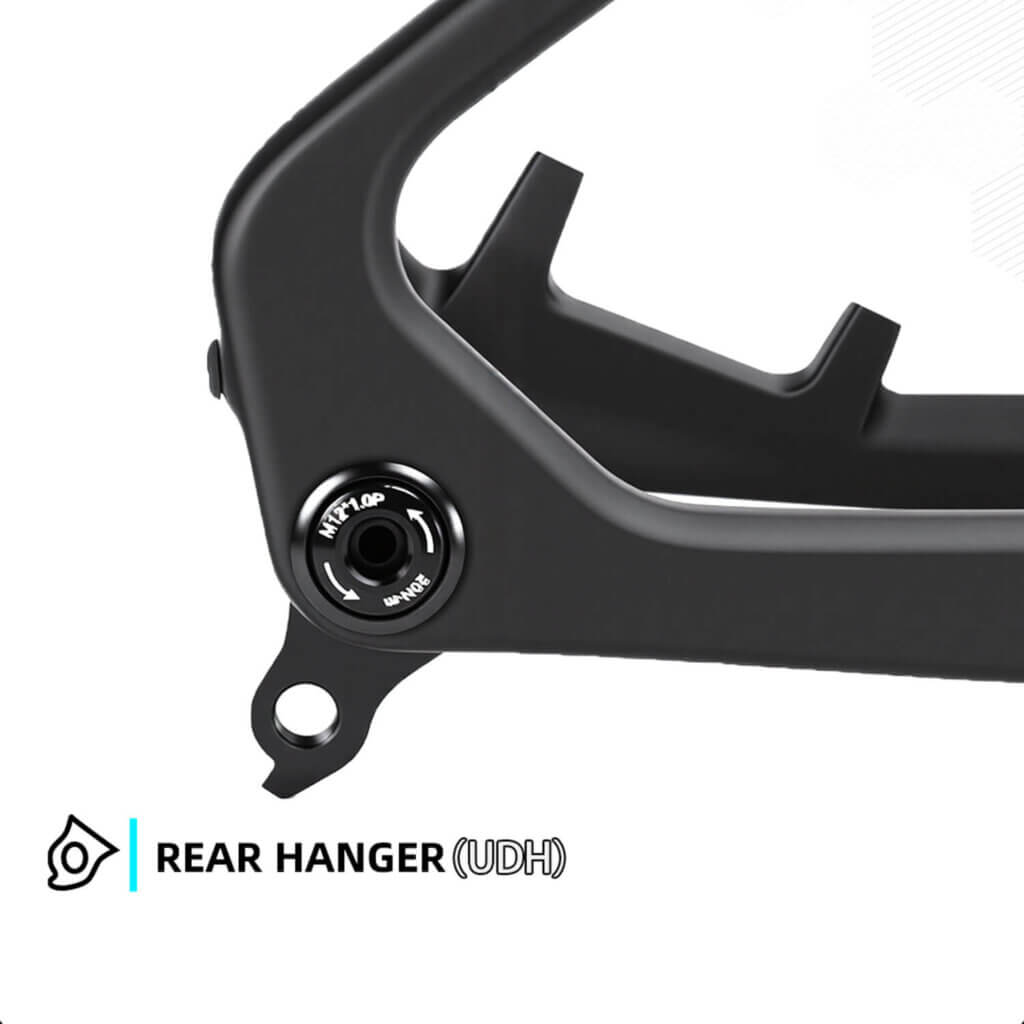

UDH Rear Hanger
- UDH hanger design on this carbon 32er mountain bike frame offers seamless compatibility, ensuring smooth shifting performance.
Haidelibikes Factory
- Lead Time: Efficient production and on-time deliver.
- Custom Painting: Yes, fully customizable designs.
- OEM & ODM: Welcome-your brand, our support.
- MOQ: Starting from just 5 sets.
- Sample Policy: Samples available on request.
Advanced Production Facilities
- ISO-certified testing lab ensuring compliance with global standards.
- Exclusive Infrared Detection System – Our proprietary technology for internal defect inspection, ensuring every frame meets the highest safety and durability standards.
Manufacturing Techniques
- Blow molding: for lightweight frames and high-strength frame structures.
- EPS/latex molding: ensures precision interiors shaping.
Full-Service Capabilities–One-Stop Solution
- Design → Prototyping → Mass production → Custom Painting
- Masterful Painting Craftsmanship–Our expert painters, with 10+ years of experience, deliver flawless custom finishes, ensuring both durability and aesthetic excellence.
