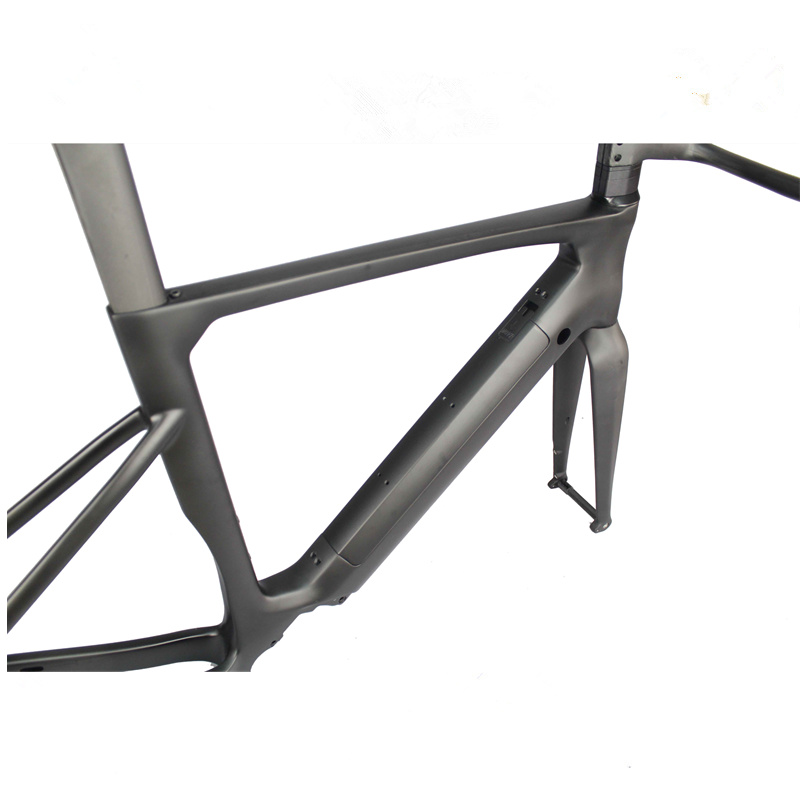

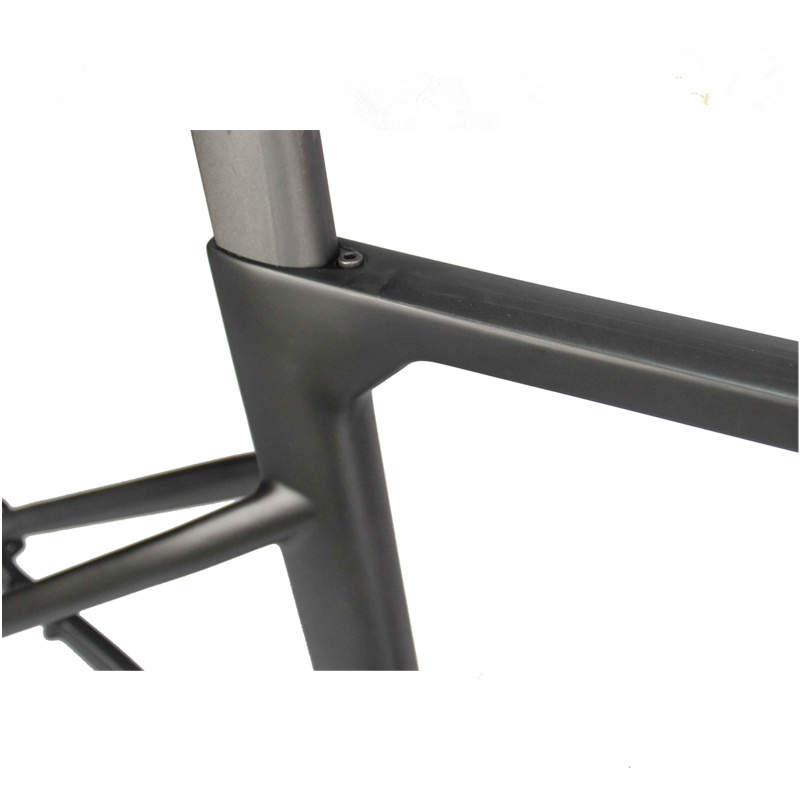

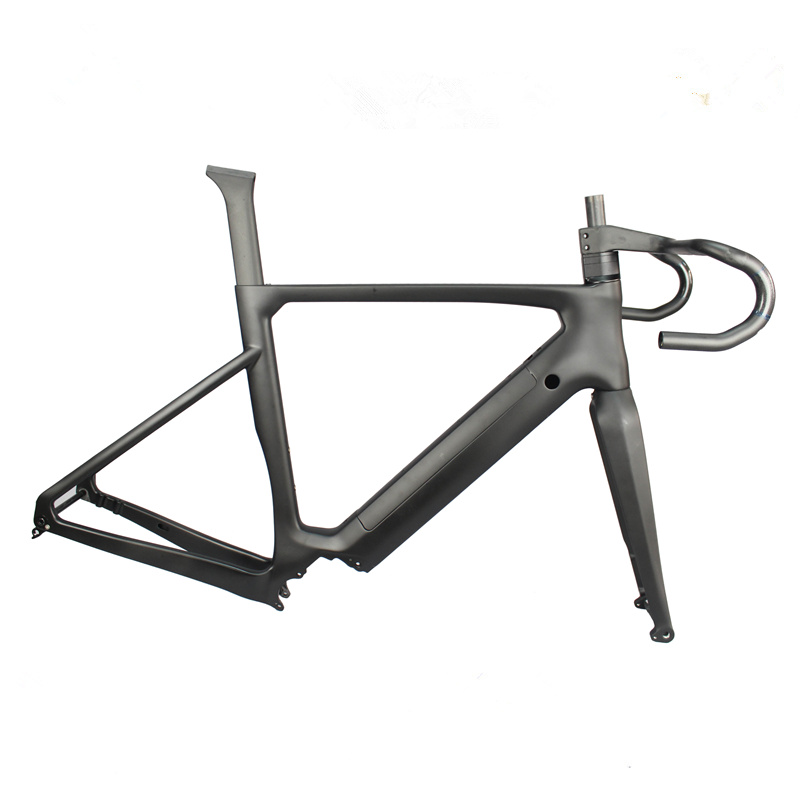

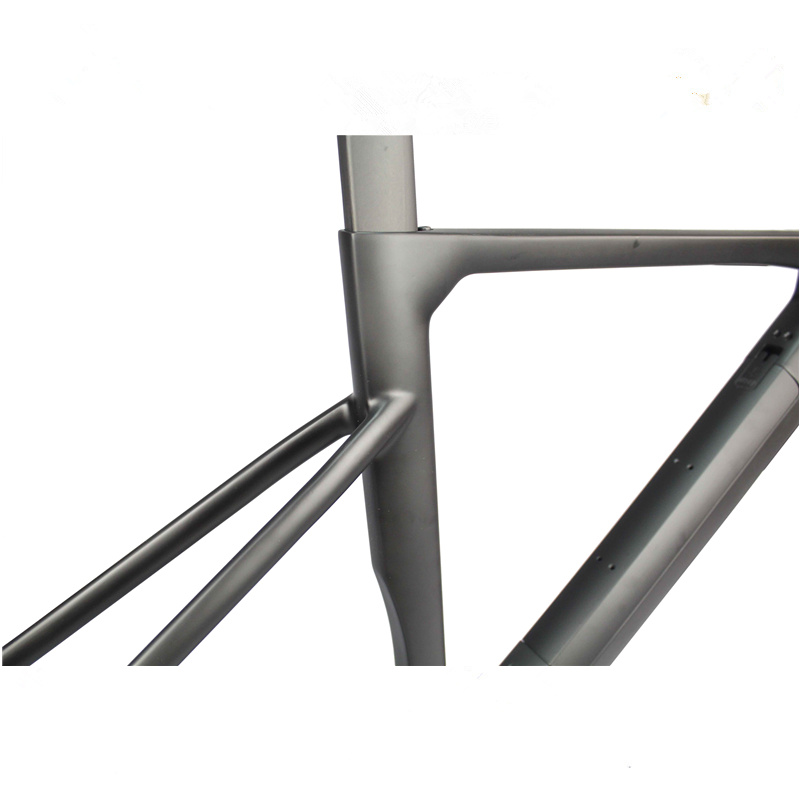

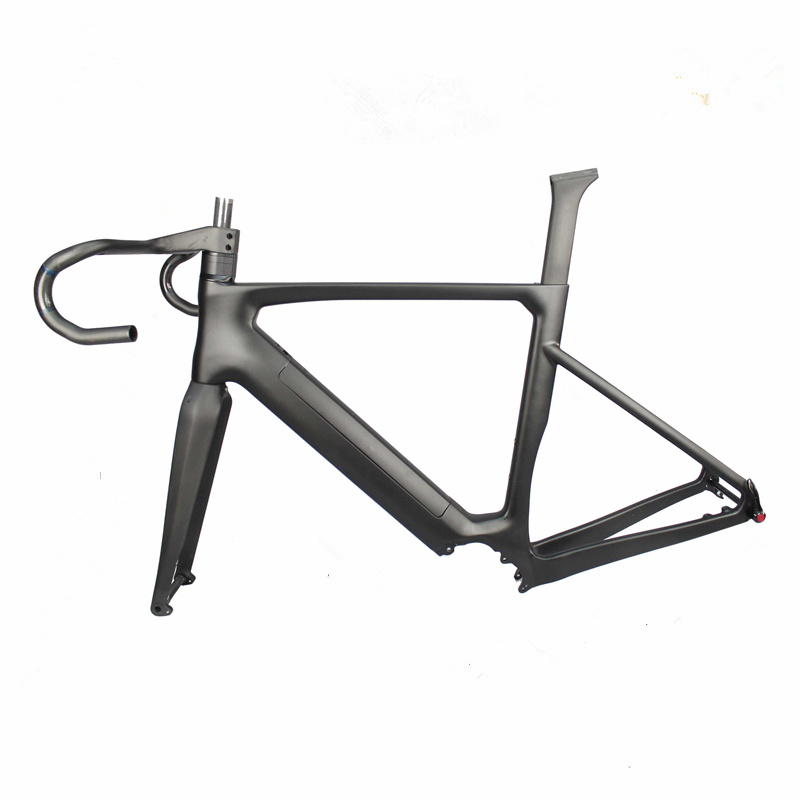

Carbon Fiber ebike Frame
Toray T1000 full carbon fiber: Lightweight yet ultra-strong, this ER800 frame ebike delivers high stiffness and durability for long rides. Perfect for performance e-bikes, it’s compatible with various ebike frame kits.
Inner cable routing: Sleek design with fully integrated cable channels reduces drag, protects wiring, and ensures a clean look for your ebike frame. Ideal for modern electric bike builds.
| Item | Specification |
|---|---|
| Model No. | ER800 |
| Material | Toray T1000 full carbon fiber |
| Max Tire Size | 700 × 35C |
| Frame Size | 52cm 54cm 56cm 59cm |
| Handlebar | 90/100/110/120mm*400/420/440mm |
| Brake Type | Flat mount disc brake, 140mm |
| Material | Toray T1000 Carbon Fiber |
| Motor | BAFANG M800 |
| Battery | BAFANG M800 battery |
| Control panel | BAFANG |
| Cable Routing | Internal cable routing |
| Headset | 1-1/2” to 1-1/2” |
| Seatpost | specified |
| Thru Axle | Front: 100×12/15mm, Rear: 142×12mm |
| Included Components | Frame + Fork + Seatpost + Handlebar + accessories |

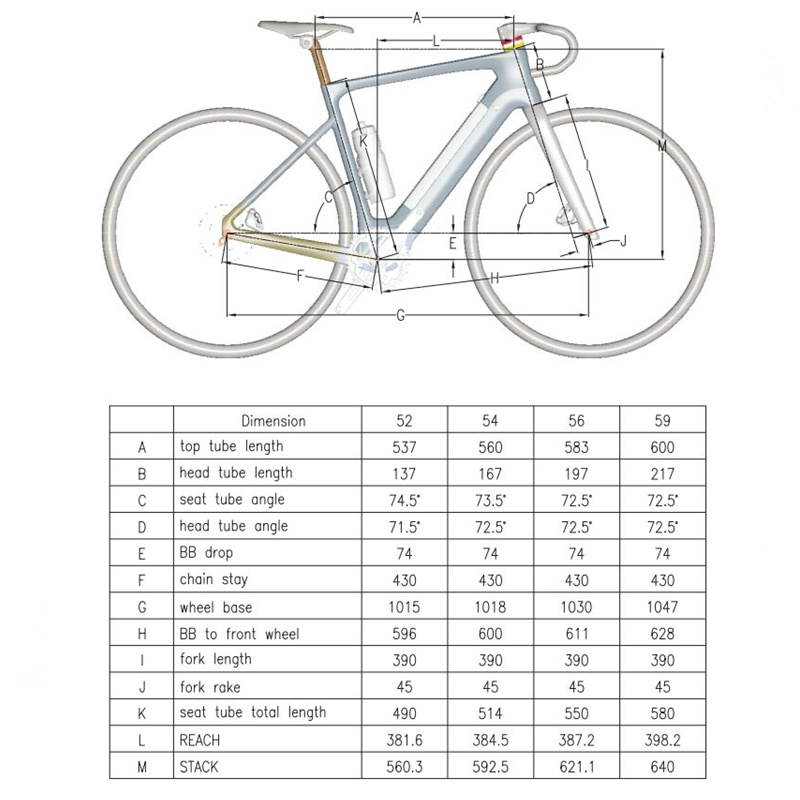

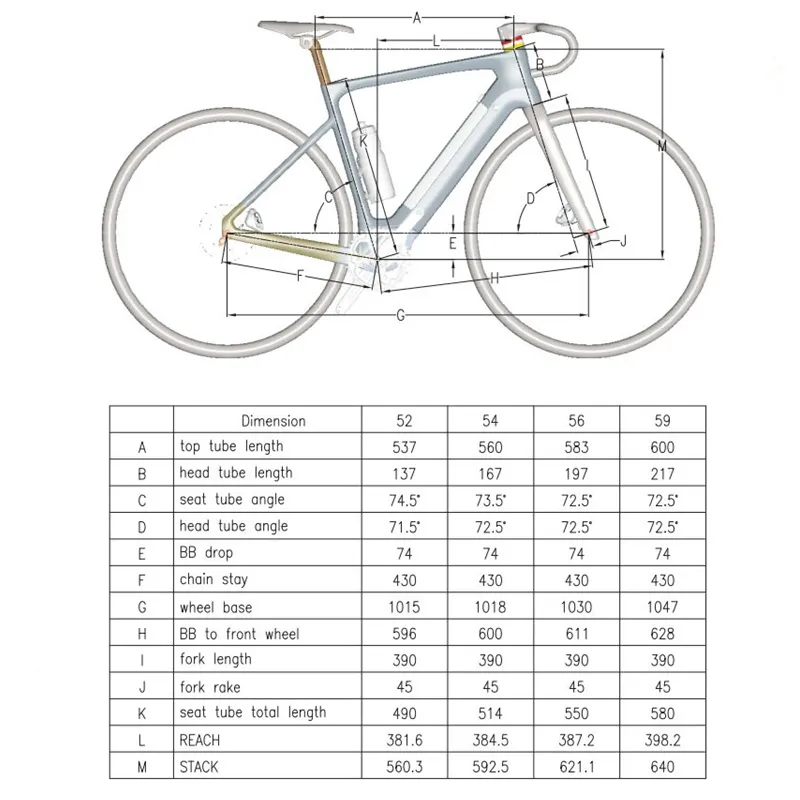

Frameset Available Sizes
Frame sizes: ER800 carbon fiber electric bike frame comes in 52, 54, 56, and 59cm, offering a perfect fit and responsive control for performance ebike frames.
Handlebar options: Carbon handlebars available in 90/100/110/120mm × 400/420/440mm for better aerodynamics and comfort on any electric bike build.
Internal Cable Routing
- ER800 carbon ebike frame uses hidden cable design for a clean, aerodynamic look and better cable protection, perfect for high-performance electric bikes.
Max tire: 700*35C
- It supports up to 700×35C tires, offering enhanced stability, smooth ride, and versatility for all-terrain electric biking.

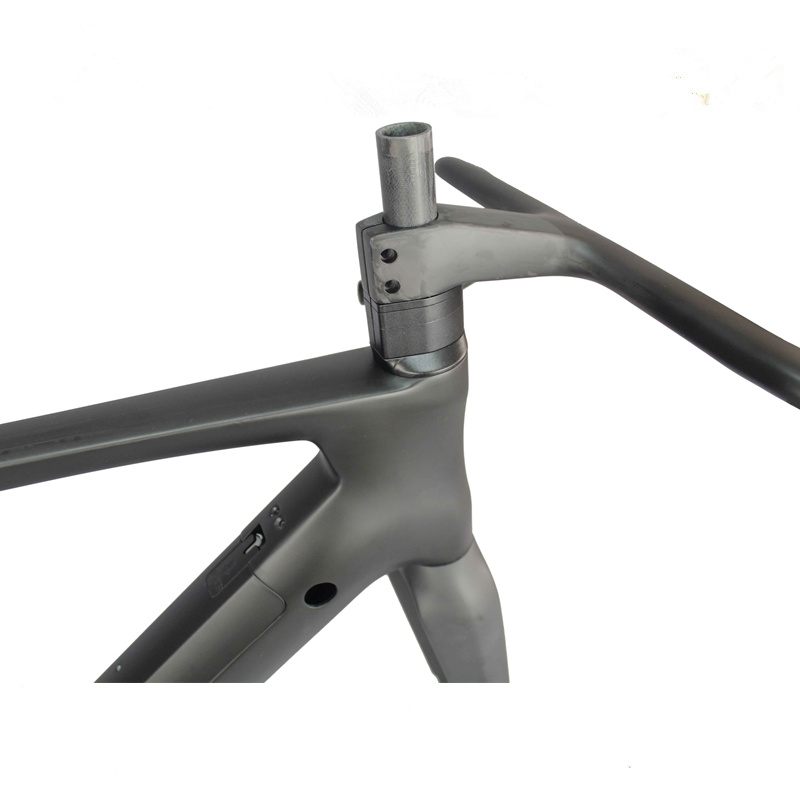

Headset 1/2” – 1 /2” Straight Tube
ER800 frame for ebike features a 1/2”–1/2” straight tube headset, ensuring stable handling, precise steering, and improved control for high-speed electric bike rides.
Suitable Motor and Battery
Motor: Equipped with the BAFANG M800, this carbon fiber ebike frame delivers powerful torque and smooth acceleration for any terrain.
Battery: Paired with the BAFANG M800 battery, offering extended range and reliable energy efficiency.
Control panel: Features a BAFANG smart display for real-time riding data, seamless control, and enhanced riding experience.
Custom ebike Frame– Personalized Colors
| Service Details | Description |
|---|---|
| Full Customization Service | Paint, decals, logo placement, clear/matte/glossy finishing |
| Compatibility | Compatible with most ebike bike frame geometries |
| MOQ | 1 piece – Low volume friendly for startups or prototyping |
| Lead Time | <10 pcs (non-complex custom paint): 15–20 working days |
| Up to 50-100 pcs: delivered within 1 month | |
| Sample Orders | Supported – Test before massive production |
| Shipping | Worldwide shipping(ePacket/UPS/FedEx/DHL/DPD Free taxes shipping/by air/by sea), depend on buyer’s choice, trusted by global brands & builders |
Q: What makes a carbon fiber ebike frame different from other materials?
A: Carbon fiber electric bike frames are lighter, stiffer, and more durable than aluminum or steel, providing better performance and handling for ebike frames.
Q: Can I use any motor and battery with a carbon ebike frame?
A: Most carbon ebike frames are compatible with standard motors and batteries, but always check specifications to ensure proper fit and safe installation.
Q: How do I maintain my frame for ebike?
A: Regular cleaning, avoiding harsh impacts, and checking bolts and cable routing keeps your carbon fiber ebike frame safe, smooth, and long-lasting.
Q: Are carbon ebike frames suitable for all riders?
A: Yes, carbon fiber ebike frames come in multiple sizes and designs, offering lightweight, strong, and efficient options for riders of different heights and preferences.
Haidelibikes Factory
- Lead Time: Efficient production and on-time deliver.
- Custom Painting: Yes, fully customizable designs.
- OEM & ODM: Welcome-your brand, our support.
- MOQ: Starting from just 5 sets.
- Sample Policy: Samples available on request.
Advanced Production Facilities
- ISO-certified testing lab ensuring compliance with global standards.
- Exclusive Infrared Detection System – Our proprietary technology for internal defect inspection, ensuring every frame meets the highest safety and durability standards.
Manufacturing Techniques
- Blow molding: for lightweight frames and high-strength frame structures.
- EPS/latex molding: ensures precision interiors shaping.
Full-Service Capabilities–One-Stop Solution
- Design → Prototyping → Mass production → Custom Painting
- Masterful Painting Craftsmanship–Our expert painters, with 10+ years of experience, deliver flawless custom finishes, ensuring both durability and aesthetic excellence.
