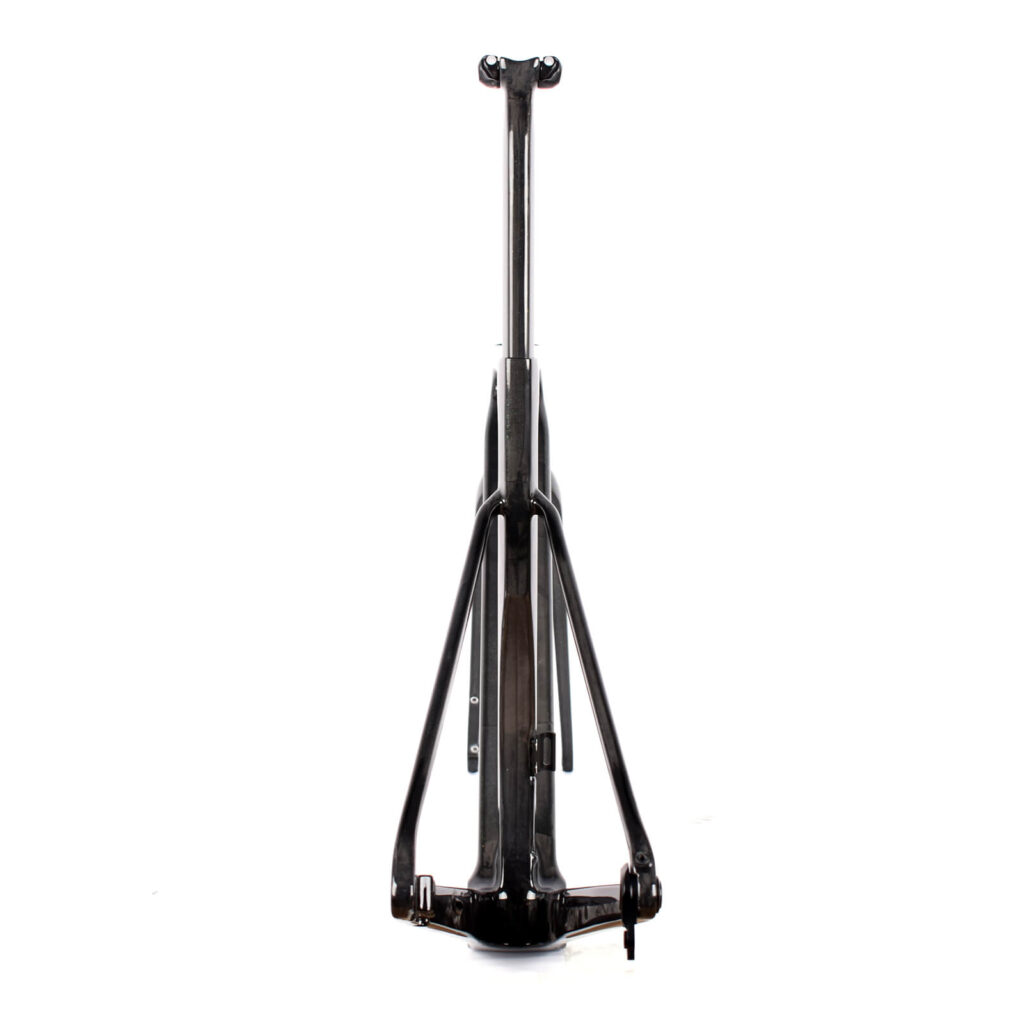

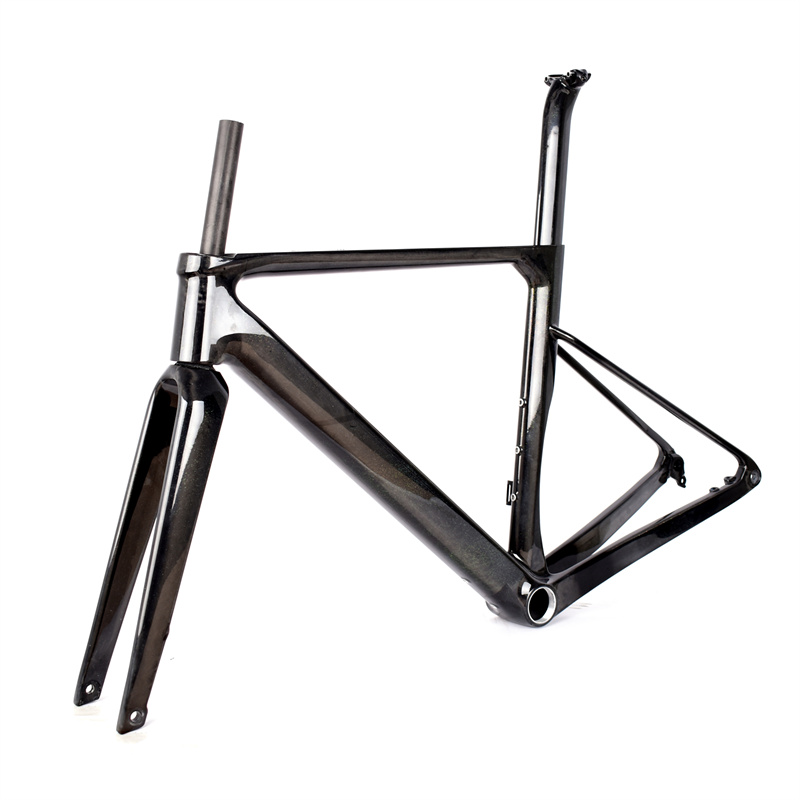

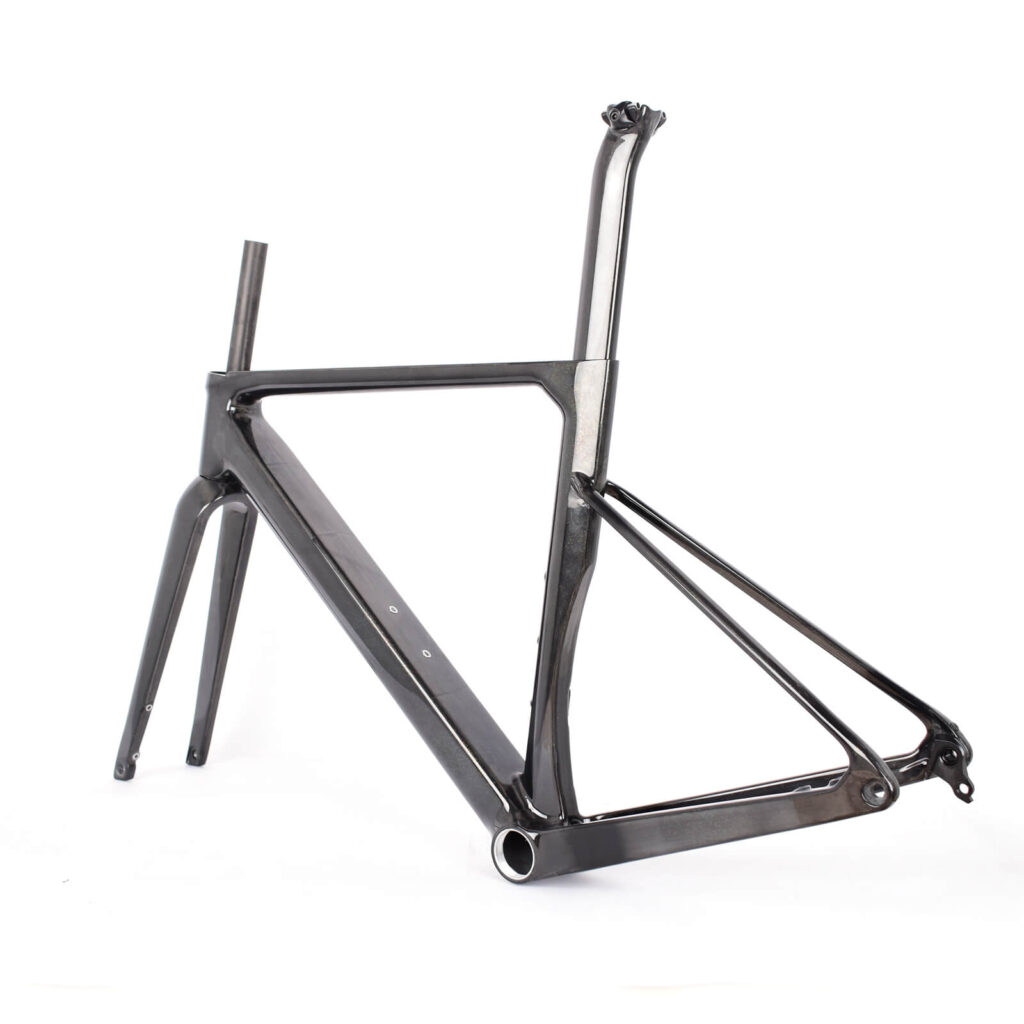

CR301-D All-Road Disc Brake Road Bike Frame

All-Road Frameset Carbon Fiber

  •  Featuring a durable carbon fiber construction with UDH dropout, it’s ready for any adventure.

  • The endurance-focused geometry offers superior comfort and control on long rides.

  • With 38C tire clearance, this disc brake road frame adapts effortlessly to varied road surfaces, offering riders ultimate versatility and speed.

all road bike frame

Model NO.: CR301
Material: T800+T1000+EPS technology

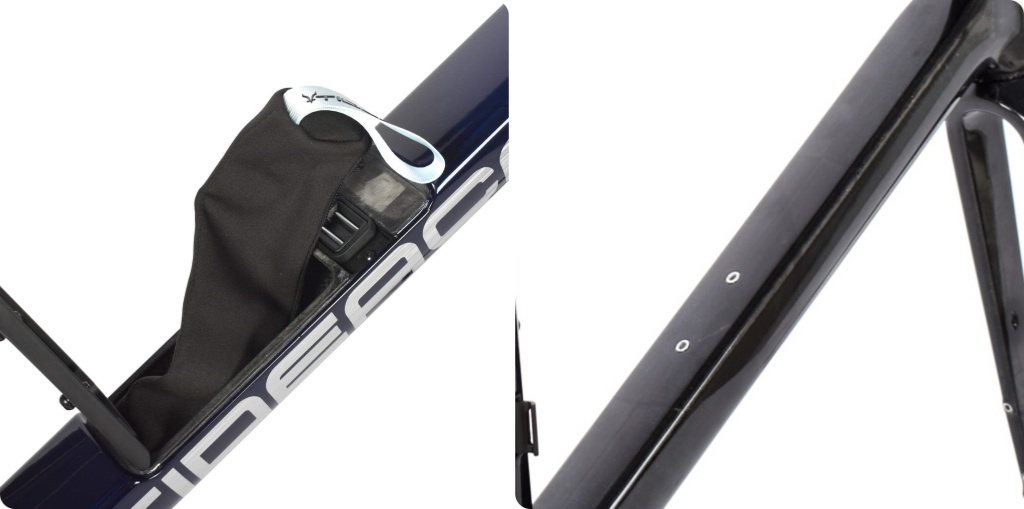

Version: with storage box/no storage box for choice
Frame Sizes: 47/50/52/54/56/58cm(XXS/XS/S/M/L/XL)
Axle: rear 142*12mm, front 100*12mm

Headtube: 1-1/2′ to 1-1/2
Rear hanger: UDH
Weave: UD
Max Tire Szie: 700*38C
Seatpost length: 400mm
Seatpost insert length suggestion: 7-12cm

Cable routing: all internal full hidden cable
Frame weight: 875+/-40g (S UD matte)
Fork weight: 370+/-15g
BB: T47(85.5mm)
Includes: frame+fork+seatpost+handlebar+headset+seatpost clamp+thru axle shaft

CR301 All-Road Geometry

  • Crafted from T1000+T800 carbon fiber material, it offers an exceptional stiffness-to-weight ratio, delivering lightweight performance and maximum power transfer for all-road cycling.
  • All-road bike frame offers a perfect blend of speed and comfort.Designed with wide tire clearance and endurance geometry, it ensures versatile road performance on any surface.
  • Using EPS fifth-generation technology, the CR301D carbon road bike frame achieves precise molding, increased strength, and a flawless inner wall for better durability and ride quality.
all road bike frame carbon

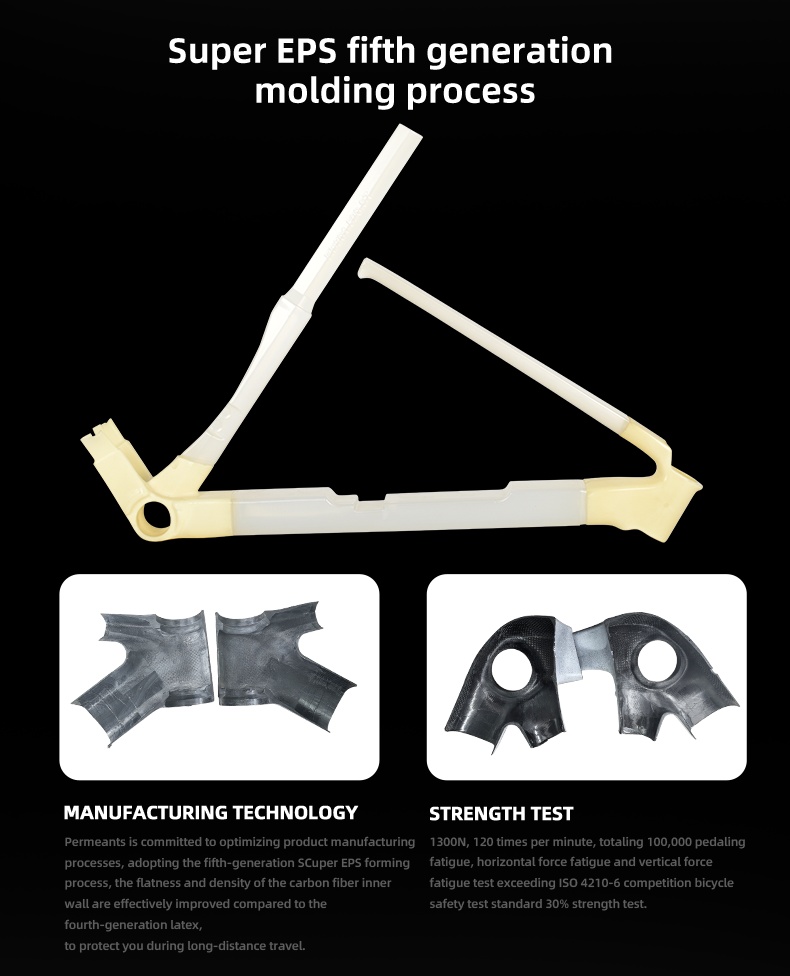

EPS fifth-generation Technology+Carbon Fiber

  • The CR301-D uses advanced EPS molding to create a lightweight carbon road frame with enhanced precision and internal smoothness. Fifth-generation blowing forming technology improves frame strength, consistency, and ride performance.

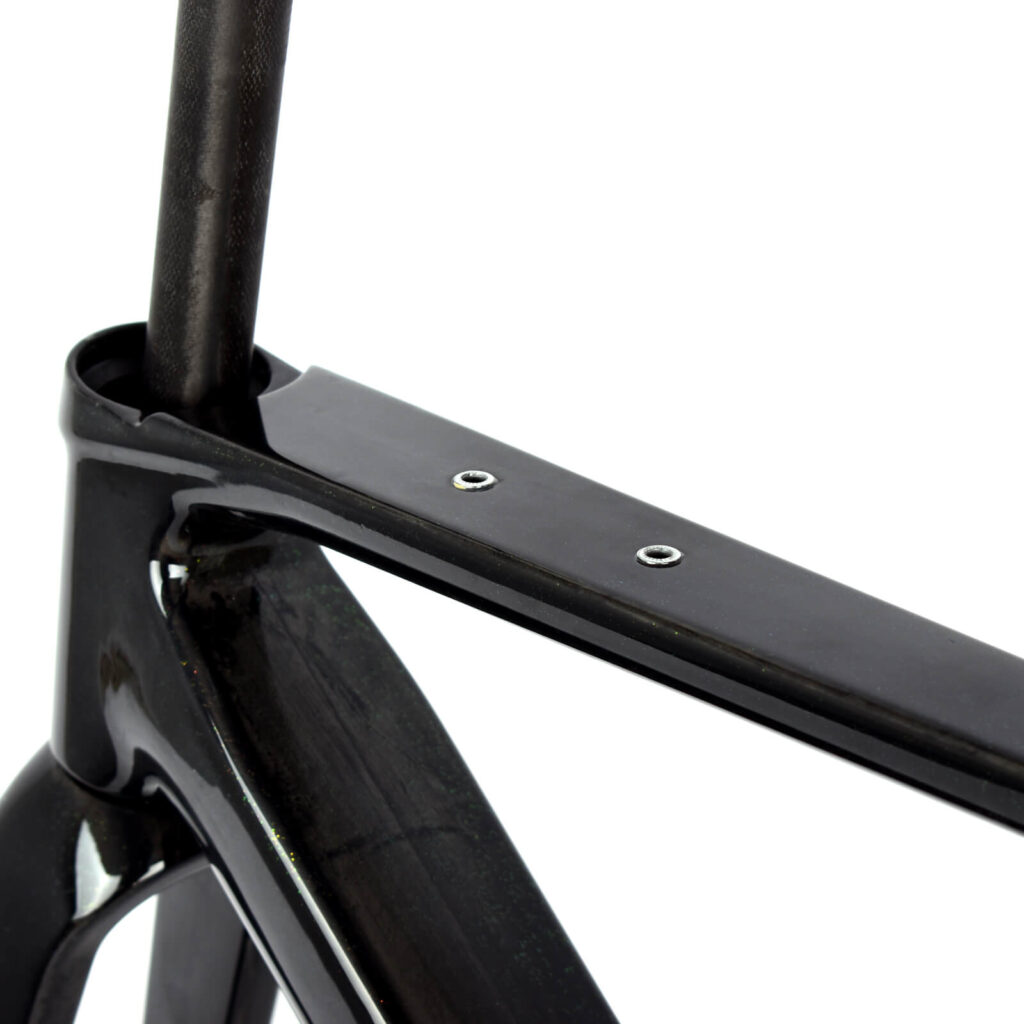

1 1/2” -1  1 /2 Straight Headtube

  • 1 1/2 straight headtube enhances steering precision and front-end stiffness, giving the carbon road bike frame improved stability, responsive handling, and better control at high speeds.

Dropper-shape Aero Seatpost

  • The 400mm length dropper shape aero seatpost offers lightweight design and adjustable height for optimal comfort and performance.
  • Its aerodynamic profile reduces drag, improving overall speed and stability.

Max 700*38C tires & UDH  hanger

  • 700*38C tire clearance ensures compatibility with wide tires, providing excellent grip and stability on diverse terrains, enhancing overall ride comfort and performance for all-road cycling.

  • UDH hanger offers easy compatibility with modern drivetrains, ensuring secure gear shifting and improved durability, making it ideal for high-performance all-road bike frames.

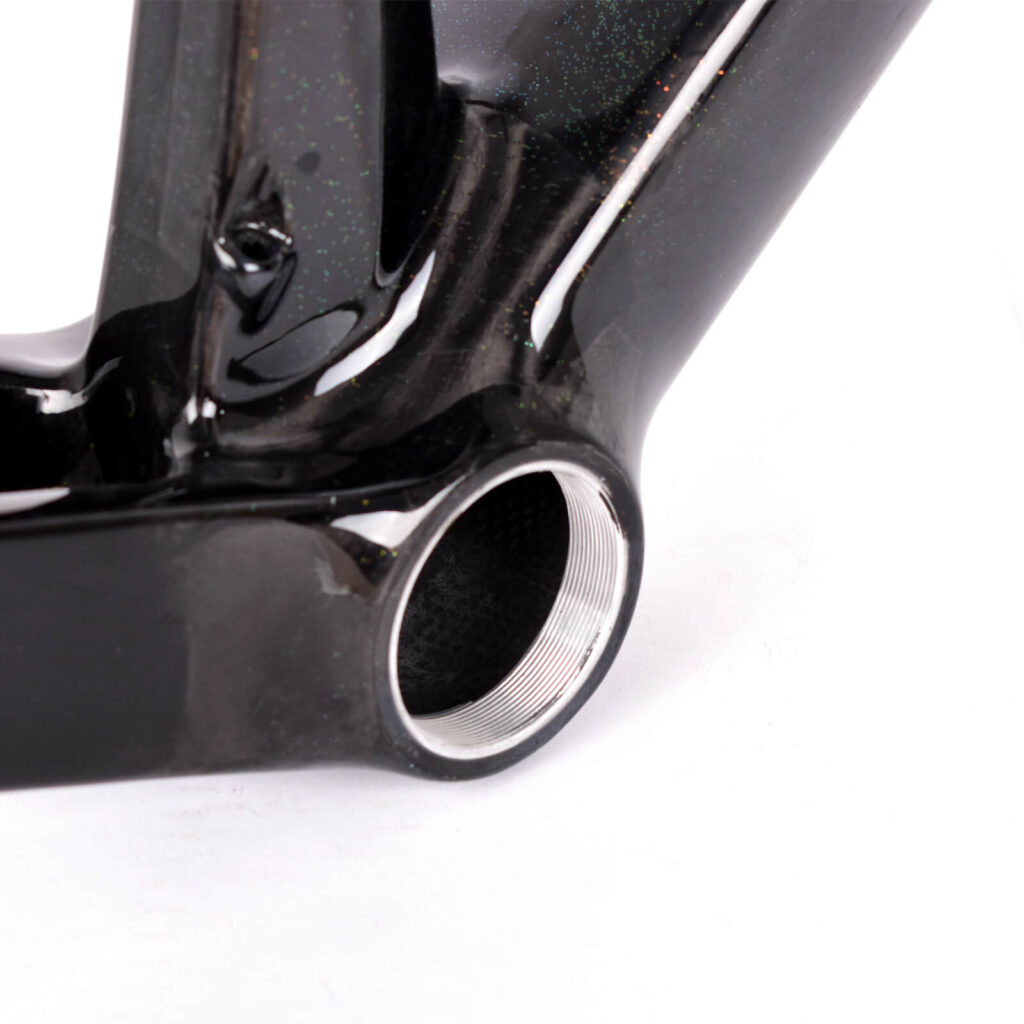

T47 (85.5mm) Bottom Bracket

  • T47 bottom bracket standard ensures superior durability and enhanced stiffness, providing seamless compatibility with a wide range of bike frames. This design improves pedaling efficiency and overall bike performance.
haidelibikes factory

Haidelibikes Factory

  • Lead Time: Efficient production and on-time deliver.
  • Custom Painting: Yes, fully customizable designs.
  • OEM & ODM: Welcome-your brand, our support.
  • MOQ: Starting from just 5 sets.
  • Sample Policy: Samples available on request.

Advanced Production Facilities

  • ISO-certified testing lab ensuring compliance with global standards.
  • Exclusive Infrared Detection System – Our proprietary technology for internal defect inspection, ensuring every frame meets the highest safety and durability standards.

Manufacturing Techniques

  • Blow molding: for lightweight frames and high-strength frame structures.
  • EPS/latex molding: ensures precision interiors shaping.

Full-Service Capabilities–One-Stop Solution

  • Design → Prototyping → Mass production → Custom Painting
  • Masterful Painting Craftsmanship–Our expert painters, with 10+ years of experience, deliver flawless custom finishes, ensuring both durability and aesthetic excellence.
