Many MTB riders first truly “feel” the difference in suspension systems when their rear wheel slams into a rock during a high-speed descent—some lose control and fly, while others hold steady. What’s the difference? The answer may lie in a part you might not have paid much attention to: the Pivot system.
In full-suspension mountain bike frame design, the layout of the pivot points and the suspension linkage directly influence pedaling efficiency, downhill grip, and overall vehicle dynamics. This isn’t metaphysics; it’s the result of geometry and kinematics.
According to a Pinkbike survey, over 67% of intermediate and advanced riders say Pivot design is a key consideration when choosing a full-suspension MTB (source: Pinkbike.com). This trend is also reflected in recent product offerings: more and more high-end brands are adopting High Pivot technology, pairing it with full-suspension MTB frames with 29- or 27.5-inch wheels. Dual-suspension mountain bike frames are even available in the mid-range price range.
Anyone who truly understands cars knows that a full suspension frame is more than just having suspension; the pivot system design is the determining factor in the overall character of the vehicle.
What is a Pivot suspension system? How does it affect your mountain bike?
In modern mountain bike design, especially in full-suspension MTB frames, the Pivot system is no longer just a simple mechanical joint; it becomes the geometric hub of the entire bike’s handling, pedaling efficiency, and suspension performance. The Pivot refers to the pivot point in the rear suspension system, controlling how the suspension responds to impact, the path of the rear wheel, and the overall dynamics of the bike.
A good pivot suspension frame is more than just a “softer” or “more comfortable” ride; it precisely optimizes pedaling energy transfer and determines your stability and confidence on all terrains. Even many top international brands build their core products around this concept—think Santa Cruz’s VPP system, Trek’s ABP system, and Pivot Cycles’ DW-link platform. The common thread behind these designs is the balance of efficiency and responsiveness achieved through the scientific Pivot geometry layout.
In the European and American Enduro and Trail communities, riders often say, “Suspension is feel, but pivots are behavior.” In other words, the suspension system provides comfort, while the pivot design defines the bike’s overall “character”—whether it’s more stable, more agile, or more aggressive and grippy on descents. This subtle yet crucial distinction is only understood by riders who have truly climbed mountains, ridden over rocks, and scrambled over bumps.
A Brief Introduction to Pivot Construction in Suspension Systems

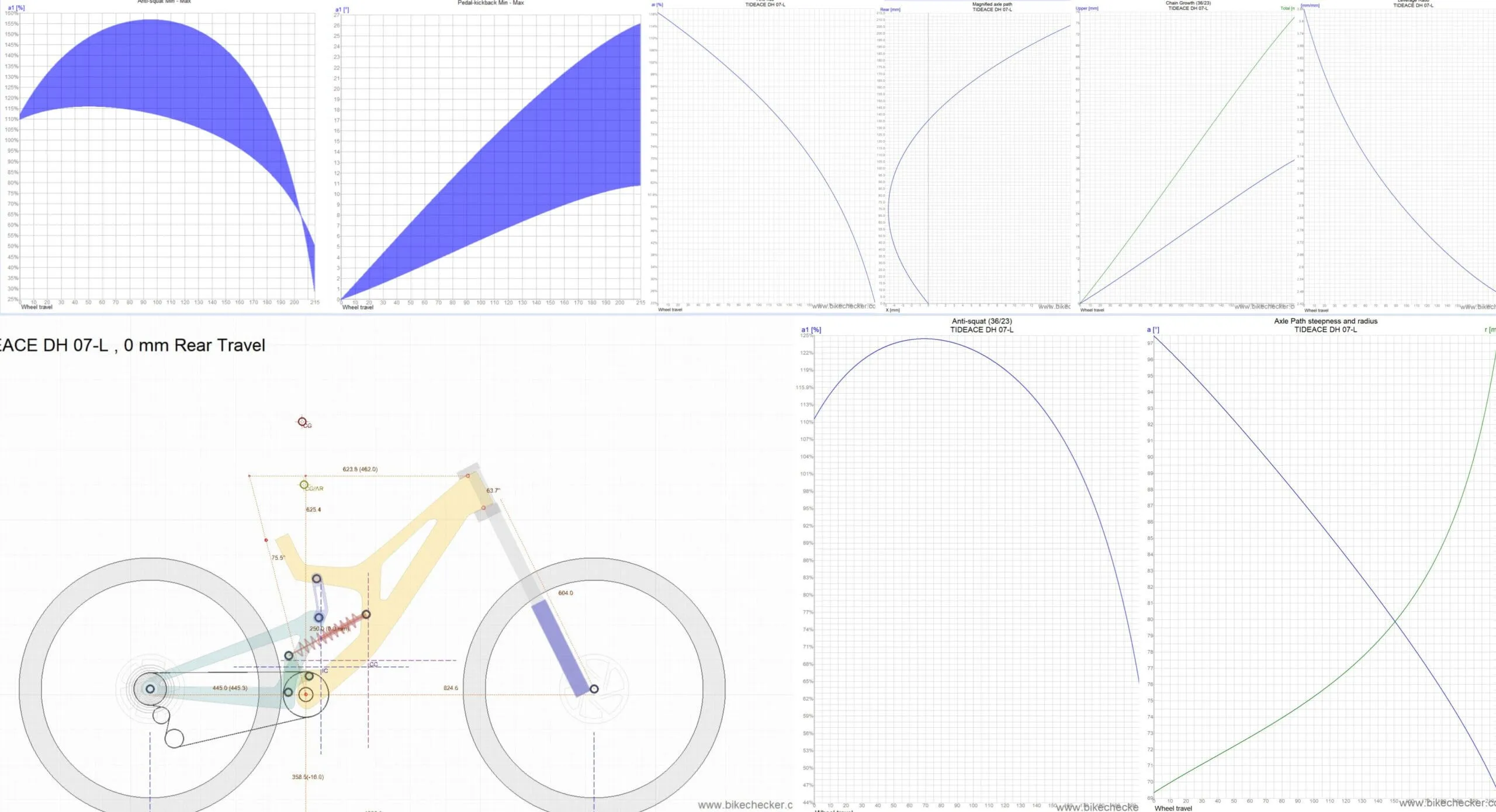

In a frame suspension configuration, the number, layout, and linkage length of pivots directly influence the vehicle’s “leverage ratio curve” and dynamic response. Mainstream designs on the market can be roughly divided into two categories: single-pivot and multi-link suspension.
Single-pivot systems are simple and commonly found in entry-level 27.5mm full suspension bike frames. They offer low maintenance but lack precise control over pedaling feedback. Multi-link systems (such as Horst Link, DW-Link, and VPP) achieve enhanced anti-squat performance through complex geometry, while also controlling pedal kickback and chain growth, making them suitable for high-intensity off-road or descent riding.
How does pivot design affect pedaling efficiency and downhill control?
European and American cyclists often describe poor suspension pedaling efficiency as “pedal bob” or “feels like riding through molasses,” typically reflecting pedaling energy loss. An optimized pivot system can effectively improve anti-squat performance, maintain rear stiffness during pedaling, reduce the “spongy feeling,” and ultimately improve efficiency.

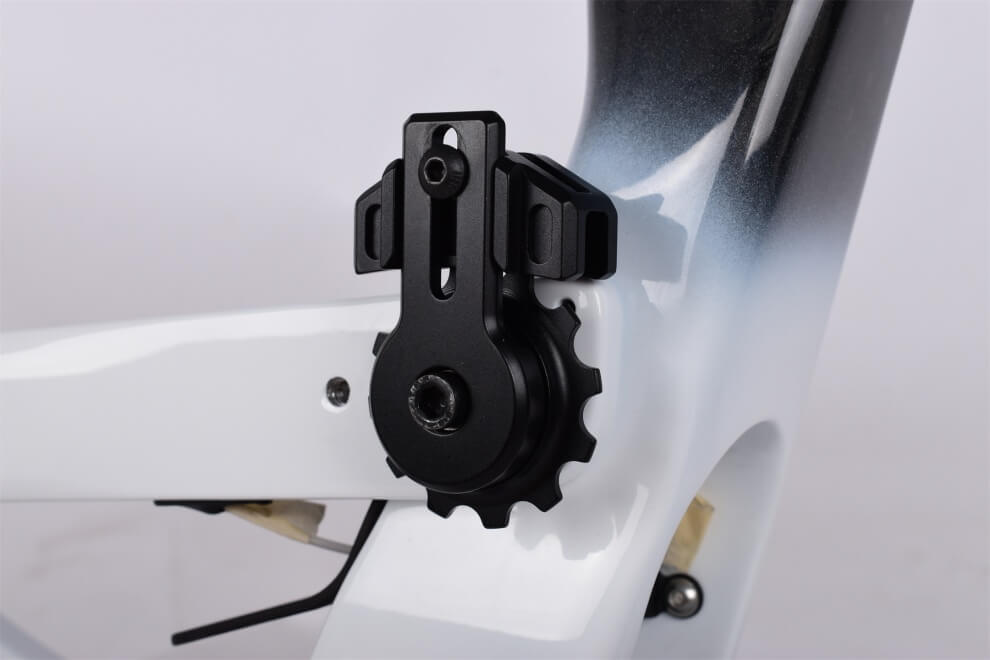

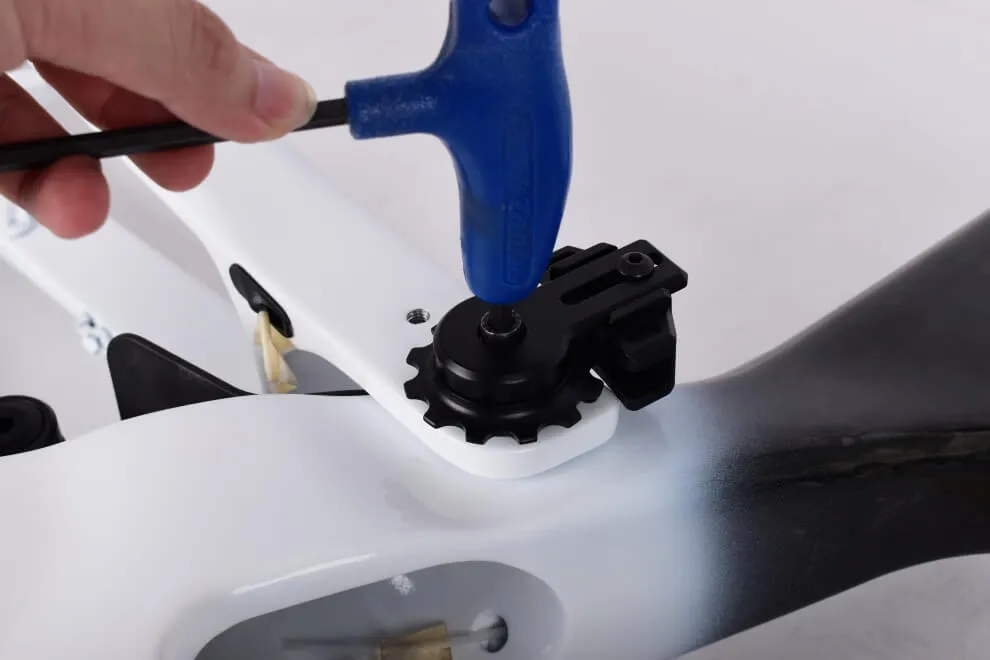

During descents, the pivot layout also influences the vehicle’s center of gravity and the path of the rear suspension, ultimately impacting grip and maneuverability. For example, the High Pivot structure can provide a more rearward rear axle path, reducing the sense of stall (momentum loss) caused by impact, which is particularly suitable for heavy DH and high-intensity Enduro scenes.
Pivot System Dependence of Different Full Suspension Mountain Bike Frames
For full suspension mountain bikes, the Pivot system isn’t designed to be one-size-fits-all. Different riding styles and scenarios necessitate distinct suspension geometry and structural requirements. From lightweight XC racing to technical trail riding to bouncy enduro, each frame’s reliance on the Pivot system and its layout logic differ significantly.
Comparison of Pivot System Differences in Enduro, XC, and Trail Frames
| Riding Style | Typical Travel Range | Pivot System Characteristics | Geometry / Structural Focus | Common Layouts |
|---|---|---|---|---|
| XC (Cross-Country) | 100–120mm | Prioritizes pedaling efficiency and minimal pedal bob | High anti-squat values, lightweight design | Single Pivot, lightweight multi-link systems |
| Trail (All-Mountain) | 120–140mm | Balanced performance for both climbing and descending | Neutral suspension curve, mid-leverage ratio | Horst Link, Maestro, multi-link configurations |
| Enduro | 150–170mm | Heavily reliant on pivot layout for impact absorption and control | High Pivot or rearward axle path designs for stability and big-hit capability | High Pivot, multi-link with set-back rear axle path |
How a Full Suspension Frame Optimizes Your Bike’s Performance
A good full suspension bicycle frame is far more than just having two suspension points. The key to its performance lies in the precise coordination of the rear linkage system with the frame’s rigidity and suspension path.
In European and American cycling circles, it’s often said, “Suspension sells, but linkage rides.” In other words, even with the same dual suspension mountain bike frame, the key to its stability, responsiveness, and smooth ride lies in the sophisticated pivot + linkage geometry behind it.
For example, some brands utilize a “progressive suspension curve” to improve the balance between small bump absorption and large bump support. Combined with a high-strength aluminum alloy or carbon fiber midsection, this helps the bike resist deformation under high-speed, continuous impacts, resulting in a more planted and dialed ride. This fundamentally distinguishes high-end full suspension bicycle frames from budget-friendly ones.
Wheel Size Compatibility Analysis with the Pivot System (27.5 vs. 29)
In full-suspension mountain bike design, wheel size (27.5 vs. 29) not only impacts handling and maneuverability but also profoundly influences the layout of the Pivot system. Especially for the two mainstream platforms—the 29-inch full-suspension MTB frame and the 27.5 full-suspension frame—strengthening the balance between wheel diameter, suspension geometry, and linkage structure has become a critical challenge for brand engineers.
In the European and American markets, with the mainstream adoption of 29er frames and the rise of hybrid configurations (such as the Mullet Setup: 29 front, 27.5 rear), Pivot design is gradually evolving towards more complex and high-precision structures. We have discussed the advantages and application scenarios of the Mullet Setup in detail in another article.
Pivot System Design Considerations for 29er Suspension Frames
The 29-inch wheel diameter offers greater roll-over capability and stability, but it also places higher demands on Pivot design. Larger wheels significantly increase the space within the suspension envelope, making it more challenging to balance travel range and pivot location, especially when achieving long-travel designs (over 150mm).
To address these challenges, many 29er platforms (such as full-suspension MTB frames) employ a low center of gravity (larger BB drop), longer chainstays, and a more rearward-positioned pivot structure to maintain pedaling efficiency and anti-squat performance.
However, this layout also presents a balance issue—if not properly constructed, it can lead to unwieldy handling. Therefore, high-end 29er suspension platforms often incorporate lighter frame materials and more precise linkage ratios to ensure a stable yet playful feel even on rough terrain.
Pivot Layout Advantages of a 27.5-inch Suspension Frame
In contrast, 27.5-inch suspension platforms offer greater flexibility in pivot placement due to their smaller wheel diameters. Consequently, they are often used to create “flicker” and lighter bikes. Their shorter wheelbase and compact geometry make quick turns easier on winding trails and steep corners, making them popular with skilled and freeriding riders.
For smaller European and American riders, 27.5 full suspension frames also offer a more rider-fit geometry, making them more comfortable for pedaling, pushing, and aerial maneuvers. Furthermore, due to their lower center of gravity, these platforms are structurally more responsive to mid-travel sensitivity, resulting in particularly balanced performance on moderately intense trails.
As you can see, the Pivot system must be not only “compatible” but also “adaptable” to different wheel diameter platforms. Only by combining suspension geometry, structural rigidity and wheel diameter characteristics can a full suspension mountain bike with true “character” be created.
Why is the Pivot system worth considering, even on entry-level bikes?
Many beginners, when choosing entry-level full-suspension mountain bikes (cheap full-suspension MTB frames), often focus on factors like “suspension,” “lockouts,” and “decent components,” overlooking the Pivot system, a core component crucial to the bike’s handling and durability. However, even in the budget-friendly price range, the Pivot’s structure and layout can make the difference between a bike capable of trail riding and one that simply looks like a mountain bike.
In the European and American markets, an increasing number of entry-level MTB frames are featuring optimized full-suspension platforms. These focus on providing a structure designed to handle real-world trails, including more optimized rear suspension geometry, more durable pivot hardware, and a linkage-driven suspension system that doesn’t compromise ride feel.
As some veterans say, “Don’t just count the pivots, understand them.” The Pivot system is the key to determining whether a frame is truly reliable.
How can I choose a frame with excellent Pivot performance on a limited budget?

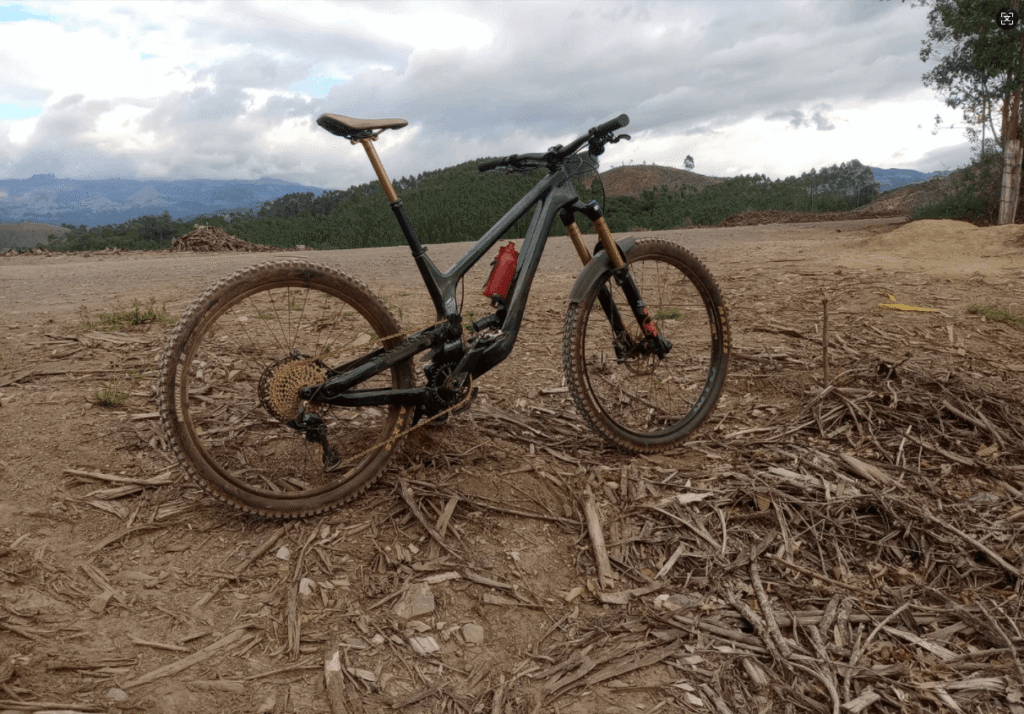

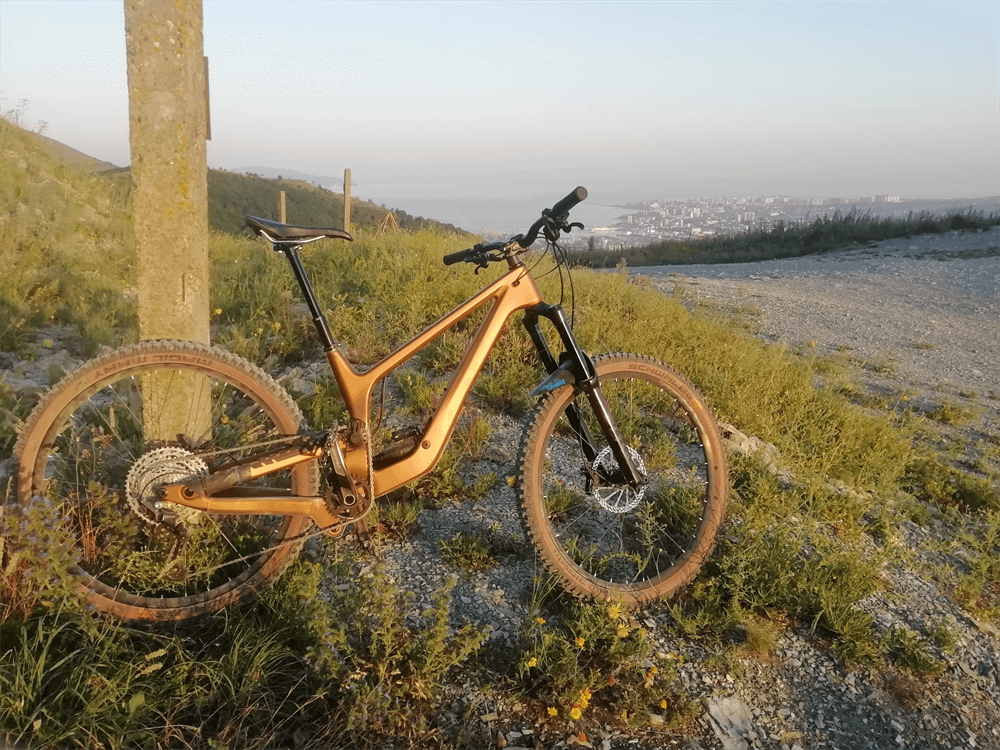

For riders in the $1,000-2,000 range, choosing an entry-level frame with sound construction, precise geometry, and a stable Pivot system is often more important than brand name or derailleur level. Our recently launched FS838 full-suspension frame features our in-house developed HVP (High Virtual Pivot) system, optimized for mid-range riders. It balances pedaling efficiency and downhill grip, making it suitable for budget-conscious trail/enduro riders.
First, consider whether the bike utilizes a true linkage-driven suspension design. This type of design provides better anti-squat pedaling support, reduces pedal bob, and maintains ample travel compression.
Second, check for a compact rear suspension layout and a well-placed Pivot system. An overly complex structure or exposed pivot points without adequate sealing can easily lead to squeaking or loosening after extended riding.

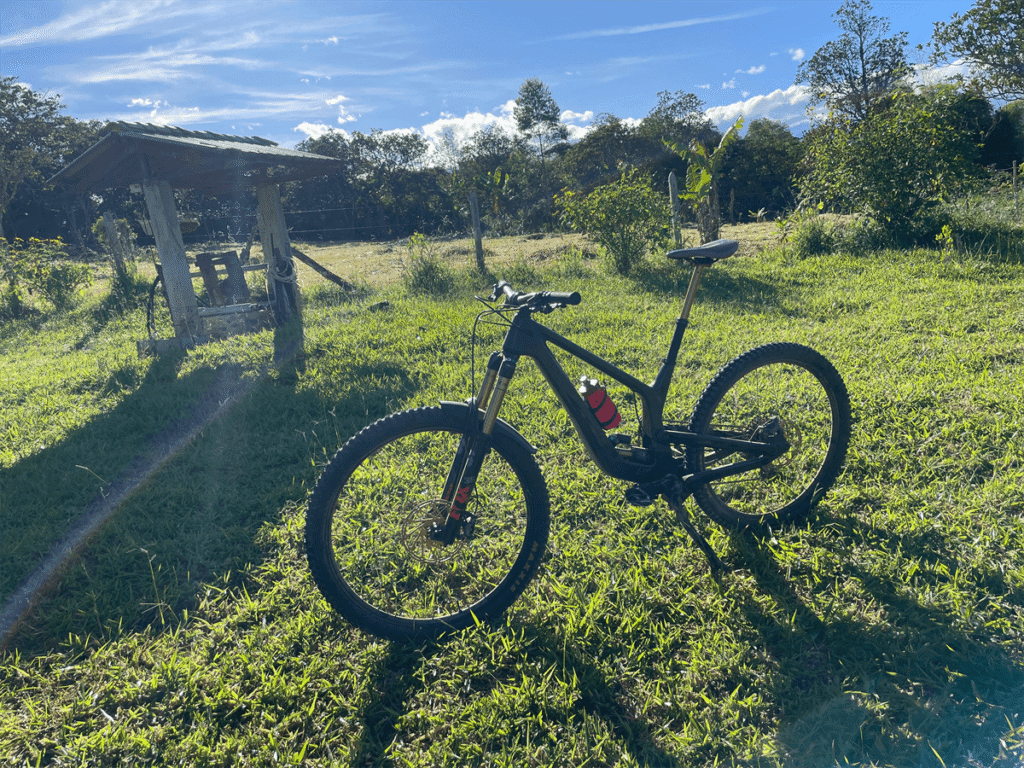

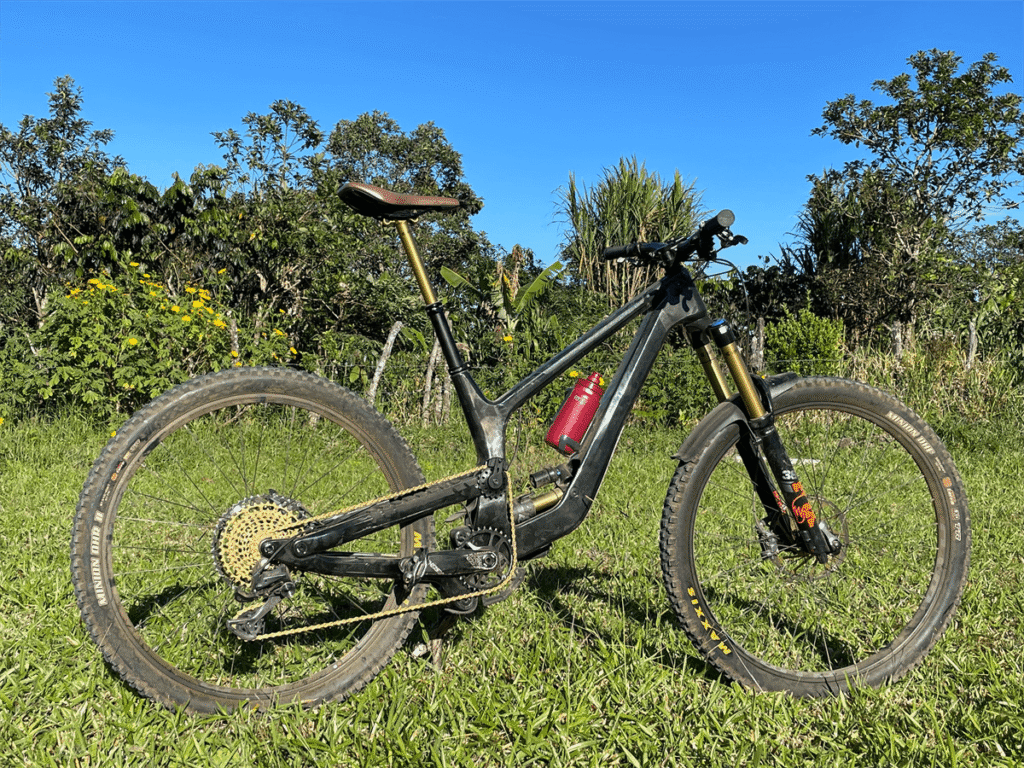

Finally, it is recommended to prioritize models with user feedback, mature geometry, and upgradeable structure, rather than just looking at the configuration list. For example, our FS838 combines modern trail geometry with a durable aluminum alloy linkage system. It is not just a “rideable” suspension bike, but a real “play” trail tool.
Is the Pivot Design Suspension Frame worth the investment?
Whether you’re an efficiency-conscious XC rider, a versatile trail rider, or a downhill warrior in the Enduro arena, the design of the Pivot system directly impacts your overall performance and ride feel. It influences not only pedaling energy loss (anti-squat), but also the feel of support during high-speed compression (progressivity). It even determines whether you can smoothly negotiate technical terrain or land with a pop after a jump.
A review of the previous sections clearly demonstrates the following:
Across different vehicle positioning (XC, Trail, Enduro), Pivot geometry influences the suspension curve and rear axle path, which directly impacts grip, bounce, and handling.
Different wheel platforms (27.5 vs. 29) present different spatial and angular challenges for the Pivot layout. Balancing travel and pedaling pivot points is a defining characteristic of premium frame design.
Even entry-level full-suspension MTB frames can deliver a riding experience beyond their price point through well-designed Pivot geometry.
If you’re a serious mountain biking rider seeking a smoother, more stable response, investing in a full-suspension frame with the proven Pivot design is absolutely worthwhile. As many European and American riders say, “A good suspension feels plush, but a good pivot rides smart.”
If you’re unsure which frame is right for your riding style and budget, feel free to contact our team and we can recommend the most suitable model based on your riding style.
