Imagine riding on the road, the wind cutting through you like a blade, every little pothole on the ground can be felt through the wheels, and you can maintain almost perfect control in the process. Behind this experience, it is likely that the Monocoque One-Piece Bicycle Frame is playing its role.
In the past decade, carbon fiber technology and Monocoque one-piece molding have completely changed the landscape of bicycle manufacturing. In top events such as Tour de France, more and more professional riders choose carbon monocoque bike frames. This is not only a trend, but also a revolution in performance.
Compared with traditional welded frames, Monocoque structures remove seams, are lighter, stronger, and more rigid, can effectively reduce riding vibration, and greatly improve control and comfort. Whether it is a road bike or a downhill bike, this type of frame can bring a significant performance leap.
According to Bicycling.com, more than 70% of professional riders already use monocoque carbon frames as their main equipment. Their light weight and high rigidity are the key to improving acceleration efficiency and precise control.
Because of this, more and more cycling enthusiasts are turning to this type of high-performance frame. If you are considering upgrading, you might want to take a look at our carbon race bike frame series to experience technology that is truly born for speed.
Understanding the Basics of a Monocoque Bicycle Frame
In the world of bicycles, the Monocoque frame has become a revolutionary design concept, especially in high-performance bicycles. Compared with traditional welded frames, the Monocoque frame uses one-piece molding technology to make the entire frame a seamless whole. This design not only makes the frame stronger, but also significantly reduces weight and complexity, bringing riders a more flexible and efficient riding experience.
What Is a Monocoque Structure and How Does It Differ from Traditional Frames?
The word Monocoque comes from French, meaning “single shell”. In bicycle design, Monocoque frames are usually made of carbon fiber or composite materials through monocoque molding technology. This means that all parts of the entire frame are cast as a whole from the same piece of material, avoiding the seams and weaknesses that may occur in traditional welded frames.
Traditional bicycle frames usually use welding technology to connect multiple tubes through welding to form the structure of the frame. Although this design is mature, it is easy to become a weak point in the structure due to the weak material strength at the seams. The Monocoque frame achieves better stiffness and weight control by reducing seams and optimizing material use, providing riders with higher performance advantages.
For riders who pursue racing and durability , the Monocoque frame is almost an irreplaceable choice, especially in the case of high-strength and ultra-light , its advantages are more prominent.
One-Piece Bike Frame vs. Welded Frame: Pros and Cons
The Monocoque one-piece frame is significantly different from the traditional welded frame in structure and performance. When choosing, you need to weigh it according to the purpose and budget.
Advantages of the Monocoque frame:
More complete structure: no welds, no seams, and stronger impact resistance.
Lighter and stronger (lightweight & stiff): Optimize the carbon fiber layer to reduce weight while maintaining strength, especially suitable for road bike and MTB bike frames.
More precise control: higher rigidity, direct riding feedback, suitable for competition and high-performance needs.
Advantages of welded frames:
Cost-friendly (budget-friendly): simple to manufacture, suitable for novice or budget-limited riders.
Geometric flexibility: bike frame angles can be customized to adapt to different riding styles.
However, the seam strength of the welded structure is weak, which may become a structural weakness in long-term use or intense riding. In contrast, monocoque molding is more suitable for users who pursue performance, and is the first choice for most racing bike frames and high-end carbon monocoque bike frames.
Summary: If you focus on speed, control and frame performance, monocoque carbon fiber frames are worth investing in; and if you pursue practicality or entry-level experience, welded frames are still a cost-effective choice.

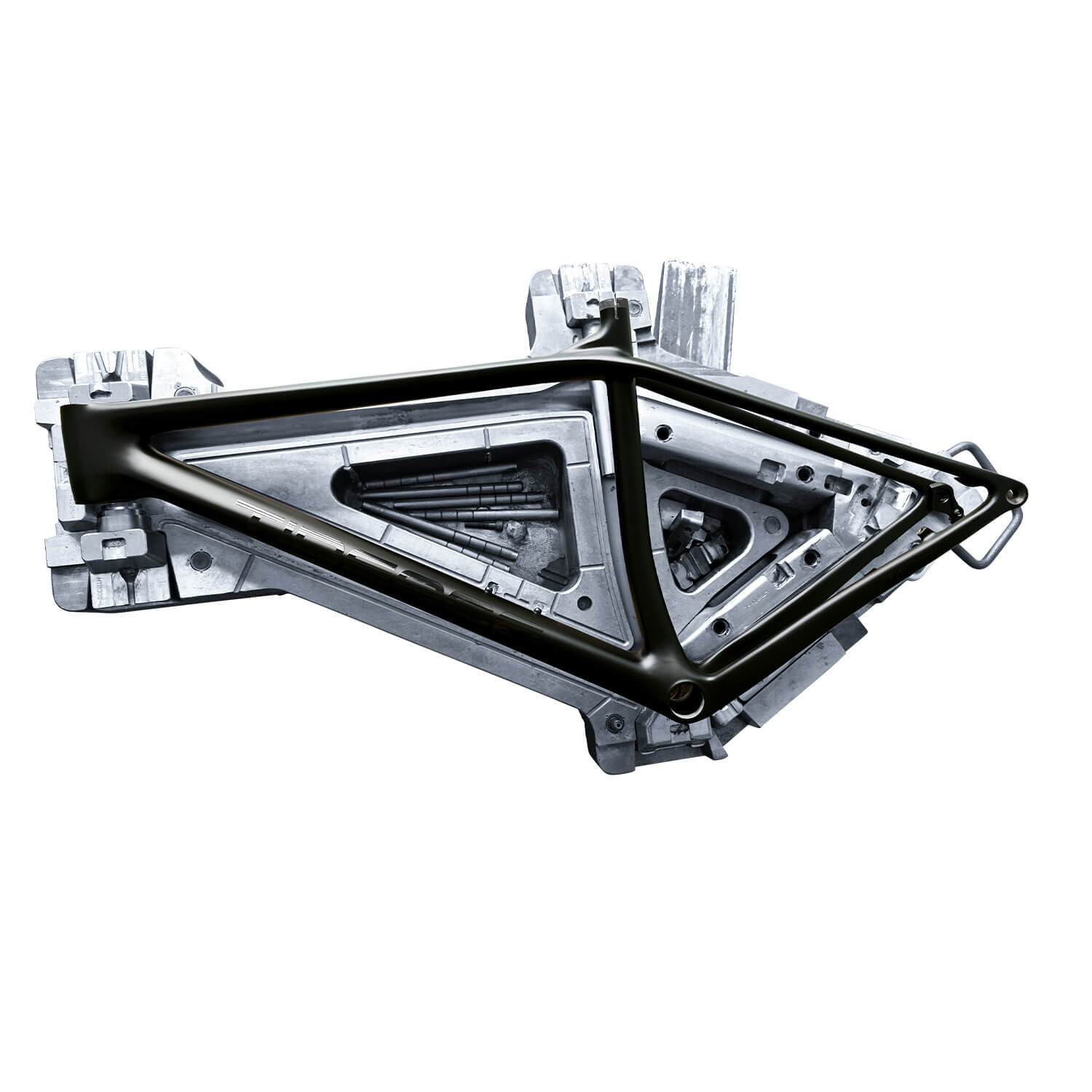

The Monocoque One-Piece Bike Frame Molding Process Explained
In the field of carbon fiber bicycles, monocoque molding is a revolutionary manufacturing technology that fundamentally changes the design and strength of bicycle structures by molding the entire frame into a seamless whole. This process transforms the welded seams of traditional frames into a perfect whole, which maximizes the weight reduction while improving the stiffness of the frame. Therefore, the carbon monocoque bike frame is particularly important in competition-level and high-performance bikes.
Why Carbon Fiber Is Ideal for Bicycle Frames
Carbon fiber has become the preferred material for manufacturing monocoque frames due to its excellent lightness and strength ratio. Compared with traditional metals such as aluminum alloys, carbon fiber is lighter and stronger, making it ideal for road and mountain bike users who pursue performance and efficiency.
One of the biggest advantages is its customizability: the fiber layup can be adjusted according to the needs of different parts to achieve a balance between rigidity and comfort. At the same time, it also has excellent vibration damping, which is particularly important in MTB bike frames and downhill bike frames, significantly improving the handling and comfort.
In general, carbon fiber perfectly combines lightness, high strength and high performance, making it the ideal material choice for modern carbon monocoque bike frames.
How a Carbon Monocoque Bike Frame Is Made
The process of making a carbon fiber monocoque frame is not as simple as it seems. It requires precise design and multiple complex processes. Generally speaking, the production process can be roughly divided into the following steps:
- Design and mold creation: First, the designer formulates a detailed geometric structure design for the frame according to the requirements, usually through computer-aided design (CAD) software for precise modeling. Then, in order to ensure that each part of the frame can be accurately formed, a high-precision mold needs to be made.

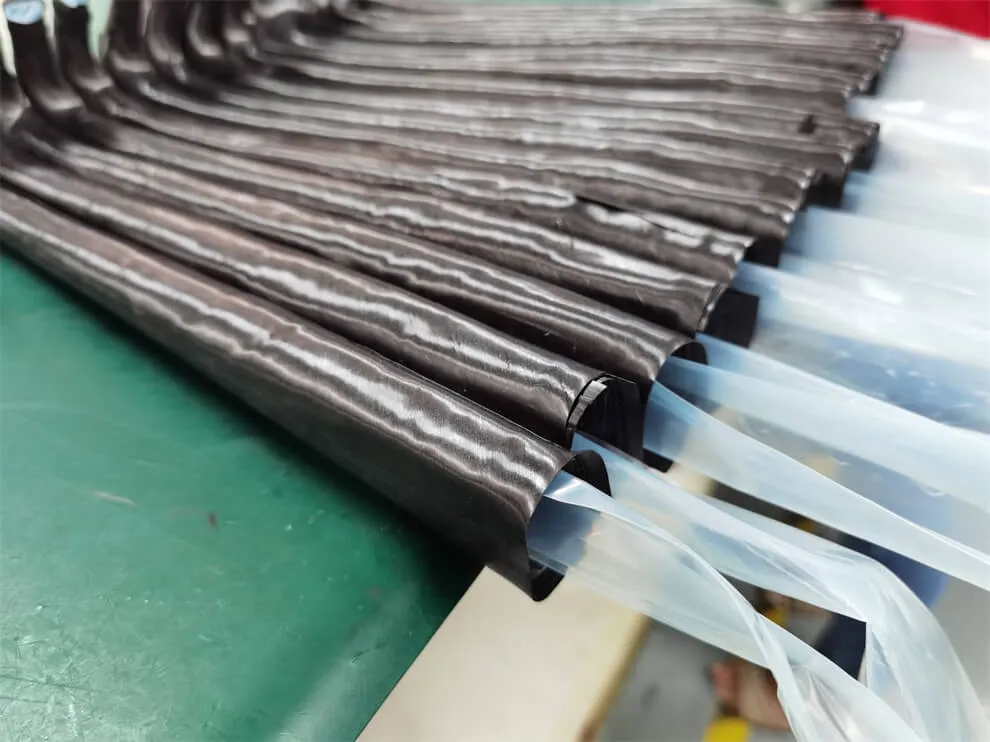

- Laying up carbon fiber: The cut carbon fiber cloth is laid on the mold layer by layer according to the design requirements. The fiber direction and density of each layer of carbon fiber will affect the final stiffness and strength. This is a process that requires high technical skills and experience.
- Molding and curing: After the carbon fiber layer is laid, it is tightly wrapped in the mold through vacuum bagging technology and then placed in a high-temperature furnace for curing. Through the high temperature and high pressure environment, the carbon fiber resin will be cured in this process to form a solid frame structure.
- Finishing and inspection: The molded frame will be trimmed to remove excess resin and seams, and quality control will be carried out to ensure that the performance indicators of the frame meet the standards. Finally, the frame will be treated with appearance and clear coating, which not only enhances the durability of the frame, but also makes the appearance of the frame smoother and more beautiful.
This process gives the Monocoque frame extremely high precision and consistency, ensuring that each vehicle achieves the perfect balance between strength and lightness.
Introduction to Bicycle Frame Making Machines
The process of making Monocoque bike frames is inseparable from high-tech bicycle frame making machines. These equipment usually include:
CNC machining: used to cut and finely carve carbon fiber layers to ensure the accuracy of the size and geometric angles of each component.
Vacuum molding equipment: used to tightly mold carbon fiber layers through vacuum adsorption technology, so that each layer of carbon fiber cloth fits tightly to ensure the structural strength of the frame.
Automated layup systems: greatly improve the efficiency of laying carbon fiber cloth, reduce manual operation errors, and improve production consistency and speed.
These advanced manufacturing equipment, combined with high-precision production processes, provide technical support for the production of high-end carbon fiber bike frames, enabling Monocoque frames to achieve ultimate performance and quality.
Types of Bike Frames
Bike frame designs vary from model to model, and each design optimizes riding performance, comfort, and durability. Below we will introduce several common frame types: road bikes, mountain bikes (MTB), and downhill bikes, and explore their main differences.
Road Bikes, Mountain Bikes, and Downhill Bikes: How Their Frames Differ
| Bike Type | Material | Frame Geometry & Design | Purpose / Features |
|---|---|---|---|
| Road Bike Frame | Carbon fiber or aluminum alloy | Long and aggressive geometry for speed and stiffness | Lightweight, aerodynamic, ideal for long-distance and high-speed riding |
| Mountain Bike Frame | Aluminum alloy or carbon fiber | More upright geometry with suspension design for off-road comfort | Built for durability, impact resistance, and handling rough terrain |
| Downhill Bike Frame | Carbon fiber or aluminum alloy | Low, slack, and wide geometry for maximum stability and control | Designed for high-speed descents, strong impact absorption, and extreme strength |

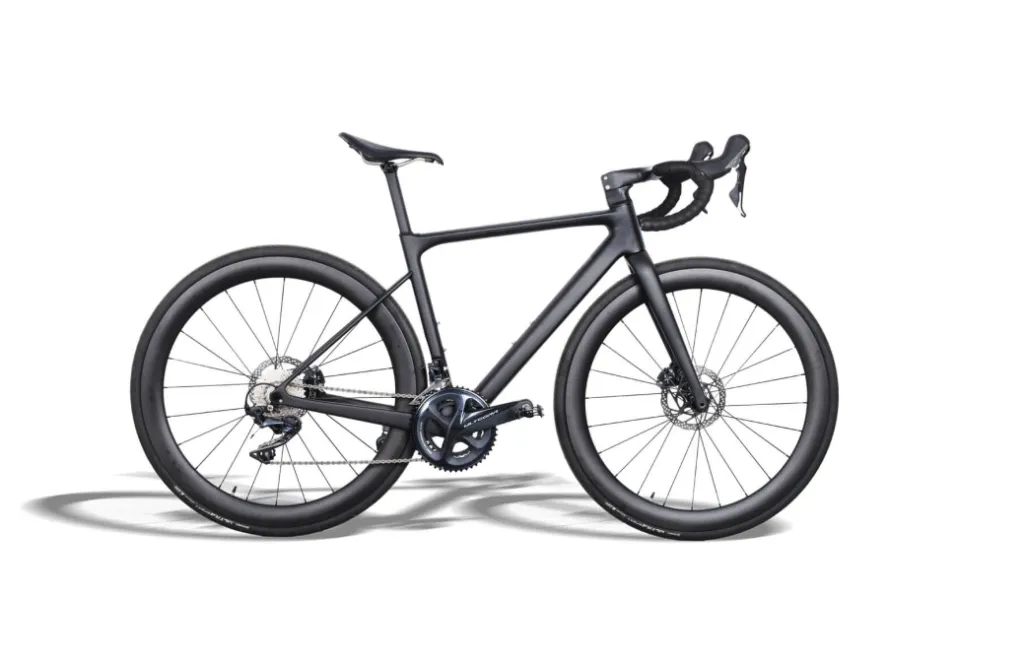

What Is a Carbon Race Bike Frame?
Carbon Race Bike Frame is a frame designed for professional competitions, characterized by ultra-lightness and ultra-rigidity. This frame provides excellent speed and precise control and is commonly used in road races and triathlons. The design of carbon fiber allows the rigidity and comfort of the frame to be customized, helping riders achieve optimal performance during competitions.

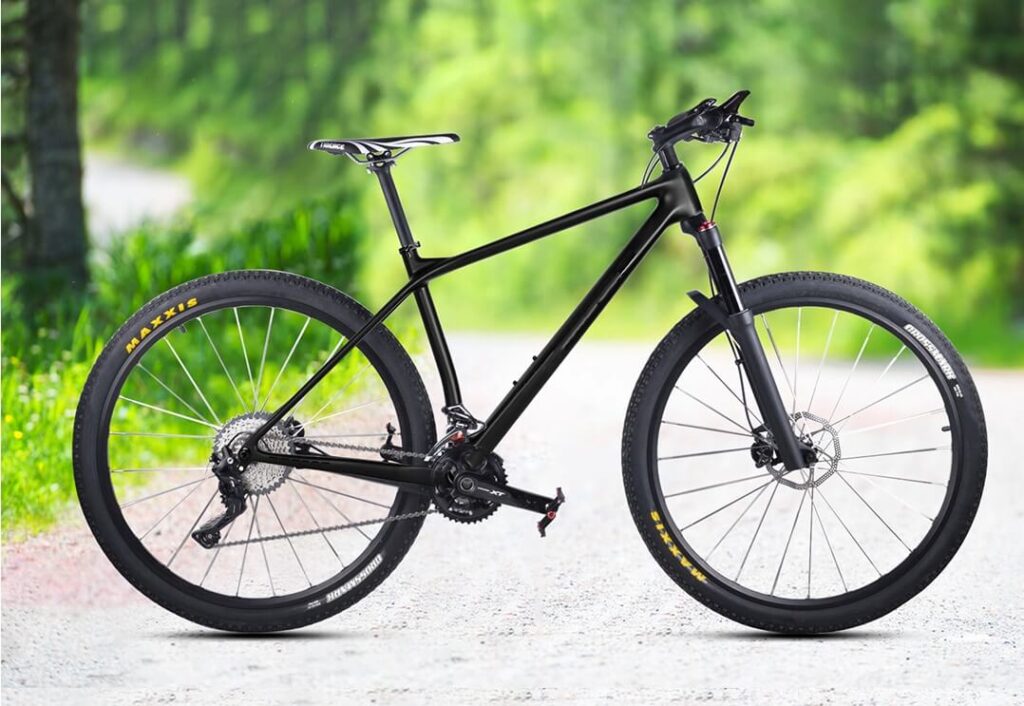

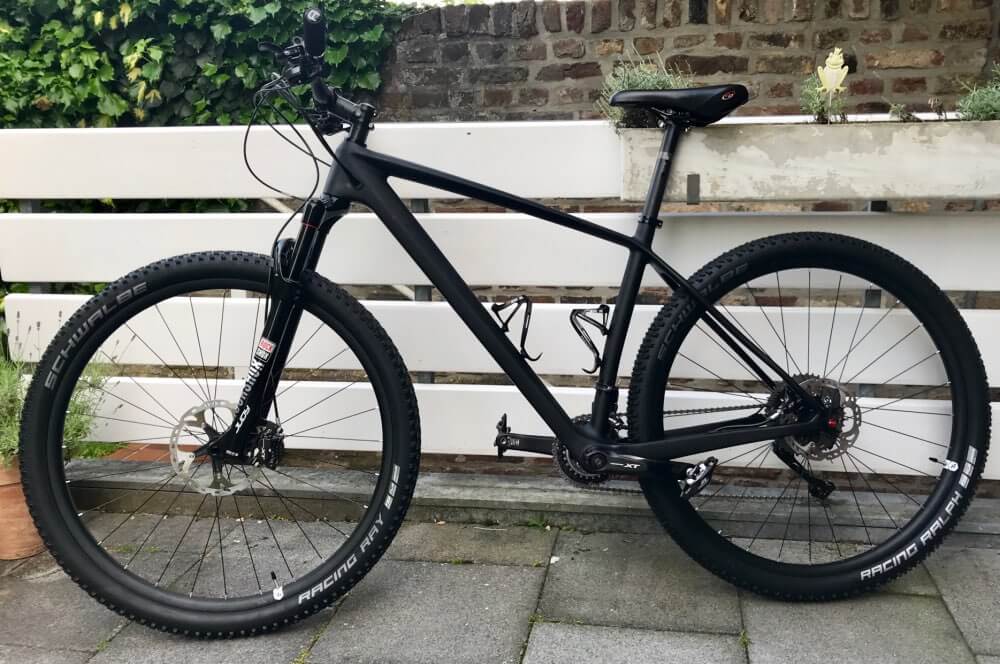

How to Choose MTB Bike Frames
Choosing the right mountain bike frame is crucial. Here are a few suggestions:
Frame Material: Common materials include carbon fiber, aluminum alloy, and steel. Carbon fiber frames are suitable for riders seeking high performance, while aluminum alloy frames are a common choice due to their high cost-effectiveness.
Frame Geometry: Different geometric designs affect comfort and stability. When choosing, you should base your riding needs on off-road or downhill riding.
Suspension System: If you often ride on rough roads, a full suspension frame can provide better comfort and control.
Choosing the right frame can significantly improve the riding experience, especially for off-road and downhill riding.
Why Cyclists Are Switching to Monocoque Carbon Fiber Frames
In recent years, Monocoque carbon fiber frames have gradually become the first choice for professional cycling enthusiasts and racers. With the continuous advancement of technology, more and more cyclists are starting to switch from traditional welded frames to integrated Monocoque designs. This design not only provides significant advantages in weight, strength and rigidity, but also greatly improves the riding experience and even makes the appearance more refined and durable. Why is this integrated frame so popular? Next, we will analyze its unique advantages in depth.
Lighter Weight, Higher Strength, Better Stiffness
One of the biggest advantages of Monocoque carbon fiber frames is light weight. Compared with traditional welded frames, the use of carbon fiber significantly reduces the overall weight of the frame, which is crucial for cyclists pursuing speed and climbing performance. Due to the laminate structure of carbon fiber, designers can precisely control the rigidity and strength of the frame, ensuring that it provides stronger impact resistance and torque transmission while maintaining lightness.
More importantly, the Monocoque design avoids welding points in traditional frames through one-piece molding technology, reducing stress concentration and potential risk of fracture. Therefore, the Monocoque carbon fiber frame has higher structural integrity than traditional frames, and can perform more stably and reliably under high-speed riding or intense impact.
A Complete Upgrade to Your Cycling Experience
Cyclists who use the Monocoque carbon fiber frame generally report that the riding experience has been significantly improved. Due to the high vibration damping of carbon fiber materials, the Monocoque frame can effectively reduce the vibration transmission of the road, especially during long rides or on rugged roads, which can bring higher comfort. Compared with traditional aluminum frames, carbon fiber frames not only provide better stability, but also effectively improve handling, especially when turning at high speed and climbing, the frame is more responsive.
The design of the Monocoque carbon fiber frame emphasizes one-piece molding, avoiding the instability caused by splicing and welding, so that during riding, the frame can provide a more balanced force distribution. Whether riding a road bike or a mountain bike, riders will feel the direct force feedback from the frame, making the ride smoother and more precise.
Clear Coating Protection and Aesthetic Upgrade
In addition to its performance advantages, the Monocoque carbon fiber frame is also eye-catching in appearance. The unique woven texture of carbon fiber is treated with a clear coating to present a high gloss and smooth texture, which is both beautiful and durable.
The clear coating not only enhances the visual effect, but also effectively resists ultraviolet (UV) and chemical corrosion, extending the life of the frame, especially suitable for long-term outdoor riding. Many high-end racing frames use this treatment to ensure both appearance and durability.
For riders who pursue individuality, the Monocoque frame supports custom painting and a variety of design styles, making the car not only powerful, but also a “cycling business card” that shows your own style.
How to choose and measure the right carbon fiber bike frame size?
Choosing the right carbon fiber bike frame size not only affects comfort, but is also directly related to pedaling efficiency and handling performance, especially the Monocoque frame has higher requirements for geometric matching.
Bike Frame Angles comparison table for various heights
Different riding styles and heights require different frame angles . We have specially compiled a practical comparison table for this purpose. Please see our size matching guide for details.
How to Fix a Damaged Carbon Fiber Frame
Although carbon fiber bike frames are highly resistant to fatigue, they may still crack, delaminate, or suffer local structural damage (delamination) in severe impacts or accidents. In this case, do not blindly continue to use them. Stop riding immediately and check.
Professional repairs usually use a carbon lay-up & epoxy resin repair process, which requires special tools and experienced technicians. It is recommended to contact a trusted carbon frame repair shop to ensure that the structure is safe and not compromised.
If you want to make your bike look brand new after the repair, you can also refer to our other detailed guide on carbon bike frame repainting to learn how to choose coating, varnish treatment, and visual upgrades.
Common Bike Frame Parts and What They Do
Understanding the frame structure will help determine the source of the problem and subsequent maintenance. The following are common bike frame parts:
Head Tube: Connects to the front fork and is a key structure of the steering system
Bottom Bracket: The core area of pedaling force. Monocoque frames are mostly pressed in one piece, which is stronger
Top/Down Tube: The main load-bearing area of the frame, affecting the overall rigidity and force transmission efficiency
Chainstay/Seatstay: Supports the rear wheel and determines the stability and comfort during riding

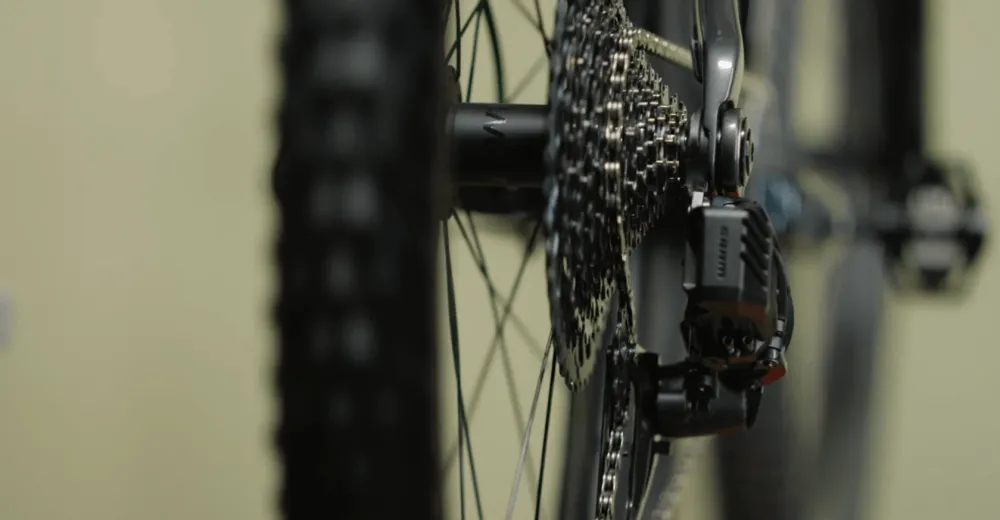

Dropout: The connection point of the rear wheel. Some carbon frames use a replaceable tail hook design for easy maintenance
Being familiar with these basic structures can help riders make more reasonable judgments in daily maintenance and frame selection, and also make them no longer “confused” when communicating with bike shop technicians.
Advantages of carbon fiber bike frame manufacturing from China
As the global demand for high-performance cycling equipment continues to grow, more and more international brands are outsourcing carbon fiber bike frame manufacturing to Chinese OEM/ODM factories. China is not only the core region of the global bicycle supply chain, but also has accumulated mature advantages in monocoque one-piece molding and carbon fiber process control .
Why are more and more brands choosing Chinese OEM?
Many European and American brands choose China as a carbon fiber frame OEM production base, not only for cost control, but also because a mature industrial cluster has been formed here – from carbon cloth prepreg , frame mold development, to vacuum high temperature pressing and automated testing, there are standardized processes and stable delivery systems.
In addition, many domestic factories are very familiar with the rules of the European and American markets, and can provide certified products that meet multiple standards such as EN and ISO, and also support a variety of private label services, which is suitable for start-up brands and boutique brands to quickly put on the shelves for sale.

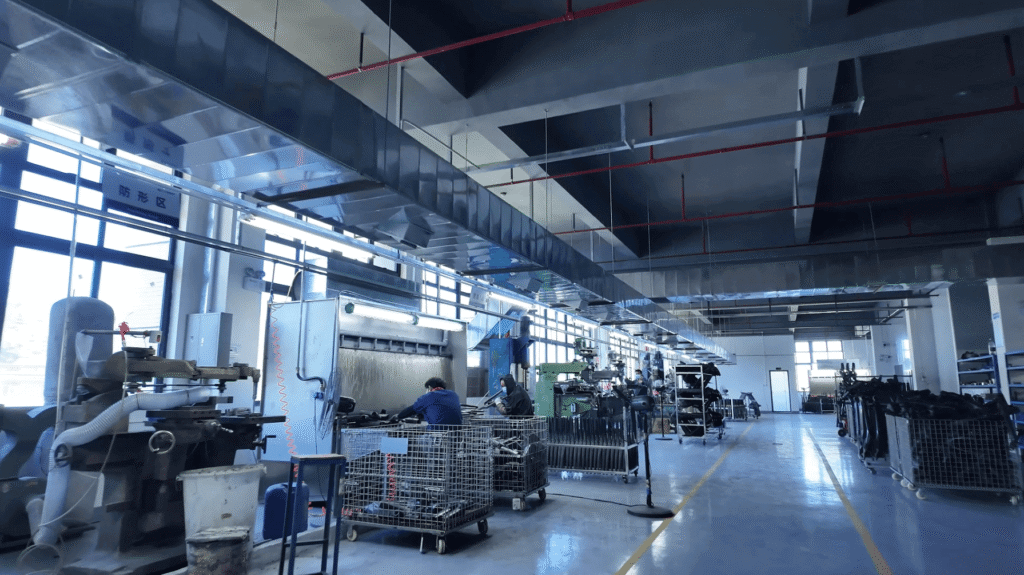

Our production process advantage of ten years of experience
As a carbon fiber bicycle parts manufacturer with more than ten years of experience, we know that the details behind each Monocoque frame determine success or failure. From frame structure optimization, multi-ply carbon lay-up, to five-way reinforcement structure, head tube reinforcement area, rear fork vibration control design, etc., we insist on strict control in every link.
At the same time, we have independent carbon fiber frame manufacturing equipment (bicycle frame making machine), and through many years of export experience, we provide customs clearance guidance, English technical parameter information, brand proofing process and other support to European and American customers, truly achieving the full chain service of “engineering + landing + delivery”.
Is the Monocoque carbon fiber one-piece frame worth buying?
Combining structural performance, manufacturing process, use and maintenance and other dimensions, the Monocoque carbon fiber one-piece frame does represent the mainstream trend of the current high-end bicycle frame. Compared with traditional welded frames, this type of structure performs better in terms of rigidity, weight, and strength consistency, and is particularly suitable for road racing, mountain cross-country and even DH fields that pursue efficiency and control.
With the maturity of China’s OEM manufacturing technology, the cost-effectiveness of this type of frame has become higher, and many European and American brands even regard it as a standard configuration for “brainless upgrades”. From the carbon fiber cloth lamination process to the customized exterior painting and varnish protection, both practicality and aesthetics can be taken into account.
Of course, the premise is that you choose the right reliable factory and a configuration that suits your own geometric dimensions. If you are looking for a lightweight, high-rigidity, professional-level riding experience-monocoque bike frame, it is worth a try.
Feel free to contact us or email us anytime to find the perfect frame for your ride.
