In the world of competitive road cycling, every watt counts. You may have heard of “CFD-tested road bike frames,” but what exactly does this mean? CFD, or Computational Fluid Dynamics, has become the secret weapon in top-tier frame design. In the past, brands relied on wind tunnel testing, but in today’s data-driven era, CFD offers greater precision, lower costs, and faster aerodynamic optimization.
Imagine a frame running through a virtual airstream, simulating thousands of riding positions and wind resistance scenarios, then fine-tuning every line and angle. According to CyclingTips’ technical evaluation, CFD-optimized aero road bike frames are, on average, 7-11 watts faster than traditional designs in real-world tests (Source: Cyclingnews Wind Drag Comparison Test). This isn’t just about the data; it’s the key to making a real-world difference.
Today, CFD-optimized carbon fiber road bike frames are standard equipment for both amateur riders striving for speed and enthusiasts racing against the clock in Sunday crits. They are not only changing the way bike frames are built, but are also redefining speed itself.
What is a CFD-tested road bike frame? Why is it becoming increasingly important?
As the cycling community’s focus on aero optimization continues to grow, more and more brands are highlighting “CFD-tested road bike frames” in their product descriptions. This isn’t just marketing buzzwords; it’s a key technology that’s truly changing the game for frame design. Whether it’s a high-end aerodynamic bike frame or a lightweight carbon fiber road bike frame, CFD is becoming an essential component of performance optimization.
CFD (computational fluid dynamics) technology allows designers to simulate the effects of air flow on a frame in a virtual environment, enabling predictive aerodynamic optimization. Compared to traditional methods that rely on experience and wind tunnels, CFD offers more precise geometric adjustments, particularly in terms of frame angles and tube cross-section design. This is why we’re seeing the new generation of aero road bike frames increasingly sporting “stealth fighter”-like appearances.
What is CFD fluid simulation technology?
CFD, or Computational Fluid Dynamics, is a scientific method that uses numerical simulation to analyze the interaction between fluids, such as air and liquids, and objects. In the bicycle industry, CFD is primarily used to simulate the drag on airflow experienced by frames, forks, wheels, and even the rider themselves.
Using 3D modeling and finite element analysis (FEA), engineers can rapidly iterate on different design options without entering a wind tunnel. For example, when optimizing an aerodynamic bike frame, CFD helps accurately analyze wind resistance sources and fine-tune microstructures like down tube angles and seat tube cutouts (rear wheel recesses). This technique is often referred to in the industry as a “virtual wind tunnel.”
The Difference Between CFD and Wind Tunnel Testing
While wind tunnel testing is still considered the ultimate verification method, CFD plays a more fundamental role in the modern frame development process. Compared to expensive and time-consuming wind tunnel testing, CFD significantly reduces trial-and-error time in the early design stages and provides flow data for various yaw angles.
For example, during bike frame building, CFD can predict the stability of a specific geometric design in crosswind conditions, a dimension that is often difficult to quantify on a large scale using traditional wind tunnel testing. In actual development, many brands use CFD to complete hundreds of virtual iterations, ultimately selecting only the optimal solution for the wind tunnel stage.
How is CFD technology used in road bicycle frame design?
In modern road bicycle frame design, CFD is widely used in the following key areas:
Optimizing frame angles and overall frame geometry: By simulating airflow, we identify angles that minimize air resistance (such as the intersection angle of the head tube and seat tube), achieving higher riding efficiency.
Selecting the appropriate tube shape: Classic aero tube designs like the truncated airfoil are the product of CFD analysis.
Integrating aerodynamic components: Designs like hidden cable routing, built-in seat clamps, and wheel clearance coordination are all achieved through precise CFD alignment.
Data-driven real-world riding simulation: Simulating drag performance under real-world riding conditions provides a reference for a more “road-feeling” approach to racing-grade carbon aero road bike frames.
In summary, CFD technology not only makes frame design more scientific and efficient, but also allows brands to leverage their technology in a competitive environment. For European and American riders pursuing marginal gains, a truly CFD-optimized road bike carbon fiber frame is their key weapon to “win in the wind.”
How does CFD improve the aerodynamic performance of carbon fiber road bike frames?
In high-end road bike design, aerodynamics is no longer the exclusive domain of top riders. A growing number of amateur riders are also paying attention to the wind resistance of carbon fiber road bike frames, especially when cruising on flat roads, fighting headwinds, or even in the crucial moments of weekend group rides. CFD (computational fluid dynamics) is the key tool for achieving true aerodynamic advantages for frames.

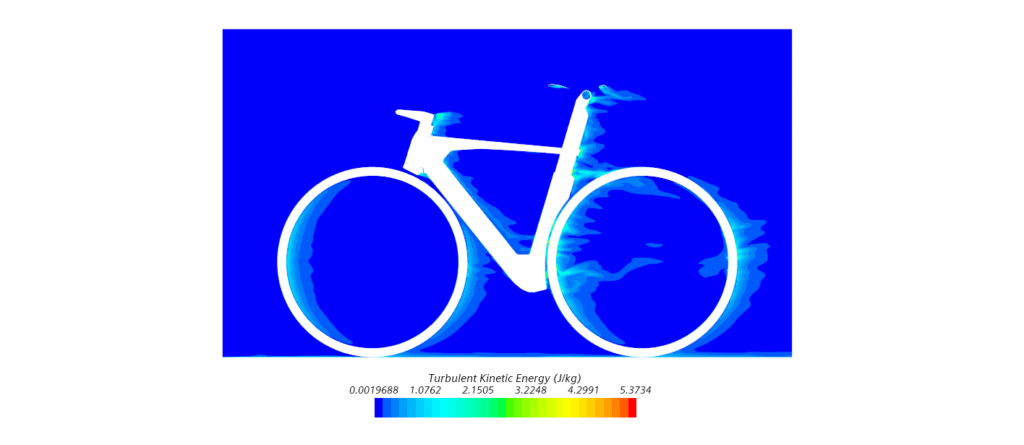

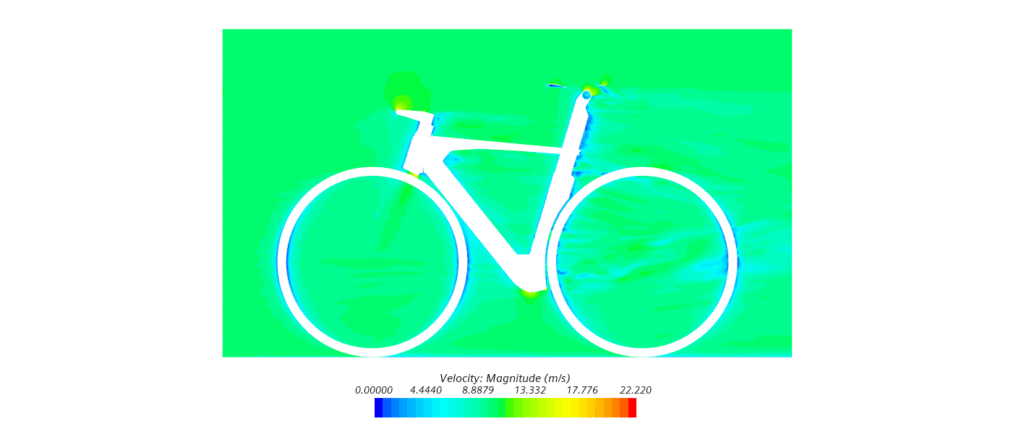

How does airflow simulation help design faster carbon fiber cycle frames?
CFD technology places the entire carbon fiber cycle frame into a virtual airflow tunnel, simulating airflow distribution and pressure changes under different wind directions (including typical yaw angles of 5° to 15°). This highly simulated “digital wind tunnel” allows engineers to identify drag hotspots in the design earlier and precisely adjust structural areas such as the downtube, seat tube, and head tube.
For example, to reduce turbulence caused by flow separation, CFD can recommend the use of truncated airfoil tube shapes, ensuring strength while retaining the majority of aerodynamic efficiency. This “pseudo-airfoil” shape, optimized through CFD, has become a standard feature of modern aerodynamic bike frames.
The direct impact of reduced drag on rider speed and stability
Drag is the biggest enemy of high-speed cycling, especially above 30 km/h, where it accounts for over 70% of total drag. The aerodynamic design of a road bike’s carbon fiber frame directly impacts your ability to ride faster and with less energy for the same power output.
A CFD-optimized frame can significantly reduce frontal drag, allowing airflow to flow more smoothly around the critical area between the frame and the rider’s torso. This not only increases average speed but also enhances crosswind stability. For example, according to Specialized Win Tunnel data, a carbon aero road bike frame tuned using CFD can save up to 20-25 seconds on a 40km ride (Source: Specialized Aerodynamics White Paper, 2022).
This is often referred to as “free speed” or “aero watts” in American cycling circles.
Typical Application Cases of CFD Optimization in Carbon Aero Road Bike Frames
The application of CFD in modern carbon aero road bike frames is not limited to tube shaping but encompasses the entire system design of the vehicle. The following are several typical practical applications:
Hidden cable routing and integrated handlebar design: Cable routing is completely embedded, and CFD simulations have confirmed that this can reduce drag by up to 3-5%;
Rear wheel cutout and seat tube integration: Leveraging CFD streamline simulations, many brands have designed compact rear wheel recesses to optimize rear wheel wake;

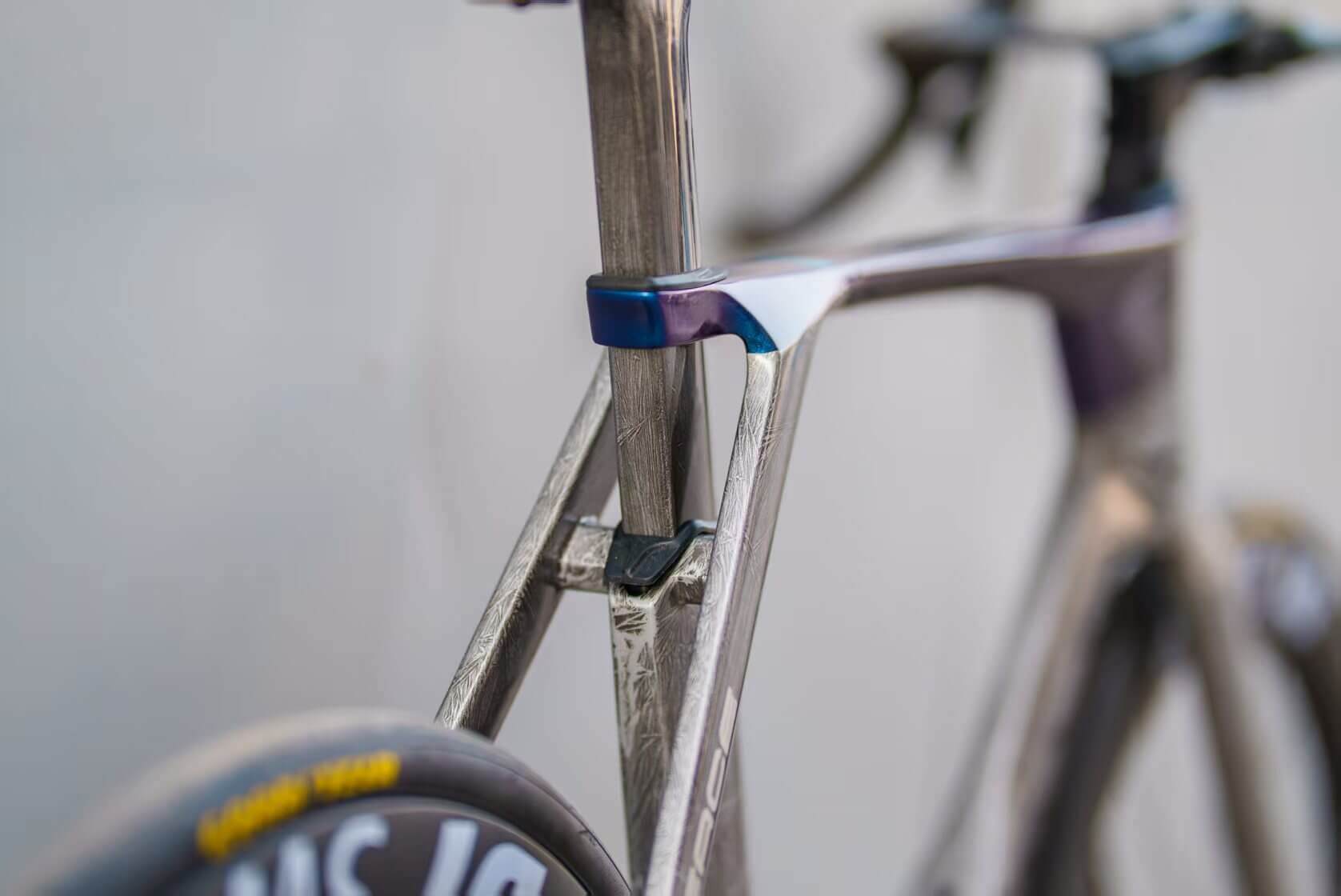

Contoured seat tube and seat post wing: CFD simulations show that these structures can balance the impact of rearward turbulence on the rider’s back, improving overall flow continuity;
Narrowed head tube and low front end design: CFD provides integrated rider and bike analysis, supporting the aero performance of these designs in real-world competition.
These designs are now widely used in carbon-grade bike frames from major European and American brands and are becoming important considerations for consumers when selecting road bike frames for sale.
Comparative Analysis of CFD and Traditional Road Bike Frame Modeling Methods
In the history of road bike frame development, early bike frame building relied heavily on empirical rules and manual prototype testing. While this approach retains its heritage in terms of craftsmanship, it is no longer adequate for today’s stringent requirements for aerodynamics and riding efficiency. In contrast, the introduction of CFD technology has not only revolutionized the carbon road bike frame development process but also redefined the logic for evaluating frame performance.
Limitations of Traditional Bike Frame Building Methods
In the past, frame design was primarily fine-tuned based on geometric rules and field test ride feedback. While intuitive, this approach lacks scientific and quantitative basis, making it a “fly-by-the-spin” approach, particularly when addressing aerodynamic details. Wind tunnel testing, while providing a reference, is costly, time-consuming, and subject to significant limitations in testing posture and environment.
Furthermore, traditional modeling methods struggle to systematically optimize the synergy between bike frame angles and streamlined structure, making it prone to the problem of improvements in one area leading to a decrease in overall aerodynamic performance.
Bike Frame Comparison Using CFD
With CFD, frame performance comparisons are no longer solely based on weight and stiffness, but rather on multi-dimensional modeling. For example, at the same power output, multiple geometric configurations can be compared based on key metrics such as aerodynamic drag, crosswind performance, and stability.
For example, a typical carbon road bike frame optimized using CFD can reduce aerodynamic drag by 8-12 watts at 40 km/h, equivalent to a free speed increase of approximately 3-5%. This “drag-to-watt” efficiency ratio is becoming a key reference in bike selection circles in Europe and the United States.

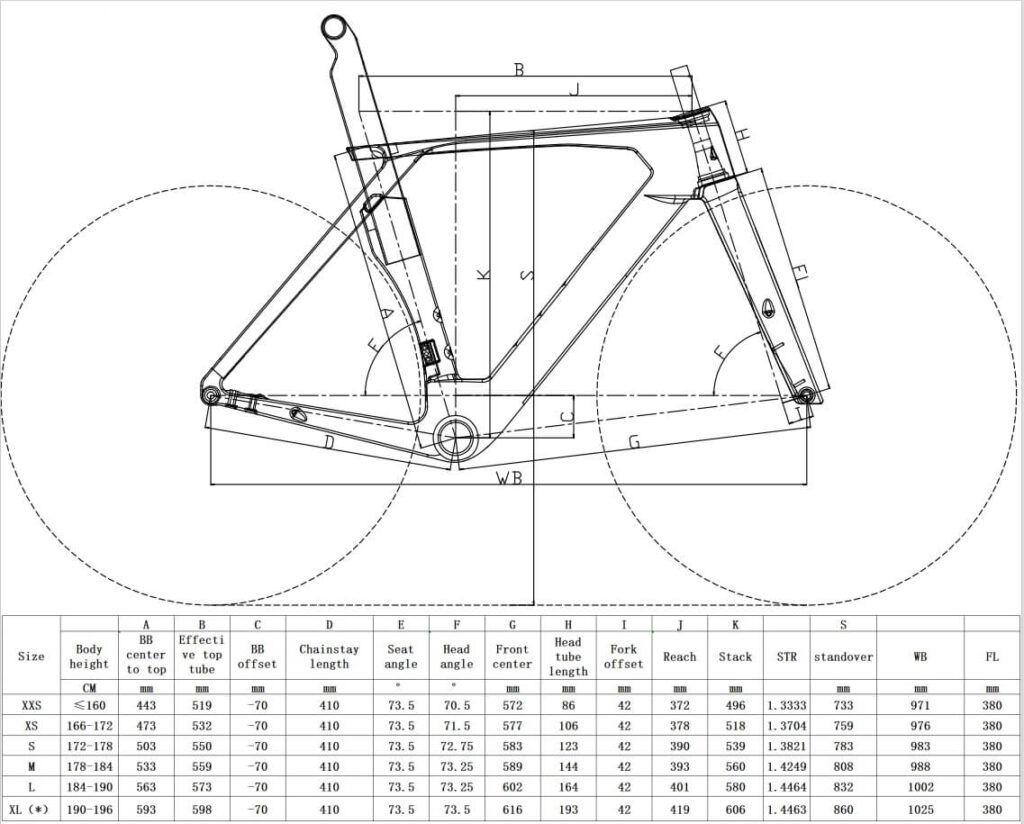

How do bike frame angles and geometry affect vehicle handling?
Bike frame angles determine vehicle handling and rider feedback. In particular, even small changes in the head tube angle and seat tube angle can affect center of gravity, steering, and pedaling efficiency.
The inclusion of CFD allows designers to balance speed and stability, finding the perfect balance between handling and aerodynamics. In practice, engineers will iteratively simulate different angle combinations and test their performance during high-speed cruising and low-speed cornering to create a road bike carbon frame geometry that best meets the demands of real-world riding.
Comparison Table: How to Measure the Overall Performance of a Road Bike Frame
| Evaluation Aspect | Traditional Method (Experience + Testing) | CFD-Optimized Approach | All-Road Bike Frame Features | Aero Road Bike Frame Features |
|---|---|---|---|---|
| Aerodynamic Performance | Based on wind tunnel tests and ride feel; slow iteration, costly | Simulates airflow across yaw angles; allows fast design iteration | Prioritizes comfort and versatility; moderate aero design | Aggressively shaped for drag savings; hidden cable routing |
| Material Engineering | Uses mid- to high-modulus carbon (e.g., T700, T800) | Supports high-performance materials like T1000 carbon fiber | More compliant layup focused on comfort and vibration dampening | Focuses on stiffness and efficient power transfer |
| Geometry (Frame Angles) | Built from geometry rules and prototypes; heavily experience-based | CFD evaluates bike frame angles vs aerodynamic/handling balance | Neutral geometry, taller stack, endurance-friendly | Aggressive geometry with precise trail/BB drop for racing feel |
| Ride Comfort & Compliance | Tuned via layup; hard to balance stiffness and comfort | CFD assists in shaping seat stays/top tube for compliance | Designed for all-day comfort, supports wider tires | Prioritizes aero performance, often sacrifices comfort |
| Best Use Cases | Commuting, long-distance rides, light gravel/hill use | Fast flats, short-distance races, group ride efficiency | “Do-it-all” setup for mixed conditions | “Wind-cheating” machine built for speed |
| Buyer Keywords | all road bike frame, endurance geometry | aero road bike frame, wind cheating geometry | Quiver killer (one bike for all) | Wind cheater (built to beat the wind) |
Buying Recommendations: CFD-Tested Bike Frame Types for Different Riders
In the European and American markets, more and more riders are considering “CFD-tested” as a key consideration when choosing a road bike frame. But does every rider need a CFD-tested carbon road bike frame? The answer depends on your budget, usage scenarios, and your focus on speed and efficiency.
Entry-Level vs. Expert-Level: Should You Buy a CFD-Tested Carbon Road Bike Frame?
For beginners, a CFD-optimized carbon bike frame can indeed offer aerodynamic advantages, but whether it’s essential depends on your primary riding purpose. If you’re primarily commuting or exercising and don’t have a particular aero requirement, a reasonably priced endurance frame with comfortable geometry will suffice.
For those planning events, group rides, or those seeking “free speed,” a CFD-tested carbon aero road bike frame will offer substantial drag savings. This is particularly true when maintaining speed (cruise holding) and accelerating out of corners.
How do you select bike frames for sale on the market?
There are numerous bike frames for sale on the market, ranging from frame-only builds to OEM factory customizations. When choosing, consider the following criteria:
Whether the CFD testing process and supporting data are clearly indicated (e.g., yaw angle simulation, drag coefficient comparison, etc.)
Whether it features an integrated aero kit (e.g., hidden cable routing, aero seatpost, etc.)
Whether the geometry is suitable for your riding style (aggressive vs. endurance)
Material design and carbon layup (e.g., T700, T800, T1000, etc.)
In European and American consumer reviews, effective criteria include “how it rides at 35km/h+” and “how stable it is in crosswinds.” These are practical user experience metrics valued by advanced users.
Buying Advice: Bike Frame Road Buying Checklist and Considerations
When choosing a road bike frame for sale, we recommend following this practical checklist:
Confirm that the geometry (stack, reach, head tube angle) matches your body type and intended riding style. For new riders unsure where to start, understanding how to measure bike frame size correctly is a crucial first step. We’ve put together a complete guide for beginners to help you dial in the right fit before investing in any road bike frame.
Specify the material: Prefer high-modulus bike frame carbon, while also focusing on comfort.
Weight doesn’t equal speed; CFD aerodynamic optimization often offers better value for money.
If your budget allows, consider future compatibility: whether it supports electronic shifting systems, wide tire designs, and more.
Ultimately, choosing a road bike frame is more like “tailoring” your equipment to your riding goals. CFD technology isn’t a gimmick; it’s a crucial tool for helping you ride faster, more steadily, and farther with the same amount of effort.
Is CFD a gimmick or a necessity? Don’t let wind resistance rob you of your riding efficiency.
In the world of performance-oriented road bikes, aerodynamics are no longer just a nice-to-have; they’re the core battleground that determines riding efficiency. Especially at speeds exceeding 30 km/h, wind resistance becomes a rider’s greatest invisible enemy. CFD (Computational Fluid Dynamics) is the “unlocking tool” in the hands of brand engineers, helping to systematically evolve road bike frames from structural optimization to aerodynamic performance.
Recalling the previous article, whether adjusting the geometry of a carbon fiber road bike frame, matching material strength, or using CFD as the first step in product development verification, the advantages it brings are no longer limited to “wind tunnel data” but are truly reflected in speed, stability, and handling.
Future Trend: More Brands Integrate CFD into the Design Process
Currently, internationally renowned brands, including Specialized, Canyon, Giant, and Cervélo, have almost all incorporated CFD simulation into their core design processes. From a vehicle development perspective, CFD is replacing traditional trial-and-error methods and becoming the key to “data-driven design.”
For niche brands or emerging manufacturers, CFD is a breakthrough point for “trading technology for market share,” enabling them to create competition-grade products with wind-cheating geometry without the resources of a wind tunnel. This trend is also driving the vehicle industry toward a more rational and refined development model.
Why Your Next Road Bike Frame Should Be CFD-Tested
If you already have a solid cycling foundation or are planning to upgrade your equipment, choosing a CFD-tested road bike frame will deliver a truly tangible improvement. You’ll notice noticeably less effort when cruising, greater stability in crosswinds, and even a slight burst of speed after a climb—and all of this isn’t a matter of feeling, but rather the “traces” of aerodynamic streamlines left by CFD optimization.
Whether you’re pursuing performance, handling, or a smarter investment, a CFD-optimized road bike frame means you’ll save every watt of power wasted and every kilometer less dragged down by the wind. As the old saying goes in European and American cycling circles: “Don’t let the wind ride your watts.”
If you’re ready to upgrade or have questions about the right frame for your ride, feel free to reach out—we’re here to help.
