Many cyclists are often confused by sizing charts when buying a road bike for the first time. Looking at road frame size charts, stack, reach, and top tube length, they assume they can simply choose the right values. However, once they get on the road, they realize their reach is too far, their center of gravity is too high, and the ride feels completely off. It’s often said in the industry that even the most expensive carbon fiber is useless if the frame isn’t the right size. According to a BikeRadar survey, over 60% of new riders choose the wrong frame size when they first buy a bike, and even experienced cyclists often misunderstand the frame size charts from different brands.
Choosing a road bike frame isn’t just about matching size to height; it’s more like geometry. Different geometries—such as race geometry and endurance geometry—determine your stance and how you generate power. Especially when deciding between a carbon frame road bike and an aluminum frame, a correct understanding of road bike frame sizes is crucial to unlocking the material’s potential. Those seemingly minor differences can often mean the difference between a satisfying and unpleasant long-distance ride. This article debunks common misconceptions about road frame size charts, combining industry data with real-world experience to help you avoid the most common bike-selection pitfalls and find the optimal frame proportions for your body and riding style.
Why Road Frame Size Still Confuses Many Riders
Many cyclists still choose the wrong size when selecting a bike based on a road frame size chart. This is because size isn’t just a matter of height or seat tube length; it’s more about frame geometry. Reach and stack, two parameters that determine posture and center of gravity, truly impact the riding experience.
Road bike frame sizes often vary significantly between brands. For example, according to BikeRadar data, the reach of a size 54 bike can vary by 15–20mm between brands, significantly altering riding posture and comfort. As the industry jargon goes, “When the size is right, your legs work hard; when the size is wrong, your whole body protests.”
Furthermore, differences in race and endurance geometry, or the structural differences between gravel and road bike frames, can also influence sizing decisions. This article will help you understand bike charts for frame sizes, debunk common misconceptions, and teach you how to find the right frame proportions for your riding style.
Understanding the Road Frame Size Chart
Understanding the True Meaning of a Road Frame Size Chart
Properly understanding a road frame size chart is crucial for choosing the right road frame. Many riders focus solely on seat tube length or the frame code, overlooking key geometric parameters like top tube, reach, and stack. These parameters directly impact riding posture, handling, and long-distance comfort, and also determine whether the best frame for a road bike is truly suitable for your body proportions. The common industry jargon: “Size is just the starting point, geometry is the soul”—this is exactly what it means.
What Is a Road Frame Size Chart and How It’s Measured
A road frame size chart presents frame geometry in a tabular format to help riders determine the appropriate size. Common measurements include:
- Seat tube length: Traditionally used as a guide to height, but only reflects a portion of the body.
- Top tube length: Impacts forward lean and arm reach when riding.
- Reach: The horizontal distance from the bottom bracket to the front of the head tube, which directly determines upper body comfort.
- Stack: The vertical height from the bottom bracket to the top of the head tube, which influences whether the riding position is upright or aggressive.
If you only rely on your height to choose a size, without considering the standard method for measuring a road bike frame, you can easily end up with your upper body too lean and your legs not stretched enough. The correct approach is to consider your body proportions, riding style, and geometry.
Bike Charts for Frame Sizes: Why Numbers Differ Among Brands
Bike charts for frame sizes often differ between brands. For example, on frames marked 54 from Trek, Giant, and Canyon, the reach can vary by 15–20mm, which can significantly alter the riding experience.
The fundamental reason for these differences lies in the geometry:
Race geometry: emphasizes an aggressive stance, with a lower head tube, less stack, and a pronounced forward lean.
Endurance geometry: Optimized for comfort, with a taller head tube, a larger stack, and a more upright stance.
Therefore, choosing a size based solely on numbers is a mistake. The correct approach is to consider the brand’s geometry, your personal riding goals, and road frame size data to find the frame that truly suits you.
5 Common Myths About Road Frame Sizes
5 Common Misconceptions About Road Frame Sizes
When choosing a bike, many riders fall into several outdated misconceptions. Properly understanding road frame size charts and bike frame size charts can help you avoid buying an inappropriate frame, especially when choosing a carbon frame road bike or when switching from a gravel frame to a road frame. Below are five common misconceptions and their explanations.
Myth 1: Your Height Directly Determines the Frame Size
Many people believe that height determines everything, but this isn’t the case. Inseam (hip height) and reach are the key factors determining riding comfort and efficiency. Even for riders of the same height, different leg and torso lengths can result in a difference of one or two sizes in their optimal road frame size. A common saying in the industry is: “Height is just a guideline; leg length is the gold standard.”
Myth 2: A Smaller Frame Means Faster Speed
Many new riders mistakenly believe that a smaller frame is more agile and faster. However, undersized road bike frames can lead to excessive forward lean, unstable handling, and increased stress on the knees and lower back. Comfort and riding efficiency are particularly reduced on long rides or climbs. Choosing the best road bike frame is about balancing speed and comfort, not blindly pursuing a smaller frame.
Myth 3: All Road Bike Frame Sizes Are the Same Across Brands
Bike charts for frame sizes vary significantly across brands. Even with the same size, such as a size 54, reach and stack on Trek, Giant, and Canyon bikes can vary by 15–20mm. Ignoring these differences can result in an unnatural riding position. Therefore, it’s important to consult a geometry chart and consider the brand’s geometry principles when purchasing.
Myth 4: Gravel Frame vs. Road Frame — They Fit the Same
Gravel bike frames and road bike frames differ in stack height, reach, and tire clearance. Trying to select a gravel frame directly based on a road frame size chart can lead to an uncomfortable forward lean or an unstable center of gravity. Industry jargon: “Off-road frames are not the same as road frames.” Carbon gravel frames, in particular, require a precise fit to your body proportions.
Myth 5: Carbon Frame Road Bikes Don’t Need a Perfect Fit
Even high-end bikes with carbon frames still have their comfort and handling impacted by size. A properly sized road frame can fully utilize the lightweight and stiffness advantages of carbon fiber, while an inappropriate size, even with the finest materials, can still cause fatigue in the wrists, shoulders, neck, and waist. Therefore, when choosing the best frame for a road bike, you should optimize both geometry and material properties.
How to Measure a Road Bike Frame Correctly
How to Correctly Measure Road Frame Sizes
- Choosing the right road frame size isn’t just about looking at numbers in a table; accurate measurements ensure riding comfort and efficiency.
- Understanding how to measure a road bike frame is essential for riders, bike shops, and even carbon frame manufacturers.
- Correct measurement can prevent wrist, shoulder, neck, and waist fatigue caused by improper sizing, while also fully maximizing the lightweight and stiffness of a carbon frame road bike.
Step-by-Step Guide: From Inseam to Reach
The measurement process should begin with basic anatomy data:
- Inseam (Inseam Length): Stand with your back against a wall without shoes. Place a book under your crotch and measure the distance from the ground to the top of the book.
- Seat Tube Estimation: Use the traditional formula of inseam × 0.67 to calculate the approximate seat tube length.
- Top Tube, Reach, and Stack Measurements: Calculate the ideal reach and stack height using geometric formulas or by referring to a brand’s road bike frame sizes chart.
- Verification by Actual Measurement: We recommend a test ride to confirm the reach and handlebar extension are comfortable.

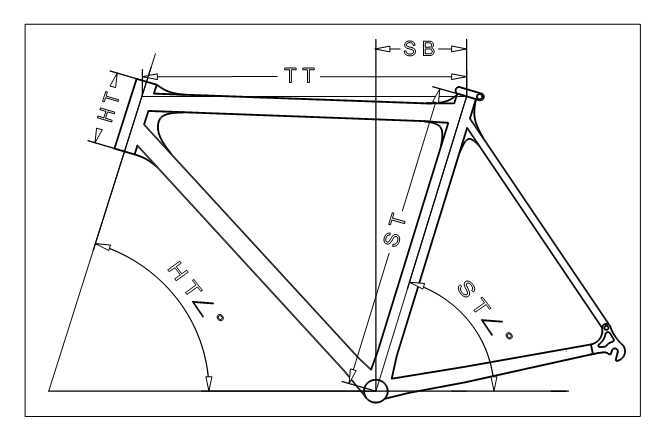

We recommend using simple diagrams to illustrate the measurement locations for the seat tube, top tube, reach, and stack, so beginners can intuitively understand each parameter. As the industry often says, “Numbers are just a guide; a test ride is the key to confidence.”
Common Tools and Mistakes in Measurement
Measuring tools include a tape measure, goniometer, and level. Professional bike fitting tools can be used as needed.
Common Mistakes:
- Ignoring the seat tube angle can lead to a more forward-leaning or knee-stressing riding position than predicted.
- Measuring only height without measuring inseam can ignore the impact of leg length on pedal stroke.
- Ignoring the need for fine-tuning reach through handlebar and stem adjustments.
Understanding these details, combined with bike charts for frame sizes, can ensure you’ve selected the best frame for your road bike, especially for carbon fiber frames or those with race geometry.
Choosing the Best Frame for Road Bikes — Beyond Numbers
Choosing a road bike frame isn’t just about numbers.
When choosing the best frame for a road bike, don’t just focus on the numbers on the road frame size chart. You also need to consider the geometry, riding objectives, and material properties. The seat tube, top tube, reach, and stack of a road bike frame all influence riding posture, power transfer, and long-distance comfort. The lightweight and stiffness of carbon fiber (a carbon frame road bike) can improve handling and acceleration without sacrificing comfort.
Different geometries suit different riding needs:
- Race geometry: With a low head tube, small stack, and pronounced forward lean, it’s ideal for racing or high-speed training, fully utilizing the stiffness of the carbon frame.
- Endurance geometry: With a high head tube, large stack, and a comfortable stance, it’s ideal for long-distance riding or commuting, reducing back stress.
- Gravel vs. road frame comparison: Gravel frames offer a higher stack and tire clearance, making them suitable for a variety of riding surfaces. It’s not advisable to directly select a frame based on the road frame size chart.
Choosing the right frame requires a careful consideration of size, geometry, and material. There’s a saying in the industry: “Numbers are just the starting point; geometry and material are the soul.” Consider your height, hip height, and riding style, and consult brand bike charts for frame sizes to find the right road frame for you.
Read the Chart, But Listen to Your Body Too
Conclusion: Understanding sizing charts is crucial, but it’s also crucial to listen to your body’s feedback.
When choosing a road bike frame, road frame size charts and bike charts for frame sizes provide important references, but they aren’t absolute standards. This article explains the key points of bike selection, starting with sizing misconceptions, measurement methods, geometric differences, and the advantages of carbon fiber materials. Height is only a guideline; inseam, reach, and stack are the parameters that truly impact riding comfort and efficiency. Differences between brands and geometric designs mean that frames of the same size can have vastly different riding experiences. While carbon fiber frames are light and stiff, they also require the right size to achieve optimal performance.
A common industry jargon: “Numbers are a guide, test rides are the key,” emphasizes the importance of personal experience. Whether choosing race geometry for speed or endurance geometry for comfort, the choice should be based on your individual body proportions and riding style.
For those seeking professional advice, consider the custom services of brands or manufacturers, which offer measurement, geometry matching, and material optimization to create the optimal road bike frame that truly meets your needs. In summary, the size chart is the starting point, and physical feedback and actual test rides are the final judgment criteria. Only by knowing how to balance the two can you find a road frame that is both comfortable and efficient.
