In the world of carbon fiber bicycles, the frame’s construction directly impacts the riding experience and performance. Monocoque frames (molded monocoque frames) and traditional lugged carbon frames (glued carbon frames) each have their own advantages. The former is known for its one-piece construction, while the latter is constructed from multiple pieces. In recent years, a growing number of high-end brands, such as Pinarello and Colnago, have adopted the monocoque design, launching classic models like the Dogma and C60.
From an engineering perspective, the advantage of the monocoque frame lies in its seamless structure, which reduces stress concentration at the joints and improves frame rigidity and strength. However, this design also presents challenges such as high mold costs and limited size options.
In terms of durability, modern carbon fiber frames have significantly improved their impact resistance. However, for amateur cyclists, the traditional lugged design may offer advantages in terms of repairability and fit.
In summary, the choice between a monocoque frame and a lugged carbon frame should be determined by personal riding needs, budget, and frame performance preferences. Whichever design you choose, understanding their structural features and performance differences will help you make a more informed choice.

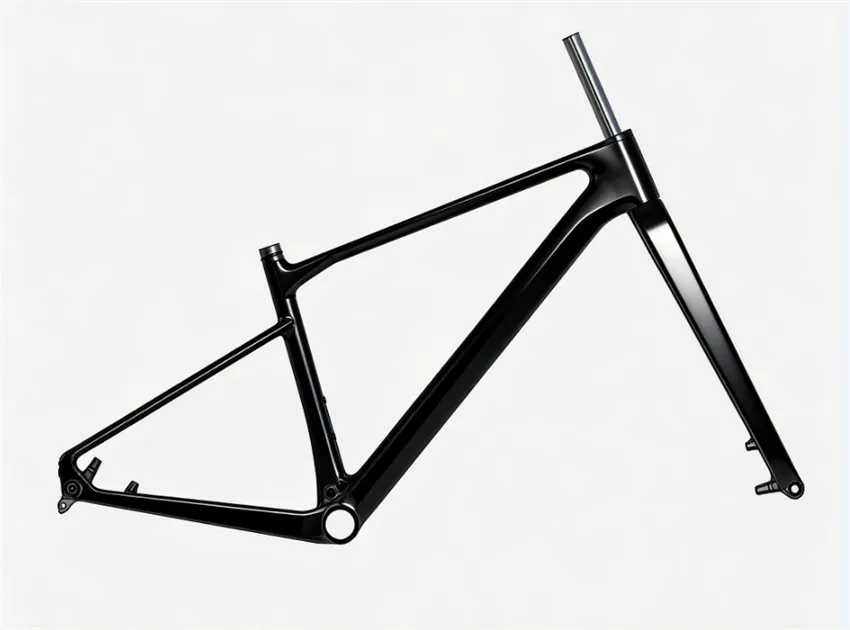

What is a Monocoque Frame?
A monocoque frame, also known as a one-piece carbon fiber frame, is a structure in which the entire frame is molded from a single piece or a small number of sheets. Unlike traditional lugged carbon frames (glued and spliced frames) or welded aluminum/titanium frames, the monocoque design eliminates numerous seams and glue points, resulting in more even stress distribution and improved overall frame stiffness and strength. For high-end road bikes, TT/triathlon bikes, and some mountain bike racing models, the monocoque frame has become synonymous with lightweighting and high performance.
In practice, riders and engineers sometimes refer to this type of frame as “full carbon layup” or “CF monocoque,” particularly when discussing the number of carbon fiber layers and layup orientation. In contrast, traditional lugged frames require multiple carbon fiber tubes to be spliced together, with epoxy glue applied to the seams. This method offers greater manufacturing flexibility, but strength and stiffness are compromised due to the seam design.
Definition and Basic Structure of the Monocoque Frame
The core of a monocoque frame lies in its integrated, integrated structure. The downtube, toptube, seat tube, and headtube are typically formed in a single mold. The material used is primarily prepreg carbon fiber sheets, which undergo a heat-pressing and curing molding process to create a seamless, continuous structure.
Compared to traditional spliced frames, monocoque frames not only reduce stress concentration points but also achieve a better balance between lightness and stiffness. For example, a carbon monocoque bike frame can achieve a combination of strong longitudinal stiffness and lateral smoothness during riding by adjusting the layup thickness and carbon fiber orientation, meeting the diverse demands of climbing, sprinting, and long-distance endurance riding.

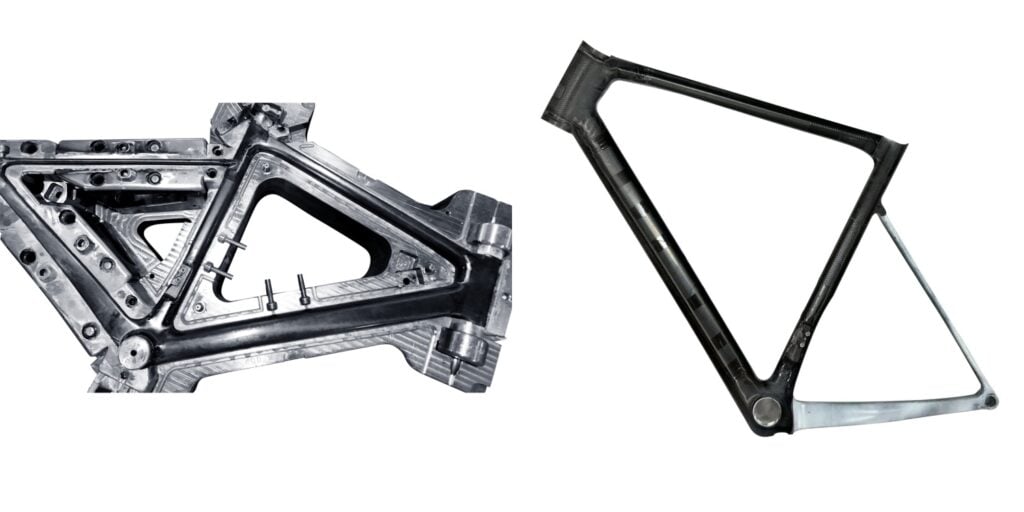

Manufacturing Process of Carbon Fiber Monocoque
The manufacturing process is a key factor in determining the performance of a monocoque frame. The main processes include:
Single-piece molding
Using a single sheet of prepreg to lay out the entire frame mold
High-temperature and high-pressure curing creates a seamless structure
Advantages: High rigidity, light weight, and uniform stress distribution
Disadvantages: High mold costs and limited sizing
Multi-piece layup
The top and bottom tubes, chainstays, and seatpost are molded separately and then bonded using carbon fiber glue or heat presses.
Advantages: Flexible customization of various sizes, suitable for small and medium-volume production
Disadvantages: Seams can become stress concentration points, slightly increasing weight.
By controlling the number of carbon fiber layers, fiber orientation, and resin content, engineers can precisely tune the stiffness, strength, and comfort of a monocoque frame. This is why top-tier monocoque frames offer a significant advantage in competition, while also allowing everyday riders to choose a frame based on their performance needs.
Comparison between Monocoque Frames and Traditional Lugged Carbon Frames
In carbon fiber frame design, the differences between monocoque and traditional lugged carbon frames are not only reflected in the manufacturing process but also directly affect riding performance, weight, and durability. Understanding the technical characteristics of each will help cyclists make an informed choice based on their needs.
Strength and Stiffness Analysis
From a structural mechanics perspective, the carbon monocoque utilizes a one-piece continuous carbon fiber layup (full layup) to distribute stress, significantly improving the frame’s torsional stiffness and bending resistance. Experimental data shows that under a 500N longitudinal load, the maximum bending deflection of a monocoque frame is approximately 15–20% lower than that of a traditional lugged carbon frame (Source: swi-cycling.com).
In real-world riding, carbon monocoque bike frames demonstrate greater power transfer efficiency during climbing and sprinting. While lugged carbon frames may experience slight flex at the seams, they remain sufficiently stable for daily commuting or long-distance rides. Furthermore, the seamless structure of the monocoque frame provides excellent shock absorption, cushioning small bumps at high speeds and reducing vibration transmitted to the arms and shoulders.
H3: Weight-Performance Tradeoff

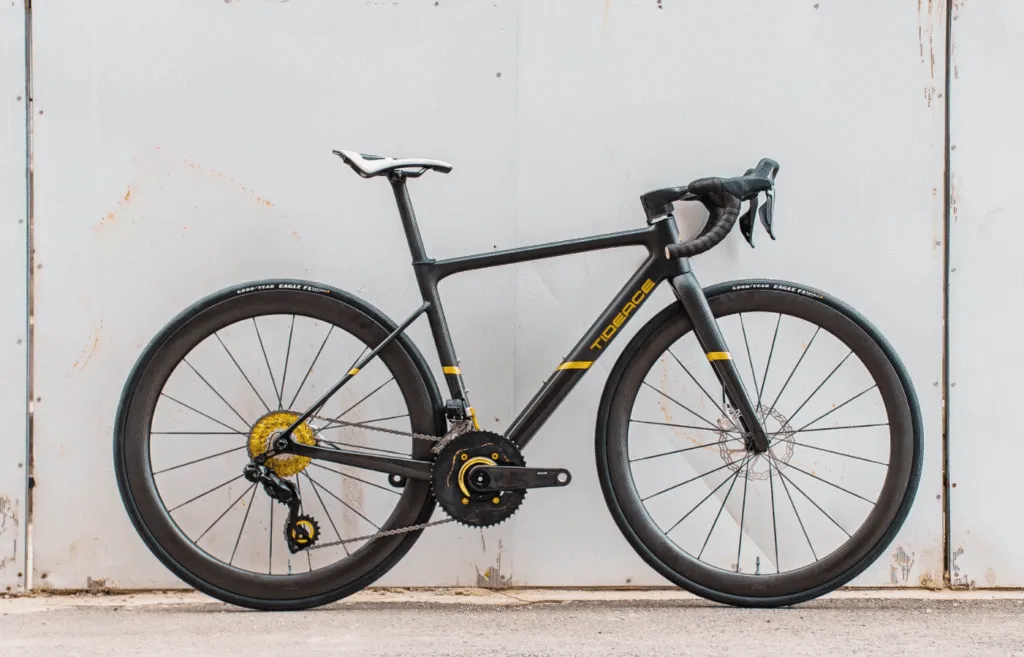

The carbon monocoque bike frame offers significant lightweight advantages. Its one-piece construction eliminates glue points and redundant reinforcements, resulting in an overall weight reduction of typically 150–250 grams compared to a lugged frame of the same size (Source:mondincecycle.com). This can make a noticeable difference when climbing and accelerating.
In contrast, while lugged carbon frames offer manufacturing flexibility and can be easily customized to specific sizes, they require additional glue or carbon fabric at the tube seams, resulting in a slightly higher weight. Furthermore, their lateral stiffness is slightly reduced during high-power sprinting. For riders seeking lightweight and competitive performance, monocoque frames are generally more appealing.
H3: Durability and Maintenance Costs
In terms of durability, modern carbon fiber monocoque frames, through optimized layup thickness and resin impregnation, are able to withstand long rides and repeated impacts without cracking. In daily use, monocoque frames are simple to maintain, requiring no frequent inspection of seams or reinforcement of glue lines.
However, traditional lugged carbon frames offer greater flexibility in repair and upgrades. For example, minor damage to the seatpost or chainstay can be simply replaced or re-glued, whereas a cracked monocoque frame requires more professional repair or complete replacement. The maintainability of lugged frames is a significant advantage for amateur cyclists.
Who is a Monocoque Frame Suitable for?
Choosing a monocoque frame isn’t simply a matter of weight or price; it’s determined by riding needs, riding style, and performance preferences. Different riders experience distinct differences, so understanding its strengths and limitations is crucial.

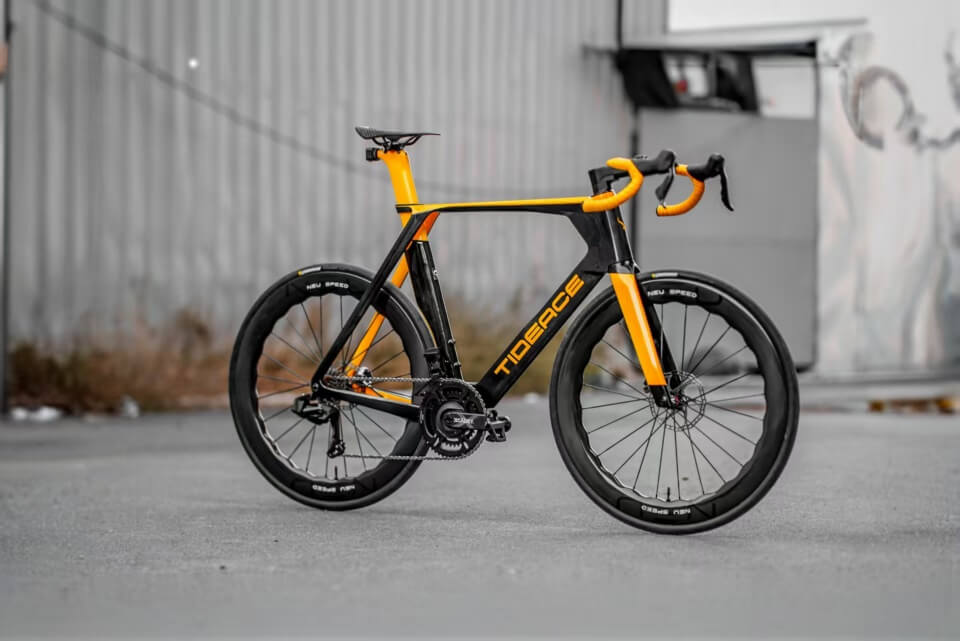

Competitive Riders and Professional Racing
For competitive riders seeking high power output and precise force transfer, the monocoque frame’s one-piece construction provides exceptional torsional stiffness. During climbs, sprints, or TT/Triathlon competitions, this high-stiffness allows for more direct pedaling force transfer to the wheels, minimizing energy loss. Combined with its lightweight design, it maximizes acceleration and explosive power on climbs. This is why high-end road racing bikes and time trial bikes often utilize carbon monocoque frames.
Everyday Cycling and Long-Distance Touring
For everyday commuters and long-distance riders, the durability and comfort of a monocoque frame are equally important. By optimizing fiber orientation and resin infusion, modern carbon fiber monocoques effectively absorb road vibrations and reduce arm and shoulder fatigue during long rides, while maintaining sufficient weight and stability. In contrast, traditional lugged carbon frames offer greater flexibility in repair and adaptability, making them suitable for riders who frequently adjust seatposts or replace components.
Purchasing Recommendations and Selection Points
When choosing between a monocoque frame and a lugged frame, consider the following:
Budget and Value: Monocoque frames are typically more expensive than lugged frames due to the high mold and manufacturing costs. Amateur riders can weigh the return on investment based on their performance needs.
Riding Needs: Riders seeking competitive performance and lightweight are more suitable for carbon monocoques; riders focusing on everyday use, ease of repair, or a wide range of sizes may consider lugged carbon frames.
Maintenance and Upgrades: Monocoque frames are durable but require more repairs; lugged frames are easy to repair or upgrade, making them suitable for frequent DIY or modification.
A sound understanding of the structural features, performance advantages, and maintenance costs of a frame monocoque will help riders make the choice that best suits their needs.
Conclusion: Is the Monocoque Frame Truly Stronger?
Based on the previous analysis of structure, manufacturing process, performance, and usage scenarios, the monocoque frame does indeed outperform traditional lugged carbon frames in several key metrics, but the advantages and applicability need to be weighed based on riding needs.
Comprehensive Performance Comparison Summary
Strength and Stiffness: The monocoque frame reduces stress concentration through continuous layup and full carbon layup, providing excellent longitudinal stiffness and bending resistance, which are particularly evident in climbing and sprinting. In contrast, the seams and glue layers of lugged frames may cause localized micro-flexing, but they are still sufficiently stable for daily riding and long-distance endurance riding.
Weight and Lightweight: Carbon monocoque bike frames are lighter overall due to the elimination of excess glue layers and splicing materials, improving acceleration and climbing efficiency. Traditional lugged carbon frames are slightly heavier due to the splicing of tubes and thicker glue layers, but they offer advantages in durability and dimensional flexibility.
Comfort and Durability: Modern carbon fiber monocoque frames offer both shock absorption and long-distance comfort through their layup design. Lugged frames, on the other hand, offer greater flexibility for repair and upgrades, allowing for partial repairs or component replacement.
Engineer’s Professional Advice
Suitable Investors in Monocoque Frames:
High-intensity competitive riding, such as road racing, TT/Triathlon competitions
Riders seeking lightweight and direct power transfer
Riders requiring a balance of comfort and high rigidity for long-distance endurance riding
Traditional Lugged Carbon Frames Still Suitable for:
Budget-Constrained or Value-Forward Riders
Daily Commuters, Weekend Getaways, or Long Tours, who require flexible repairs or modifications
Riders who enjoy DIY or custom sizing
Overall, monocoque frames are more suitable for riders seeking extreme performance and lightweight, while lugged carbon frames still offer advantages in maintainability, flexibility, and cost control. Understanding the structural characteristics, performance differences, and usage scenarios of the two will help riders make the best choice for their needs.
FAQs about Carbon Monocoque Frames
Q1: What is a Monocoque Frame?
A monocoque frame is a frame structure formed in a mold using a single or a small number of carbon fiber sheets laid up in a full carbon layup. Unlike traditional lugged carbon frames, monocoque frames lack unnecessary seams and glue points, resulting in more even stress distribution and superior stiffness and strength. They are commonly found in high-end road bikes, TT/triathlon bikes, and lightweight mountain bike racing bikes, and are particularly effective in competitive cycling, where torsional stiffness and power transfer efficiency are key.
Q2: Which is more durable, a carbon monocoque or a traditional frame?
Modern carbon fiber monocoque frames have achieved exceptional durability through optimized layup orientation, number of plies, and resin impregnation. They can withstand daily riding, long training sessions, and even minor impacts without cracking. In contrast, while lugged carbon frames offer slightly lower single-point resistance, their spliced design allows for more flexible repairs and localized restorations. Minor frame damage can be repaired by re-gluing or replacing tube sections, while monocoque frames require professional repair or complete replacement.
Q3: What types of riding are Carbon Fiber Monocoque frames suitable for?
Competitive and Racing: The high stiffness and light weight make monocoque frames ideal for high-intensity riding, such as road racing, TT/Triathlons, and hill sprints.
Long-Distance Endurance: By optimizing the ply angles, carbon monocoque bike frames effectively absorb road vibrations, ensuring comfort over long distances while maintaining low weight and stability.
Daily Riding and Commuting: While monocoque frames offer excellent performance, lugged frames offer advantages in maintainability and cost-efficiency. If repairability or budget are more important, a traditional spliced frame may be more suitable.
