Why Choose a Light Carbon Gravel Frame?
The Carbon Fiber Trend in Gravel Bikes
At UNBOUND Gravel and the UCI Gravel World Series, the podiums are dominated by riders emphasizing “lighter, faster, wider tires”—all achievable thanks to the lightest gravel bike frame. Compared to aluminum or steel, carbon fiber maintains high stiffness while cutting total bike weight to around 1 kg, enabling faster acceleration on gravel climbs and open terrain.
Manufacturers and Chinese OEMs often discuss the benefits of light carbon gravel frames:
-
Vibration damping – directional layups absorb high-frequency shocks, reducing hand and back strain.
-
Design freedom – reinforcement in key areas (head tube, bottom bracket) ensures precise handling.
-
Eco-friendly trend – some brands began using recyclable carbon fabrics in 2025, aligning with “green outdoor” initiatives.
Riders frequently ask, “is a lightweight gravel frame good for long rides?” The answer is yes—on endurance rides over 200 km, shedding 400–600 g often saves 5–8% of energy, keeping you strong for a final sprint or escape.
Lightweight Meets Aerodynamics – Balancing Speed and Smoothness
Thanks to wide tires and integrated cockpit designs, the aero gravel bike frame trend merges road bike aerodynamics with off-road resilience. Hidden cables and aero-shaped forks can reduce drag by 5–8 W above 35 km/h, all while preserving a 45 mm+ tire clearance—making it a top choice for aero gravel frame for mixed terrain.
Being lightweight doesn’t mean rigid. Top-tier models use flexible 30/40T fibers in the top tube and rear stays, giving quick response during sprints without sacrificing comfort over rough ground.
Insider tip: For a bike under 1,000 g with aerodynamic tubing, you get a dual-purpose light carbon gravel frame—fast on pavement, steady off-road. That’s why gravel bike frame trend continues to heat up in 2025.
Frame Size Is Critical (Use the Gravel Frame Size Chart)
Choosing the right size is often overlooked but crucial. A high-end light carbon gravel frame is useless if its geometry doesn’t match your body—leading to discomfort, poor handling, and even injury.
How to Use the Gravel Frame Size Chart
Gravel geometry blends road and mountain bike traits, so sizing differs. Use a detailed gravel frame size chart when matching rider measurements:
| Height (cm) | Inseam (cm) | Frame Size (cm) | Size (XS/S/M/L/XL) | Notes |
|---|---|---|---|---|
| 155–165 | 70–75 | 47–49 | XS/S | Petite/ female riders |
| 165–172 | 75–78 | 50–52 | S/M | Typical Asian male |
| 172–178 | 78–82 | 52–54 | M | Global standard |
| 178–185 | 82–86 | 54–56 | M/L | Mid taller builds |
| 185–192 | 86–90 | 56–58 | L/XL | Tall riders |
| 192+ | 90+ | 58+ | XL | Custom recommended |
When using compact geometry, refer primarily to S/M/L sizes—and always check reach and stack.
Key Geometry: Reach, Stack & BB Drop
Beyond size, geometry greatly affects fit and feel:
-
Reach – longer means more aggressive forward position; shorter is more relaxed.
-
Stack – height determines comfort: taller for upright riding, lower for advanced positions.
-
BB Drop – lower keeps the bike stable and grounded on gravel.
Riders who demand stability often choose aero gravel bike frames with BB Drop ≥70 mm, enhancing corner control on uneven terrain.
Pro tip: For endurance or competitive races, prioritize the right combination of reach and BB drop—these determine long-distance comfort and handling.
Fit Suggestions for Asian vs. Western Riders
From our 10+ years of manufacturing experience:
-
Asian riders (China/Japan/Korea): typically lean with long legs. We recommend shorter reach, taller stack, and BB Drop around 65–70 mm. Our custom influx of custom gravel frames for Asia reflects those specs, easing lumbar strain.
-
Western riders (North America/Europe): taller build, longer reach. They often choose open mold gravel frames with aggressive fit, adjusting geometry as needed.
Carbon Process & Material Grades
T700 vs. T800 Carbon – Weight & Strength
The heart of a true light carbon gravel frame is the grade and layup of carbon fiber. Most frames use Toray T700 or T800:
| Carbon Type | Tensile Strength (MPa) | Modulus (GPa) | Frame Weight |
|---|---|---|---|
| T700 | ~4900 | ~230 | 1050–1100 g |
| T800 | ~5600 | ~295 | 880–950 g |
Same size, geometry, resin system.
-

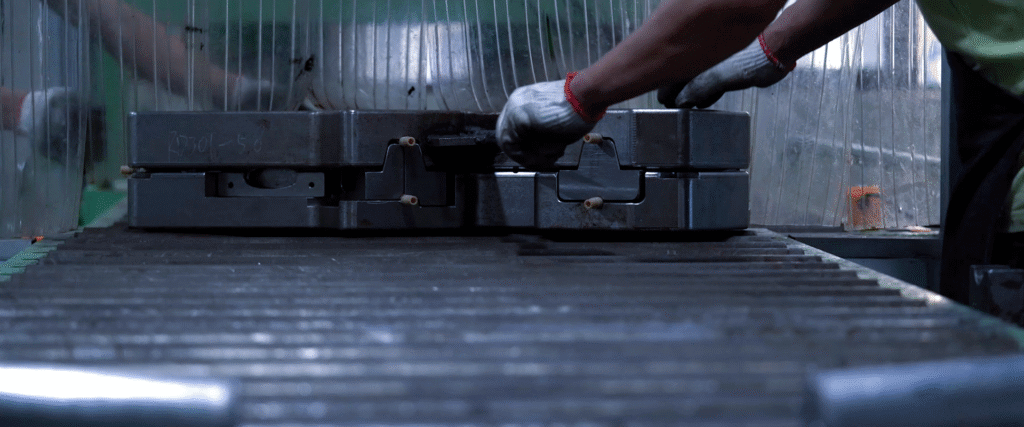

Weight Savings: T800 enables lightest gravel frames below 900 g; advanced curing (e.g., EPS molding + vacuum prepreg) cuts resin by 3–5%.
-
Ride Feel: T700 absorbs impacts better—ideal for rugged terrain; T800 delivers superior stiffness-to-weight, boosting climb and sprint responsiveness.
-
Hybrid Layups: Many premium frames reinforce head tube and bottom bracket with T800, while using T700 in stays for compliance and damping.
Open Mold vs. Custom Frame Differences
-

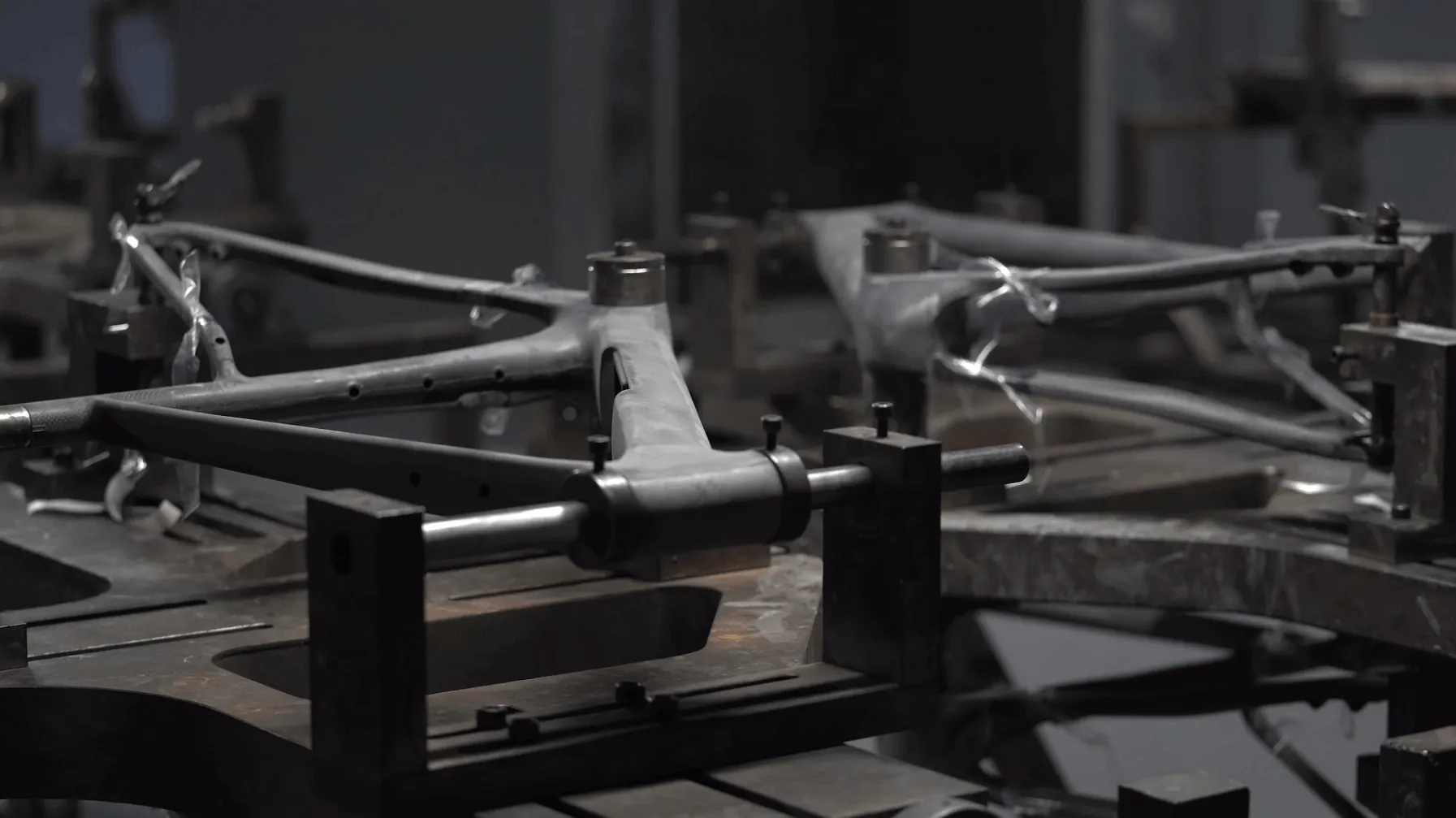

Open mold gravel frame: Standardized molds—cost-effective, fast to produce, limited geometry/design. Ideal for brands looking for quick entry or budget-friendly frames.
-
Custom gravel frame: Designed to spec with tailored geometry, tubing, cable routing, and aero profiles. Offers high differentiation and premium branding—but requires longer development and higher tooling costs.
Best use cases:
-
Quick-to-market brands and cost-conscious riders should opt for open mold.
-
Custom frames are ideal for shops and pro riders who require personalized fit and look.
Compatibility & Expandability (Expandability of Gravel Bike Frames)
Tire Clearance, Rack Mounts & Cable Routing
A high-quality light carbon gravel frame should support 40 mm+ tire clearance—some up to 50 mm—enhancing traction and comfort. Featuring rack mounts enhances touring and utility use. Fully integrated internal cable routing protects lines and maintains a clean aero profile.
Compatible with Electronic & Mechanical Drivetrains + Disc Brakes
Great gravel bike frameset support both electronic (Shimano Di2, SRAM AXS) and mechanical drivetrains, with well–placed cable ports. Disc brake compatibility with Post Mount or Flat Mount caliper standards ensures solid stopping power, supported by reinforced mounting points.
Future Upgrade Readiness
Frames with multiple mounting points can accommodate cages, tool kits, battery packs, and more. Support for various wheel and tire sizes allows simple upgrades. Internal routing enables smooth drivetrain swaps, saving costs later.
Aerodynamics & Ride Style Alignment (Aero Gravel Bike Frame)
Do You Need Aero Design?
A suspension gravel bike frame improves comfort and control on rough terrain by absorbing shocks—ideal for long rides and mixed surfaces.
In contrast, an aero gravel bike frame reduces drag for better speed and efficiency on fast, open roads. However, it may limit tire clearance and gear mounts. Choose based on your riding style and terrain needs.
Races vs. Touring vs. Commuting
-
Racing: Go lightweight and aero—choose the lightest gravel bike frame for stiffness and speed.
-
Touring: Prioritize comfort, utility, and clearance—go classic gravel.
-
Commuting: Look for light, efficient frames with enough compatibility and aero features for flexibility.
Balancing Weight, Stiffness & Comfort
Key trade-offs in a light carbon gravel frame:
-
Weight: critical for climbs and acceleration—signature of a top-tier frame.
-
Stiffness: ensures responsiveness and power transfer.
-
Comfort: driven by lay-up and geometry—reduces fatigue over long days.
Aero gravel frames push weight and aero improvements, with some compromise on comfort. Open mold and custom options allow frame adjustments tailored to your priorities.
Price, Origin & After‑Sales (Chinese Manufacturing Advantages)
Chinese vs. Western Brand Comparison
Chinese gravel bike frame manufacturers now produce light carbon gravel frames — some of the lightest on the market — using competitive materials and advanced craftsmanship.They offer better pricing, faster turnaround, and flexible custom options compared to pricier, slower Western brands with complex supply chains.
Pricing Logic & Value of Direct-Sales
Direct‑sales from factory eliminate middlemen, reducing gravel bike frame for sale costs while preserving quality and service. A vertically integrated factory ensures reliable delivery of both open mold gravel frames and tailored custom gravel frames.
Factory Integration & After‑Sales Support
Full-service factories compress lead times and improve communication on design and customization. With stringent quality control and certification, they provide warranties and technical service—addressing gravel bicycle frames warranty and after-sales service for gravel bike frames concerns.
Conclusion: Choosing a Light Carbon Gravel Frame That’s Truly “Your Ride Partner”
Recap of the Five Key Factors
Selecting the ideal light carbon gravel frame means carefully considering:
-
Frame size & geometry (use the chart, optimize reach/stack)
-
Carbon quality & layup (T700/T800 hybrid for optimized lightness and durability)
-
Compatibility & expandability (tire clearance, brakes, internal routing, and future upgrades)
-
Aero characteristics & riding profile (race, travel, or urban ride)
-
Price, origin, and after-sales (factory direct, warranty, service)
These cover all essential aspects for gravel bicycle frames, guiding riders toward a truly compatible ride partner.
How to Connect with a Quality Supplier
As a factory with over ten years of experience in carbon-fiber bike components manufacturing, we offer both open mold gravel frames and fully custom gravel frames. We deliver quality, customization, and service from start to finish.
Contact us info@haidelibikes.com or direct channels for expert advice and tailored solutions. We’re committed to building high-performance light carbon gravel frames that elevate every ride.
