In the world of bicycle modification and high-performance builds, internal cable routing has become a crucial indicator of a bike’s premium feel and riding experience. Especially when using carbon fiber bicycle handlebars, proper and professional cable routing not only significantly improves the bike’s aerodynamics but also prevents exposed cables from causing wear and rattling during riding. It’s a must-have skill for both DIY enthusiasts and professional team mechanics. According to Bikeradar, a leading US bicycle review website, over 70% of high-end road and mountain bikes now feature internal cable routing as standard, demonstrating the popularity and importance of this technology.
However, different types of bicycle handlebars, such as flat bars, drop bars, and specialized carbon handlebars, present varying degrees of difficulty in routing cables. A single mistake can damage the expensive carbon fiber structure. This article, drawing on over a decade of practical experience from our engineers, explains how to safely and efficiently route internal cables on carbon fiber bicycle handlebars, ensuring a smoother and more stylish ride.
Understanding the Importance of Internal Bicycle Handlebar Cable Routing
In modern high-end bicycle builds, internal cable routing is no longer optional but a standard feature that enhances overall riding performance, durability, and sleek aesthetics. Especially on road bikes and mountain bikes, the quality of cable routing directly impacts handlebar control and cable longevity. Compared to exposed cables, internal routing reduces aerodynamic drag and optimizes airflow around the bicycle handlebar, giving your bike a clean, professional look and improved performance on varied terrain.
Why Choose Internal Cable Routing?
Internal cable routing protects cables from damage caused by external friction, dirt, and impacts encountered during rides. This is especially critical for riders using carbon fiber bicycle handlebars, where the lightweight yet sensitive carbon fiber material can crack or suffer damage from sharp edges or repeated abrasion. Additionally, internal routing minimizes cable clutter and “snagging” — a common nuisance known in the cycling community as “wire hang-up” — which can negatively affect shifting precision and brake responsiveness.
Impact on Different Handlebar Types
Different bike handlebar types have varying designs and routing challenges. Flat bars typically allow for straightforward cable paths, favored by beginners and mountain bikers for ease of maintenance and setup. Drop bars, with their complex curved shapes, require more careful planning to ensure cables run smoothly through tight bends without friction or kinks. Professional-grade carbon bicycle handlebars usually have concealed, compact routing channels, demanding specialized tools and expertise for proper installation.
Special Considerations for Cable Routing on Carbon Fiber Bicycle Handlebars
As the dominant material in lightweight handlebars, carbon fiber offers excellent strength-to-weight ratio but requires meticulous cable routing to avoid stress points. Using dedicated cable housing liners is essential to prevent abrasion between cables and the carbon surface. Excessive force or overly long cables can clog internal channels and degrade cable movement efficiency. Leading brands like Specialized and Trek emphasize that routing cables inside a carbon handlebar bicycle is both a science and an art — blending material mechanics knowledge with hands-on experience to maximize performance and durability.
Introduction to Common Bicycle Handlebar Types
Choosing the right bicycle handlebar affects both riding posture and the complexity of internal cable routing. Common types include flat, drop, and specialty handlebars, each presenting unique routing challenges—especially for high-end carbon fiber bicycle handlebars. Proper cable management helps avoid issues like “wire hang-ups.”
Flat Handlebar
Flat bars, common on mountain and commuter bikes, feature a straightforward design allowing simple internal routing with minimal bends—often called an “easy route” in the cycling community. They use standard cable housing, making installation and maintenance easier for beginners and DIYers.

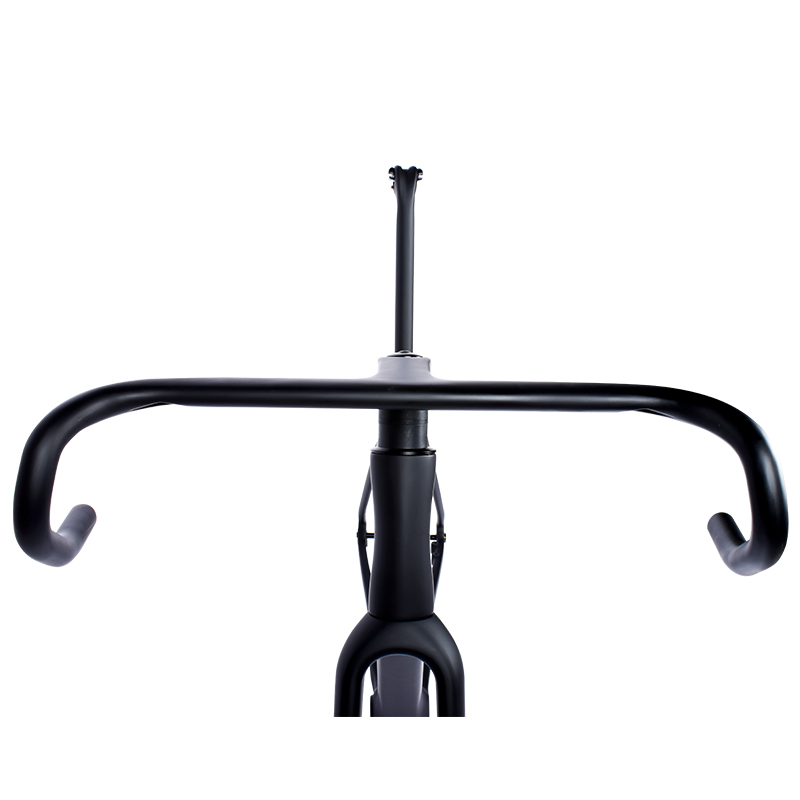

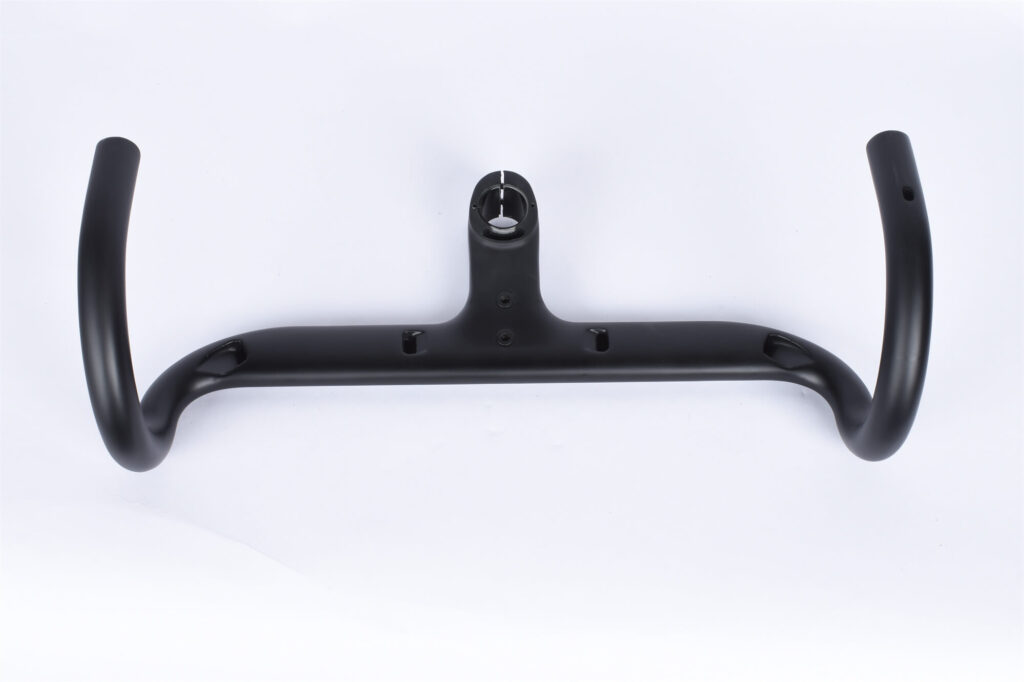

Drop Handlebar
Drop bars, standard on road bikes, have multiple curves offering varied grip positions. Internal routing is more complex—dubbed a “snake route”—requiring smooth cable paths through bends. Carbon fiber drop bars often have dedicated cable channels but need precise cable length and protective sleeves to prevent wear.
Other Specialty Handlebar Designs (Bullhorn, Butterfly)
Bullhorn and butterfly bars, popular on urban and touring bikes, have irregular shapes demanding custom routing solutions. These setups are prone to “wire hang-ups” and require lubricants and high-quality liners. Pros call this “custom cable routing” due to its technical difficulty.
Routing Difficulty Comparison
Flat bars offer the easiest internal routing, ideal for beginners. Drop bars require advanced skills, especially with carbon fiber materials needing extra care. Specialty bars are the most challenging, often needing custom fittings. Mastering internal cable routing is essential for a smooth, safe ride regardless of handlebar type.

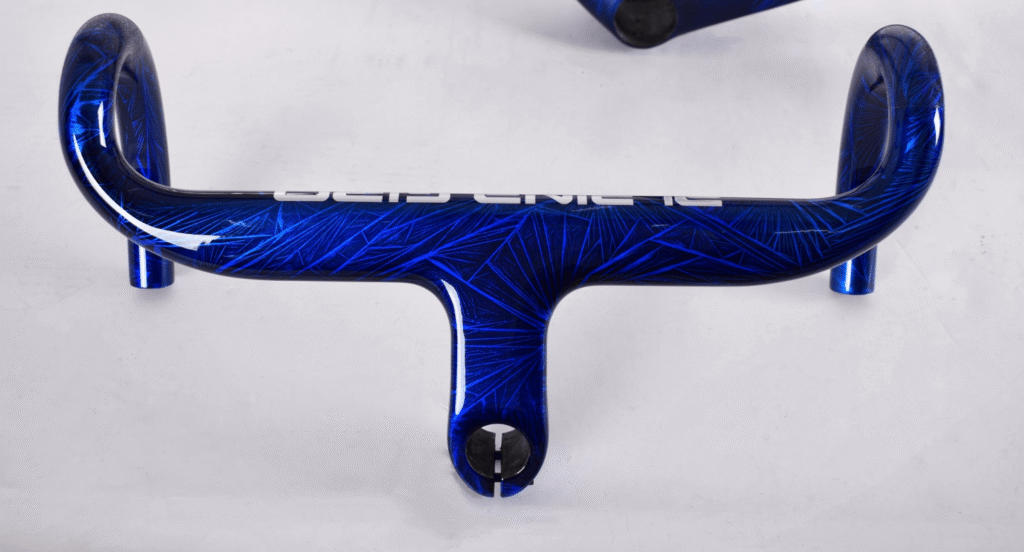

Carbon Bicycle Handlebar Internal Cable Routing Guide
With the growing adoption of carbon fiber in the bicycle accessory market for its lightweight and high-strength properties, mastering professional internal cable routing techniques has become increasingly essential. Carbon fiber handlebars not only represent peak performance but also showcase the skill involved in precise cable management. This guide provides an in-depth look at the structural features of carbon fiber handlebars, key precautions to protect cables during routing, and professional tools and techniques commonly used by experienced engineers.

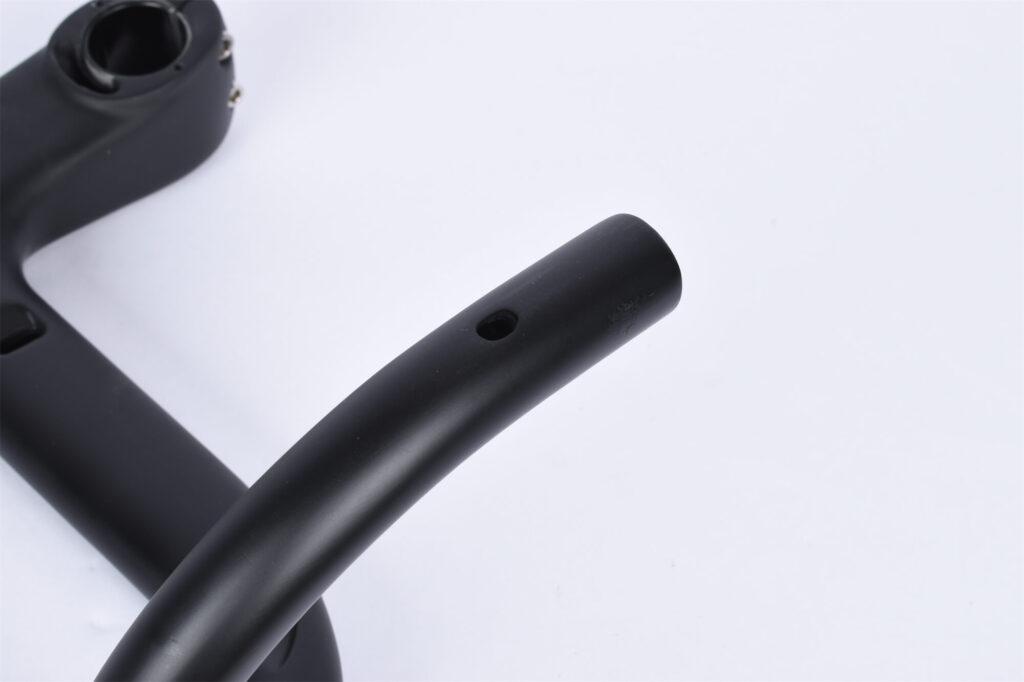

Carbon Fiber Handlebar Structure and Material Characteristics
Carbon fiber bicycle handlebars are crafted from multiple layers of high-strength carbon fiber fabric bonded with epoxy resin, delivering an outstanding strength-to-weight ratio and excellent fatigue resistance. Due to the laminated nature of the material, internal cable routing channels tend to be very compact and highly sensitive to stress concentration. Leading European and American brands such as Specialized and Canyon incorporate dedicated internal cable routing channels in their carbon fiber handlebars to ensure safe cable passage without compromising structural integrity.
How to Avoid Cable Damage to Carbon Fiber Materials
The biggest challenge in internal cable routing is preventing wear and stress concentration on the carbon fiber surface. Using specialized cable housing liners to isolate cables from direct contact with the carbon fiber helps prevent “chafing” and abrasion. Additionally, cables should never be forcefully pushed or pulled during routing to avoid causing microcracks. In professional workshops across Europe and the US, technicians refer to this meticulous process as “cable babysitting,” highlighting the careful attention required when handling carbon fiber tubes.
Cable Routing Tools and Techniques Recommended by Professional Engineers
Accurate internal cable routing demands precise tools. Common tools include slender cable guide rods, soft internal lining brushes, and high-quality cable lubricants. The process typically begins with using guide rods to align and clear the internal cable path, followed by applying lubricant to minimize friction. This ensures cables slide smoothly through the carbon fiber handlebar. Many top technicians employ the “zip tie trick”—using nylon cable ties to secure cables during routing—to prevent slipping or jamming, enhancing both installation efficiency and safety.
Detailed Steps: How to Route Internal Cables on Carbon Fiber Bicycle Handlebars
Routing internal cables on high-end carbon fiber bicycle handlebars is a precise and technical task, requiring careful tool preparation, accurate routing path planning, and meticulous execution. This guide provides a step-by-step breakdown of the entire internal cable routing process for carbon fiber bicycle handlebars, incorporating industry terminology to help both DIY enthusiasts and professional mechanics improve efficiency and quality.
Preparation: Tools and Materials
Proper preparation is essential. Common tools include slender cable guide rods, soft internal lining brushes, premium cable lubricants, nylon zip ties, and specialized cable housing liners. These tools and materials ensure smooth cable movement inside carbon fiber handlebars while minimizing the risk of material damage. As many European and American professionals say, “Good tools are half the battle,” especially when working with delicate carbon fiber components.
Cable Routing Path Planning and Inspection
Planning the cable routing path before installation is critical to prevent cable jams or “wire hang-ups.” Technicians usually perform a “dry run” using a guide rod to check that all bends and curves inside the handlebar’s internal conduit are free from obstructions. Precise measurement of cable length and allowance for slack are also key to successful routing and long-term cable performance.
Actual Cable Routing Procedures
During routing, guide rods help thread the cables smoothly through the planned pathway. Applying cable lubricant reduces friction, facilitating easy cable passage. The “zip tie trick”—securing cable ends with nylon ties—prevents cables from slipping or tangling during installation. Maintaining moderate tension during routing avoids damage to the carbon fiber internal channels. After routing, all cable connections should be inspected to confirm optimal shifting and braking function.
Common Problems and Solutions
Typical issues include cable jams, blocked conduits, and cable wear. For jams, technicians recommend pushing and pulling the guide rod several times while applying lubricant to ease friction. Severe blockages may require disassembly, path re-inspection, or replacement of internal liners. Regular cable inspection and timely replacement—often referred to as “preventive maintenance” in the cycling community—are vital for safe and reliable performance.
Benefits and Maintenance Tips of Internal Cable Routing
Internal cable routing is a key feature of modern high-end carbon fiber bicycle handlebars, improving performance and simplifying maintenance. Proper routing combined with regular upkeep extends cable life and ensures safe riding.
Enhanced Aesthetics and Aerodynamics
Hiding cables inside the handlebar creates a clean, streamlined look—known as a “clean cockpit” in US and EU cycling circles—and reduces drag, boosting aerodynamic efficiency. This design is vital for competitive road and mountain bikes, favored by top brands like Cervélo and Specialized.
Protect Cables and Extend Life
Internal routing shields cables from wear, corrosion, and damage caused by weather and rough terrain. It prevents issues like “wire hang-up” and “cable fraying,” lowering repair needs. Professionals recommend using quality cable liners and lubricants to maximize cable durability.
Regular Inspection and Maintenance
Despite its benefits, internal routing requires periodic checks—every 500 to 1000 miles—to spot wear, looseness, or dry cables. Following “preventive maintenance” practices with timely part replacement keeps shifting and braking reliable. This is especially important for carbon fiber handlebars, where minor damage can affect safety.
Choose the Right Bicycle Handlebar and Professional Internal Cable Routing for a High-Performance Riding Experience
In today’s high-performance bike market, selecting the right handlebar and mastering professional internal cable routing are essential to optimize performance and ride quality. Whether it’s the simple flat handlebar, the more complex drop handlebar, or a custom design, each demands unique routing skills.
For carbon fiber handlebars, careful internal routing prevents issues like “wire hang-up” and “chafing,” extends cable life, and enhances aerodynamics—achieving the “clean cockpit” look prized by pro riders in Europe and the US.
Using the right tools, planning routes meticulously, and applying techniques like the “zip tie trick” and “cable babysitting” help riders and mechanics maximize carbon handlebar performance, ensuring reliable shifting and braking. Brands like Cervélo and Specialized prove that top-tier internal routing can be a race-winning advantage.
In short, the right handlebar combined with precise routing and regular maintenance creates a sleek, durable setup that lets riders tackle any terrain with confidence.
