As the global carbon fiber bicycle market continues to expand, Chinese carbon gravel bike frames are evolving from “OEM products” to a trusted performance choice for international riders. According to a Verified Market Research report, the carbon fiber gravel bike market was estimated to be worth $519 million in 2023 and is projected to grow to $691 million by 2031. Data from HTF Market Insights indicates that the carbon fiber frame market is expected to grow at a compound annual growth rate of 11.9%.
Amid this surge, terms like “China carbon gravel frame,” “Chinese gravel carbon frame,” and “China-made carbon gravel frame” reflect a renewed appreciation for “Made in China” among riders worldwide. After more than a decade of technological advancement, breakthroughs achieved by Chinese factories in carbon fiber layup, vacuum curing, non-destructive testing, and mold precision have made “China carbon fiber gravel frame” no longer simply a symbol of “value for money,” but rather a symbol of traceable and stable craftsmanship.
This article will give you an in-depth understanding of the entire process of the creation of a Chinese carbon fiber gravel bike frameset, from design to painting, from testing to assembly, revealing the technical logic behind the “jargon”, and how the Chinese carbon gravel frameset goes from the factory to the world.
The Rise of the Chinese Carbon Gravel Bike Frame
Carbon fiber technology is redefining the boundaries of cycling freedom. Over the past decade, gravel bikes have evolved from a niche off-road sport to one of the fastest-growing segments globally. According to Cycling Industry News, sales of gravel bikes have increased by over 35% in the past five years, with demand for high-end carbon fiber frames being particularly strong. Today, Chinese carbon gravel bike frames are no longer just an alternative option; they represent a new benchmark for balancing performance and affordability.
The appeal of carbon fiber lies in its ability to precisely tune frame stiffness and compliance through varying layup angles and resin ratios. This allows riders to maintain higher pedaling efficiency on gravel roads while reducing vibration accumulation—commonly known in the industry as “compliance tuning.” These material properties make Chinese carbon fiber gravel frames a popular choice for riders seeking a balance between lightweight and comfortable riding.
The Carbon Fiber Revolution Driven by Global Cycling Trends
The popularity of gravel cycling is no accident. As riders shift from pure road racing to mixed-terrain riding, the “one bike for all roads” concept has become mainstream. Compared to aluminum or steel frames, carbon fiber can reduce weight by 20–30% while maintaining comparable stiffness, while also providing superior vibration damping.
In-house engineers often say, “Good carbon fiber speaks for itself”—a reference to the energy transfer efficiency of high-modulus fiber under load. Today, more and more riders are choosing China-made carbon gravel frames, not only for their lightness but also for their ability to “read” road feedback.
China’s Emerging Role in the Carbon Fiber Bicycle Industry Chain
In the past, China’s manufacturing was more often viewed as a “contract manufacturer,” but it is now increasingly becoming a source of innovation. Thanks to a stable upstream carbon fiber supply, mature automated layup technology, and the widespread use of EPS in-mold molding (commonly known as “foam plug molding”), China’s carbon gravel frames have reached internationally leading levels of consistency and precision.
Currently, many domestic factories utilize five-axis CNC mold machining with an accuracy of ±0.05mm, known in the industry as “close mold tolerance,” which is crucial for ensuring frame geometry accuracy and structural strength. At the same time, domestic engineers are optimizing layup strategies through finite element analysis (FEA) and fatigue testing databases, ensuring that each China-made carbon gravel frame achieves the ideal balance between strength and weight.
These transformations have transformed Chinese gravel carbon frames from a “silent partner” in the days of OEM manufacturing to a trusted strategic supplier for global brands. Its rise is not only a reflection of manufacturing prowess, but also the result of the integration of carbon fiber craftsmanship and cycling culture.
From Design to Mold: The Birth of a Chinese Carbon Gravel Frame
The creation of every Chinese carbon gravel bike frame is like a pursuit of a balance between performance and soul. For engineers, a frame is more than just a combination of geometric angles; it’s an art form that balances aerodynamics, structural strength, and riding experience. Whether it’s a gravel racer focused on efficiency or a weekend warrior craving adventure, a good Chinese carbon fiber gravel frame must possess three core qualities: precise geometry, a balance of rigidity and flexibility, and multi-terrain adaptability.
How Engineers Define the “Soul” of a Gravel Frame
The first step in design often begins with geometry. Engineers will repeatedly refine the combination of reach, stack, head tube angle, and chainstay length to fine-tune the vehicle’s stability and handling. For example, a longer wheelbase provides greater stability at speed, while a wider head angle gives the rider a more responsive steering feel on gravel roads.
Tire width compatibility is also part of the “soul.” Most currently made-in-China carbon gravel frames support tires wider than 45C, accommodating wider riding conditions. From a comfort perspective, the natural damping properties of carbon fiber provide riders with a noticeable “road buzz filtering” on long gravel roads—this is often referred to among engineers as “compliance tuning.”
A veteran craftsman uses the jargon “Geometry defines character, layup defines soul.” This phrase sums up the core philosophy of gravel frames: design imparts character, structure determines experience.
Layup Design & Structural Reinforcement
In carbon fiber frame manufacturing, layup is the most challenging step. Unlike road or mountain bikes, gravel frames face more complex forces: they must withstand the impact of downhill descents while also ensuring comfortable cruising. Engineers typically combine high-modulus fibers (such as T800) with medium-modulus fibers (such as T700) to create a graded stiffness structure through a mixed layup.
During the production of carbon fiber gravel frames in China, engineers utilize CFD (Computational Fluid Dynamics) for aerodynamic optimization and FEA (Finite Element Analysis) to analyze stress concentration areas at frame nodes. For example, at the bottom bracket and seat tube junction, carbon fiber is typically added with a ±45° angle to improve torsional stiffness and fatigue life.
| Carbon Fiber Type | Layup Position | Stiffness Level | Function | Jargon/Term |
|---|---|---|---|---|
| T800 | Bottom Bracket | High | Torsional Rigidity | feathering |
| T700 | Seat Tube | Medium | Compliance Tuning | smoothing the layup tail |
| T800/T700 Mix | Top Tube | High/Medium | Strength & Comfort Balance | – |
The layup process is jargon-speak for creating a smooth transition between the edges of the carbon fiber to avoid sudden stress changes. Another common term is “smoothing the layup tail,” meaning that detailed manual lamination is used to achieve more uniform stress distribution. These subtle operations are crucial indicators of a manufacturer’s professionalism.
Mold Manufacturing and Molding Process
Molds are crucial for defining form and precision. Currently, most carbon gravel frame manufacturers in China use CNC five-axis machining to create high-precision aluminum molds, with geometric errors controlled within ±0.05 mm. The coating material on the mold surface (commonly known as “release oil”) prevents the carbon fabric from being pulled during the molding process.
There are two mainstream molding methods: Monocoque (integrated molding) and Tube-to-Tube (tube splicing). The former is completed in a single press and offers higher rigidity; the latter facilitates geometric customization and is commonly used for high-end custom frames.
As for the internal mold system, the industry’s commonly used “EPS bladder” (foam internal mold) and “PU core” (polyurethane internal mold) technologies provide more stable internal pressure during high-temperature curing, resulting in a smoother, wrinkle-free frame interior. This is commonly referred to in the industry as “clean foam mold plugging,” referring to a mold quality that is free of residue and minimal bubbles on the frame’s interior.
Finally, each China-made carbon gravel frame undergoes over ten processes, including vacuum bag pressing, heat curing, demolding, and post-processing. This is more than just industrial manufacturing; it’s more like a “carbon fiber sculpture.”
Inside the Factory: The Step-by-Step Process of a Chinese Carbon Gravel Bike Frame
A Chinese carbon gravel bike frame typically undergoes over 20 steps from raw materials to finished product, each of which directly impacts its ultimate performance and longevity. A good frame isn’t just made; it’s proven. With rigorous testing standards, automated processes, and a continuously evolving QC system, Chinese factories are making Chinese carbon fiber gravel bike frames a symbol of stable and replicable quality in the global market.
Raw Material Inspection and Warehousing Standards
The manufacturing process begins with the carbon fiber cloth. Before entering warehouse, each batch of carbon fiber cloth is tested for tensile strength, resin content, and fiber orientation. Engineers use a tensiometer to measure the stability of the carbon fiber tow and analyze the resin content using DSC (differential scanning calorimetry) to ensure that the post-curing fiber volume fraction is within the specified range (typically 60–65%).
Fiber orientation is particularly critical. Deviations exceeding ±2° can affect the overall stiffness distribution. A common saying in the industry is, “If the carbon fiber is laid 2 degrees off, the ride will be completely different.” This jargon highlights the importance of structural symmetry.
Each roll of carbon fiber is labeled with a QR code for traceability, ensuring that the source and batch of each Chinese carbon gravel frame can be traced back throughout its production.
Detailed Explanation of the Frame Forming Process
The entire production process unfolds like a meticulously orchestrated symphony. Beginning with layup, technicians stack the carbon fiber layer by layer according to the layup schedule, aligning every angle and orientation with the force path. After layup, the frame enters a vacuum bag system for evacuation and pressurization, before being placed in a constant-temperature curing oven for high-temperature molding.

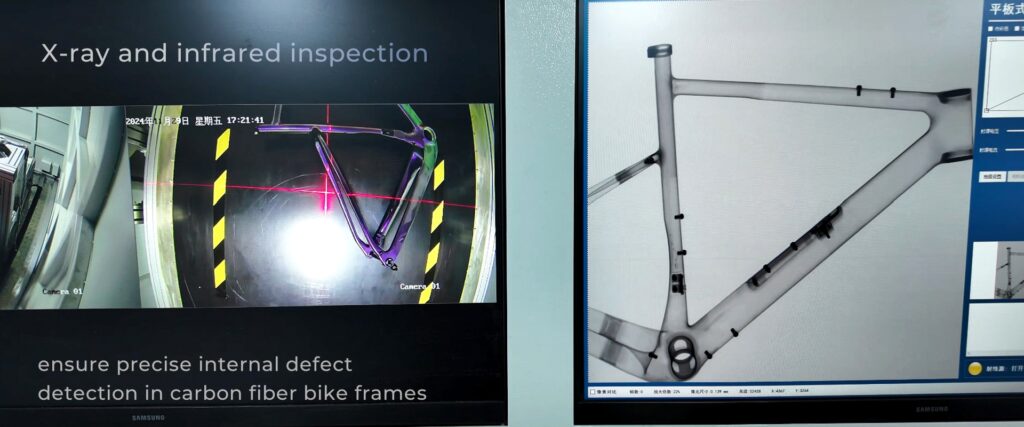

After demolding, the frame undergoes manual deburring, followed by polishing and inspection. X-ray non-destructive testing and ultrasonic scanning (UT scanning) are used to detect internal bubbles and delamination defects.
On the Chinese production line, this process is known as “bone physiognomy” (a metaphor for X-ray examination) and is a critical step in determining whether a Chinese carbon fiber gravel bike frameset meets standards. Semi-finished frames that pass inspection are affixed with an internal identification code and enter the next surface treatment process.
Painting and Surface Treatment
The surface determines the visual appearance and also represents the strength of the craftsmanship. Different carbon grains, such as UD, 3K, and 12K, actually correspond to different weave structures. UD (Unidirectional) represents unidirectional fiber placement, resulting in a clean appearance and lightweight; 3K and 12K are traditional weave textures, offering stronger interlayer bonding and greater legibility.
In the paint booth, the frames undergo multiple processes, including painting, decal transfer, and clear coat. This is known in jargon as a “sandwich,” meaning a protective layer is added between the basecoat and clearcoat to enhance UV and scratch resistance.
Some high-end Chinese carbon gravel frames even utilize automated electrostatic spraying and low-temperature curing to ensure the optimal balance between aesthetics and weight.
Quality Inspection and Ride Test
Once the frame has completed surface treatment, it enters the most critical testing phase. The QC team conducts five major tests on each Chinese carbon gravel frame:
- Static Load Test: Verifies the stiffness of the head tube, bottom bracket, and rear triangle.
- Fatigue Test: Simulates over 100,000 stress cycles.
- Drop Ball Test: Evaluates impact resistance.
- Torsion Test: Ensures uniform and symmetrical load distribution.
- Road Simulation: Simulates 1,000 kilometers of use on a vibration table.
Each test generates a record file, often referred to by engineers as a “carbon passport,” which is used to trace production parameters. Only products that pass all verifications proceed to Final Inspection. Final Inspection includes visual inspection for defects, dimensional re-testing, and trial assembly to ensure that each China-made carbon gravel frame meets the tolerances required for complete vehicle assembly.
Finally, these frames that pass these rigorous tests are packed and shipped worldwide. Behind every Chinese carbon gravel frameset are dozens of polishing, testing and human-machine collaboration results.
Why More and More Riders Are Choosing Chinese Carbon Gravel Framesets
Driven by the diverse demands of long-distance cycling, off-road adventures, and daily commuting, more and more riders are turning their attention to Chinese gravel carbon frames. In the past, the term “Made in China” was often associated with OEM manufacturing. Today, Chinese carbon fiber factories are redefining the value proposition of the global cycling market with their stable processes, transparent quality systems, and international service standards.
Balance between Value and Performance
One of the core reasons for choosing a China-made carbon gravel frame is that it strikes a rare balance between performance and price.
Using the same T700 or T800 carbon fiber, similar layup design, and curing processes, Chinese-made frames often offer stiffness, weight, and impact resistance comparable to comparable high-end European and American brands.
The main difference lies in the cost structure.
Foreign brands’ costs are primarily focused on brand premiums, marketing, and overseas warehousing, while the advantage of Chinese factories lies in their integrated design, mold making, manufacturing, testing, and packaging. This vertically integrated model allows Chinese carbon gravel framesets to offer a complete performance experience at a more reasonable price.
Industry jargon: “light yet tough,” embodies the intuitive evaluation of Chinese carbon frames by many international riders.
Quality Control Upgrades and Internationalization of After-Sales Systems
Earlier, Chinese carbon frames were considered to have inconsistent quality control. In recent years, this impression has been rapidly changing. Many leading manufacturers have adopted the ISO 4210 cycling safety standard, the EN testing system, and established their own fatigue and impact laboratories.
Finished frames must undergo X-ray nondestructive testing and multi-load stress testing before leaving the factory to ensure batch-to-batch consistency.
Furthermore, with the rise of cross-border e-commerce and direct-to-consumer (D2C) brands, Chinese manufacturers have begun to develop more comprehensive international after-sales systems. Includes:
- Online Warranty Registration
- Global Spare Parts Direct Shipping Service
- User Feedback-to-QC System
This means that after purchasing a China carbon gravel frame, users no longer have to worry about slow after-sales response or communication barriers. More and more manufacturers are partnering with overseas assemblers and repair shops to establish localized technical support networks.
Real User Feedback and Long-Term Performance
True word-of-mouth comes from long-term riding and user sharing.

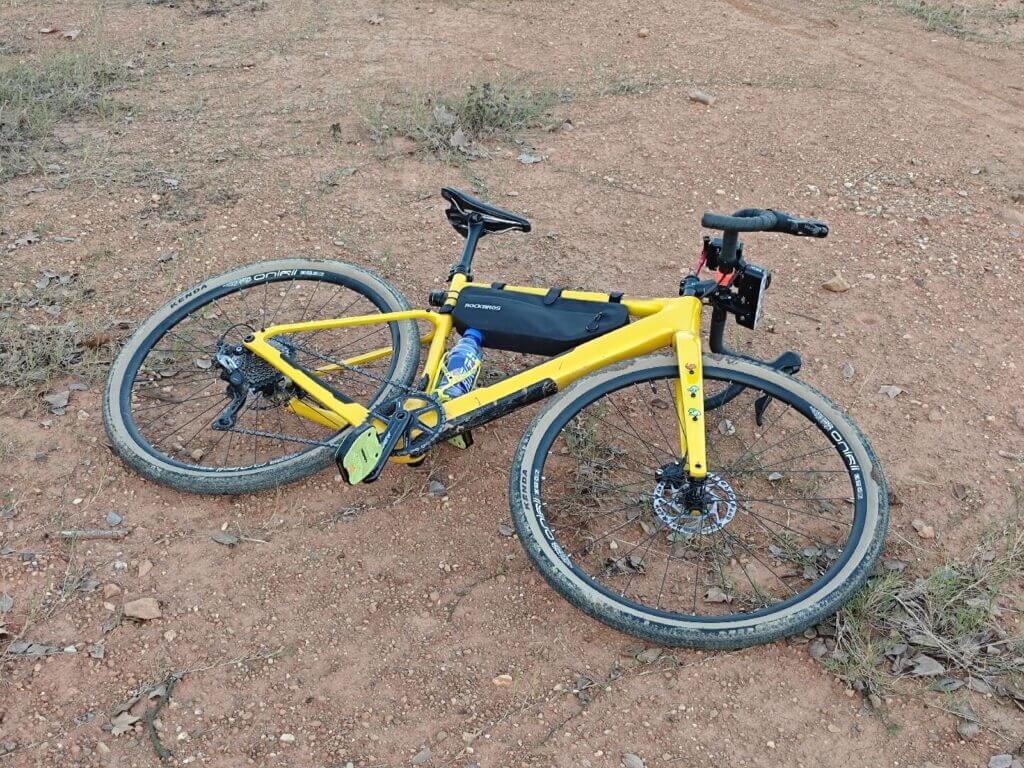

On major gravel forums and social media platforms, you can see an increasing number of real-world ride reports about Chinese carbon gravel frames.
Many users report that after thousands of kilometers of testing on gravel roads and rain-soaked mud, the frames maintain their structural integrity, stable finish, and flawless geometry.
Some brands have even garnered recognition from experienced enthusiasts and independent review channels, often using terms like “underrated monster” or “the best value build base.”
These opinions aren’t accidental, but rather stem from the technology and quality control principles accumulated over a long period of manufacturing. For riders seeking a lightweight yet reliable gravel build, choosing a China-made carbon gravel frame is no longer a compromise, but a rational choice.
The Transformation from “Made in China” to “Worldwide Trust”
Chinese carbon fiber gravel frames have completed their transformation from OEM to innovative manufacturing. The creation of a Chinese carbon gravel bike frame integrates processes such as geometry tuning, compliance layup, non-destructive testing (X-ray/UT scanning), and a clear coat sandwich, with each step demonstrating stringent quality standards.
With the promotion of carbon fiber recycling technology and sustainable manufacturing, Chinese carbon fiber gravel bike frames not only offer high performance and cost-effectiveness, but also increasingly meet global green supply chain standards. Rigorous QC processes, multi-point fatigue and impact testing, and long-term rider feedback have proven that Chinese gravel carbon frames have achieved internationally trusted levels of lightweight, compliance, and geometric precision.
From the “foam plugs” and “mold opening butter line” to the comprehensive traceability system (carbon passport), every detail demonstrates the expertise and reliability of Chinese manufacturing, allowing riders to experience the value of technology and trust with every ride.
